DTC P0710, P0712, P0713: Transmission Fluid Temperature Sensor "A" Circuit Low/High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

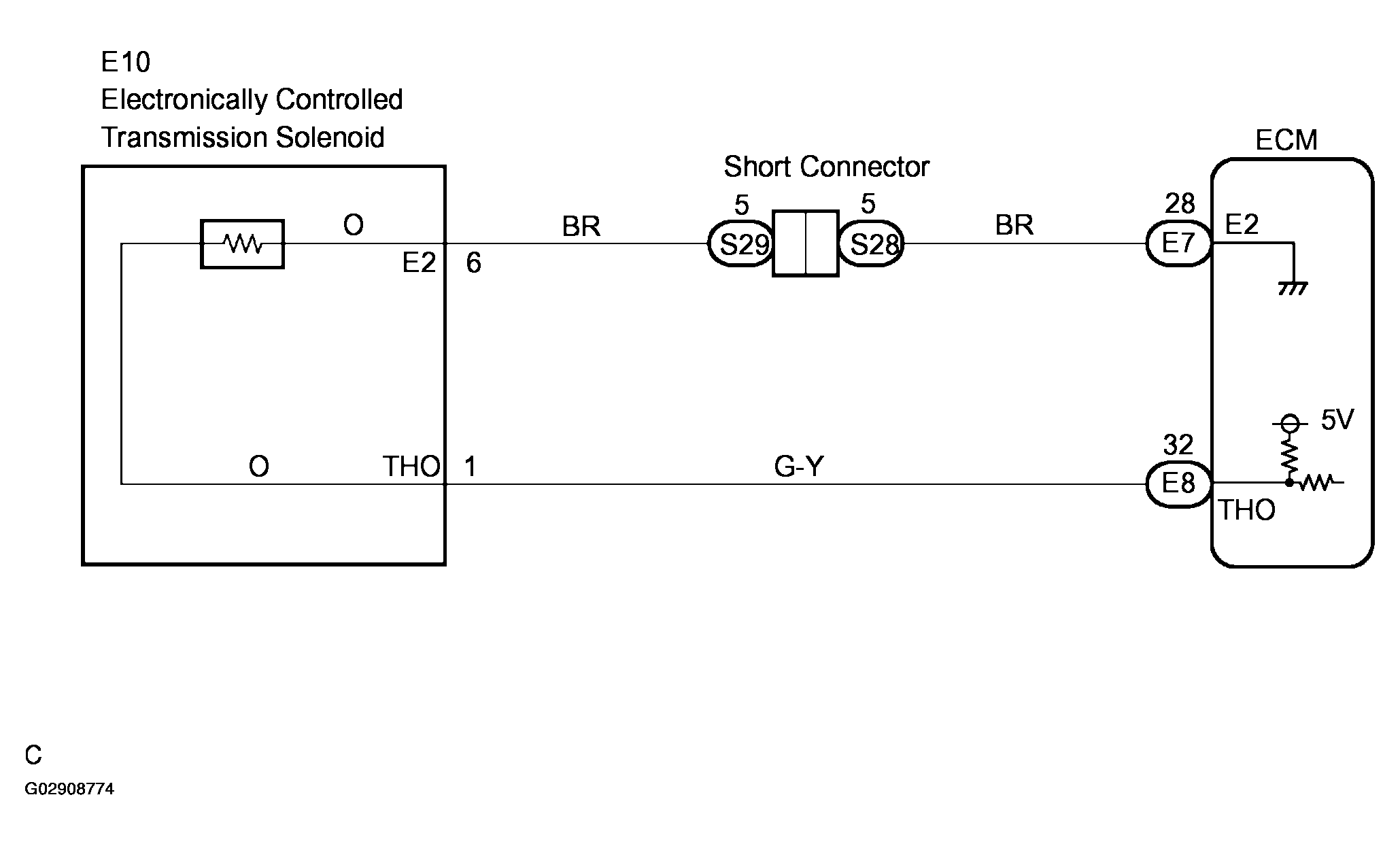

Fig 1: DTC P0710 Transmission Fluid Temperature Sensor Wiring Diagram
G02908774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
