DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

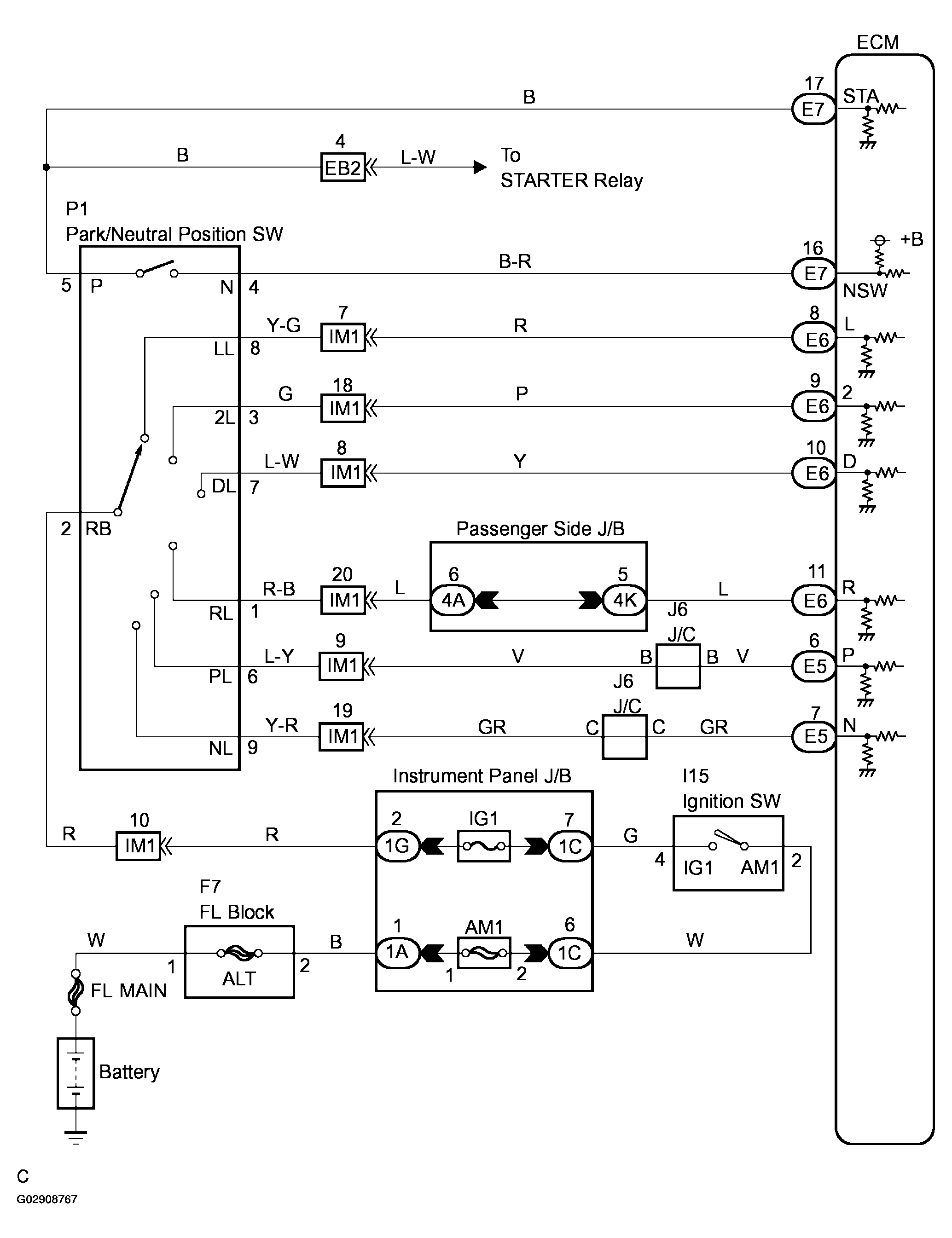

Fig 1: DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) Wiring Diagram
G02908767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
