Circuit Description

WARNING: This page is about a different variant/trim than selected.

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

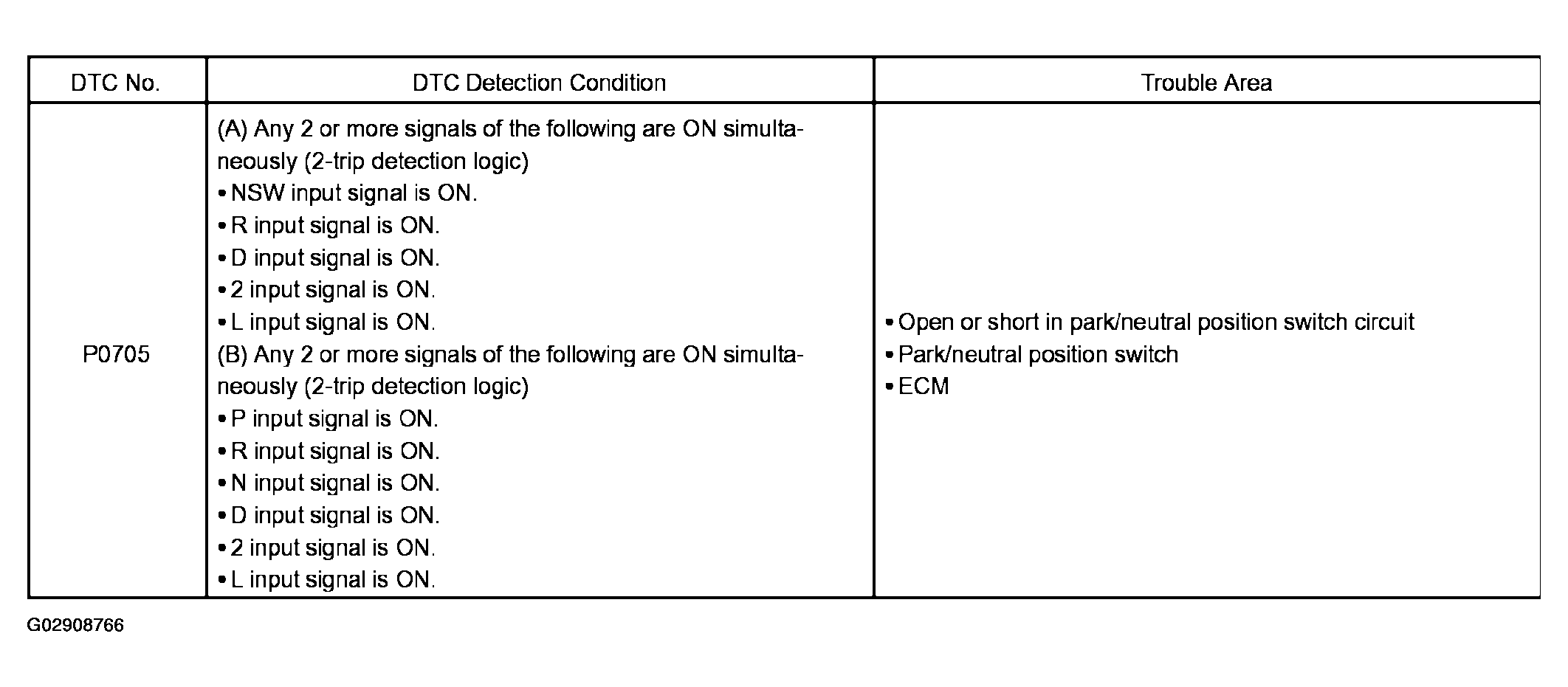

Fig 1: DTC Trouble Area Chart
G02908766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
