Section 15 (Abs Speed Sensor Rear LH (4WD)): Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE DECK TRIM SIDE PANEL ASSY LH (See  REPLACEMENT  )
2. REMOVE REAR WHEEL
3. REMOVE SPEED SENSOR REAR LH
   1. Disconnect the speed sensor connector.
      NOTE: Be careful not to damage the wire harness.

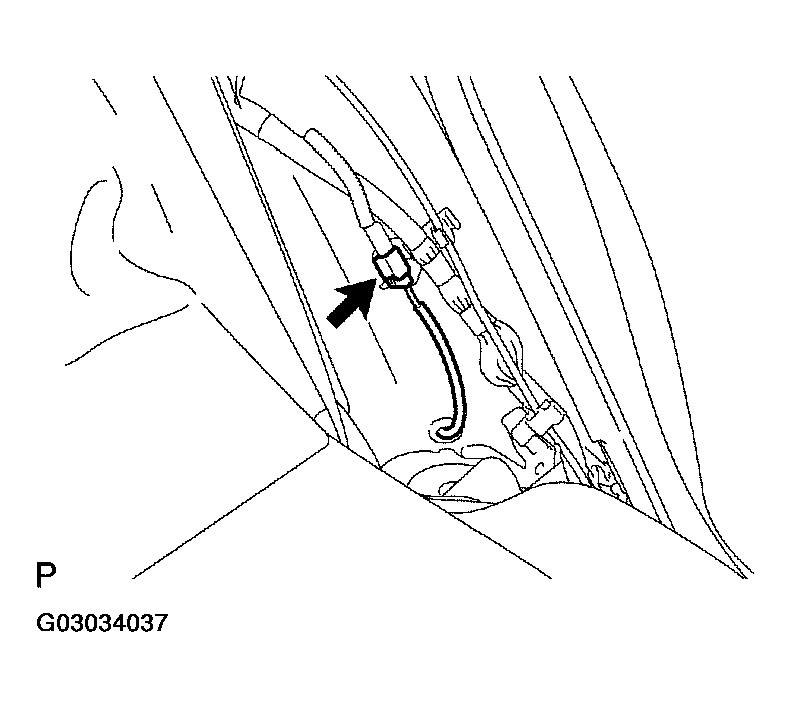

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Pull out the sensor wire harness with the grommet.
      NOTE: Do not pull sensor wire.
   3. Remove the 2 bolts holding the sensor harness from the body and the shock absorber assy.

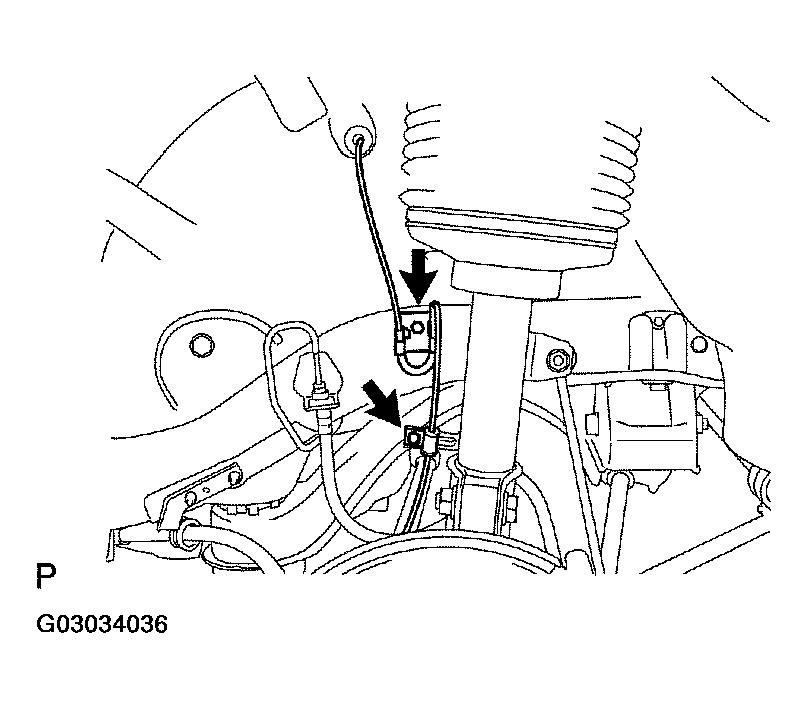

      Fig 2: Removing Bolts Holding Sensor Harness From Body And Shock Absorber Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and the speed sensor rear.
      NOTE: Prevent foreign matter from attaching to the sensor tip.

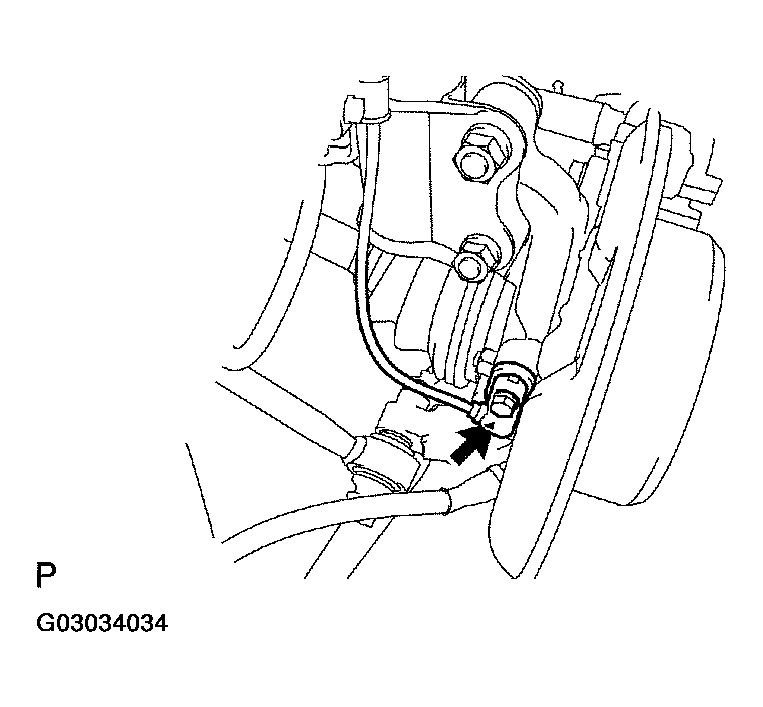

   Fig 3: Removing Speed Sensor Rear Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR REAR LH
   1. Install the speed sensor rear with the bolt.

      Torque: 8.0 NVm (82 kgfVcm, 71 in.Vlbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 4: Installing Speed Sensor Rear Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the sensor harness clamps with the 2 bolts to the body and the shock absorber assy.

      Torque: 5.0 NVm (51 kgfVcm, 44 in.Vlbf)

      NOTE: Do not twist the sensor wire when installing the sensor.
   3. Push in the sensor wire harness with grommet.
      NOTE: When grommet is set to body, pull the grommet. Do not pull sensor wire.

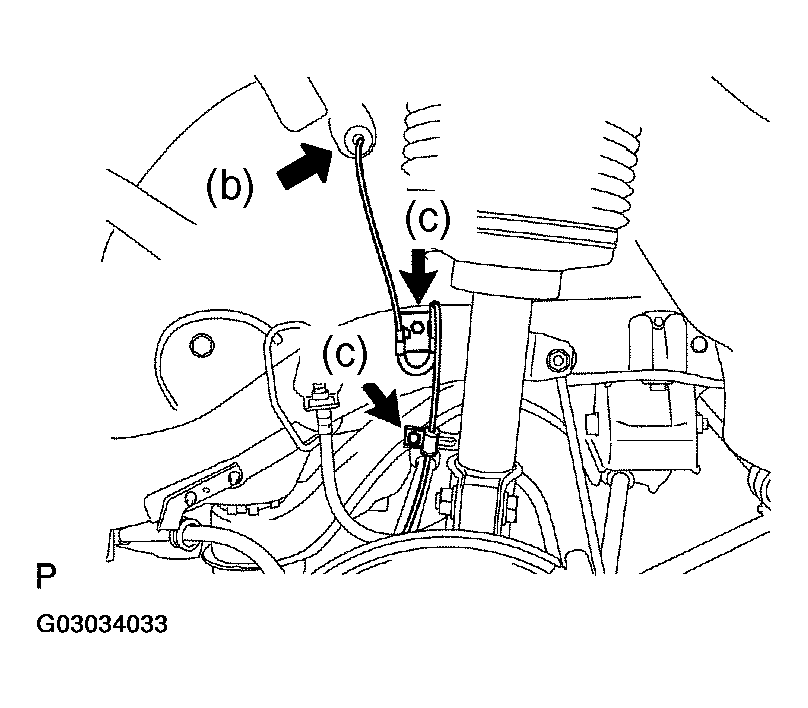

      Fig 5: Installing Sensor Harness clamps With Bolts To Body And Shock Absorber Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor connector.
   Fig 6: Connecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL REAR WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

6. INSTALL DECK TRIM SIDE PANEL ASSY LH
7. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  )
