Location Of Plastic Parts

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

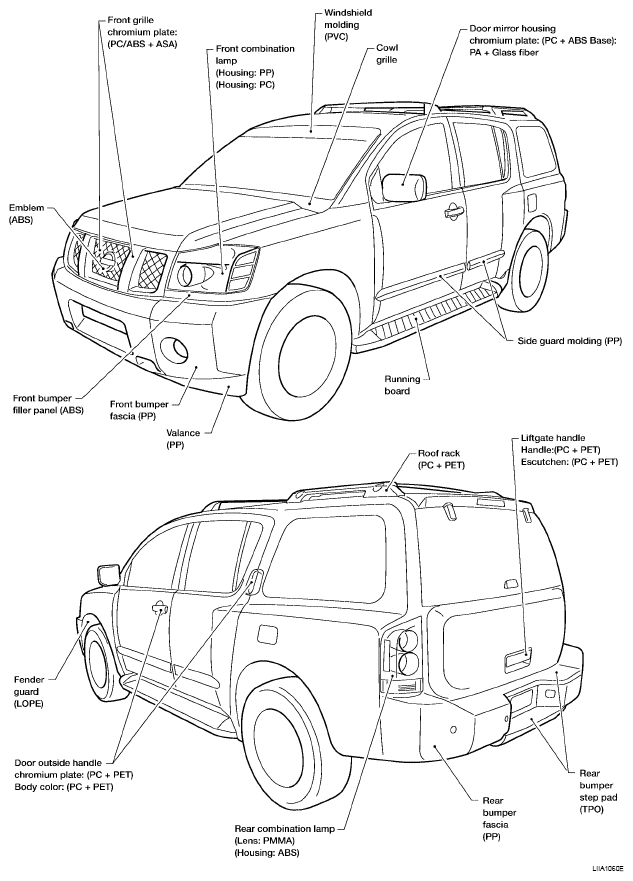

Fig 1: Locating Vehicle Plastic Parts (Exterior)

Courtesy of NISSAN NORTH AMERICA, INC.

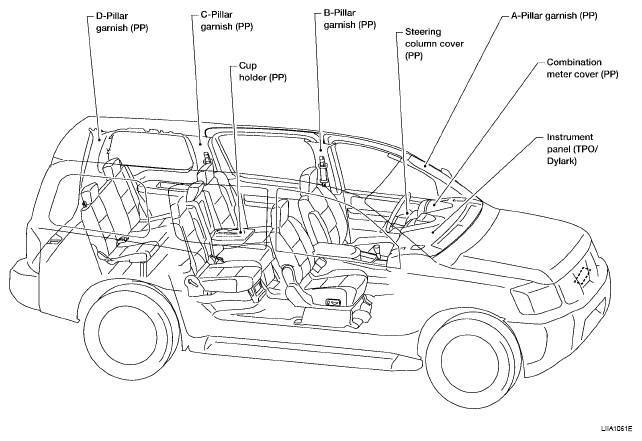

Fig 2: Locating Vehicle Plastic Parts (Interior)

Courtesy of NISSAN NORTH AMERICA, INC.
