Section 934 (Warning Chime System)
>>
System Description
>>
Warning Chime System
>>
Seat Belt Warning Chime
>>
SEAT BELT WARNING CHIME: System Diagram
SEAT BELT WARNING CHIME: System Diagram
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

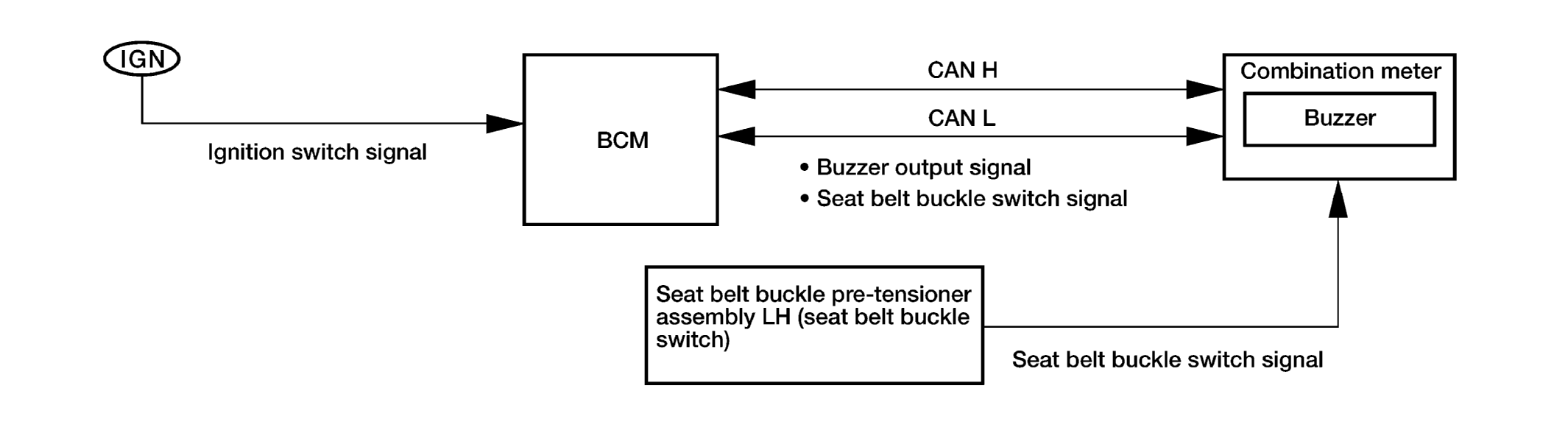

Fig 1: Seat Belt Warning Chime - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
