KEY WARNING CHIME (WITHOUT INTELLIGENT KEY): Component Parts Location
KEY WARNING CHIME (WITHOUT INTELLIGENT KEY): Component Parts Location
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

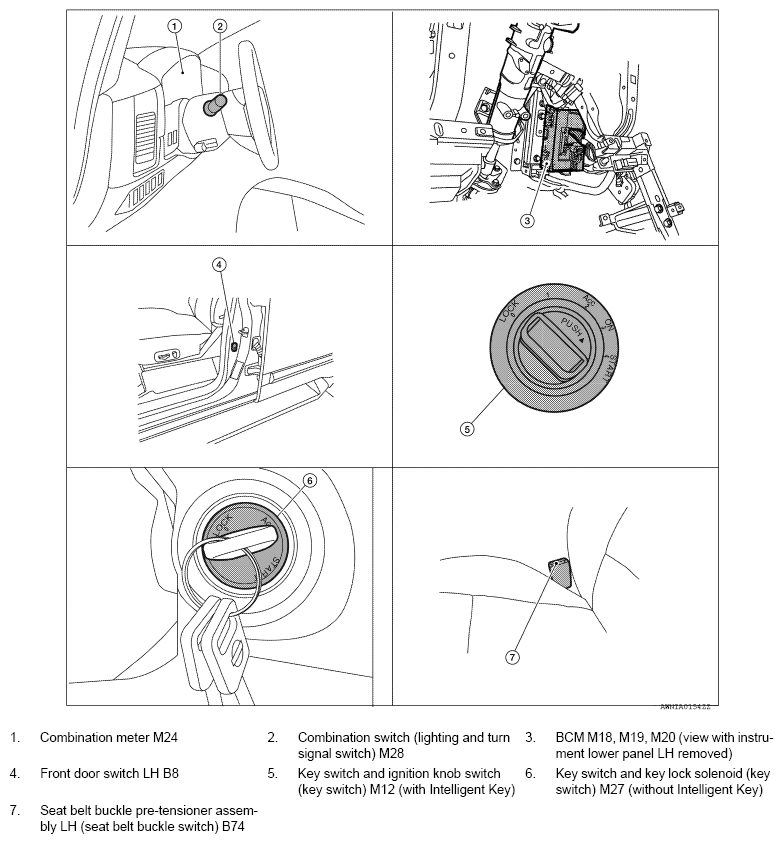

Fig 1: Key Warning Chime (Without Intelligent Key) Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
