Section 934 (Warning Chime System)
>>
System Description
>>
Warning Chime System
>>
Key Warning Chime (With Intelligent Key)
>>
KEY WARNING CHIME (WITH INTELLIGENT KEY): Component Parts Location
KEY WARNING CHIME (WITH INTELLIGENT KEY): Component Parts Location
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

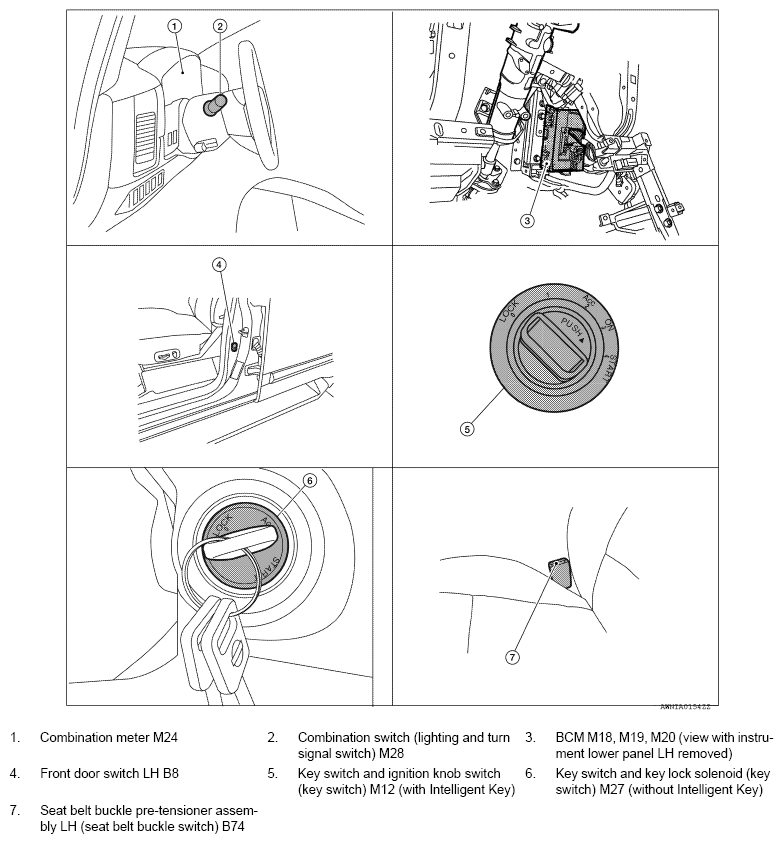

Fig 1: Key Warning Chime (With Intelligent Key) Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
