Gap Adjustment
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

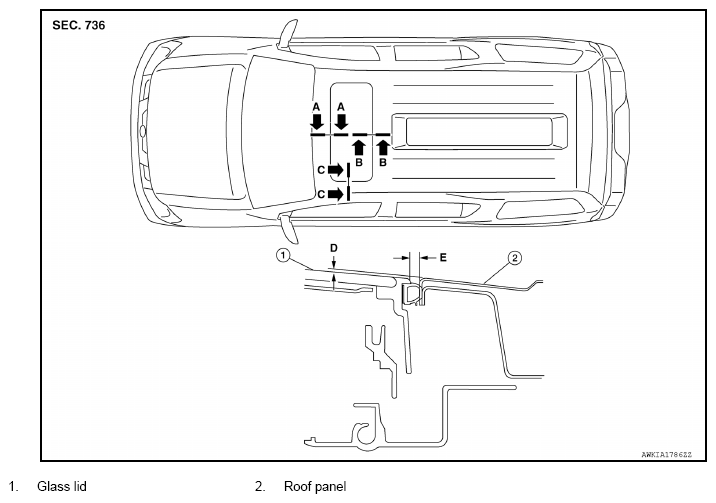

| Portion | Measurement | Standard | Difference (MAX) | |
|---|---|---|---|---|
| A-A | D | Surface height | 0 (0.000) | ±1.5 (0.059) |
| A-A | E | Clearance | 16.2 (0.638) | ±0.7 (0.028) |
| B-B | D | Surface height | 0 (0.000) | ±1.5 (0.059) |
| B-B | E | Clearance | 17.3 (0.681) | ±0.7 (0.028) |
| C-C | D | Surface height | 0 (0.000) | ±1.5 (0.059) |
| C-C | E | Clearance | 16.7 (0.657) | ±0.7 (0.028) |
NOTE:
If any gap or height difference between glass lid and roof panel is found, check glass lid fit and adjust as follows:
