Exploded View

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

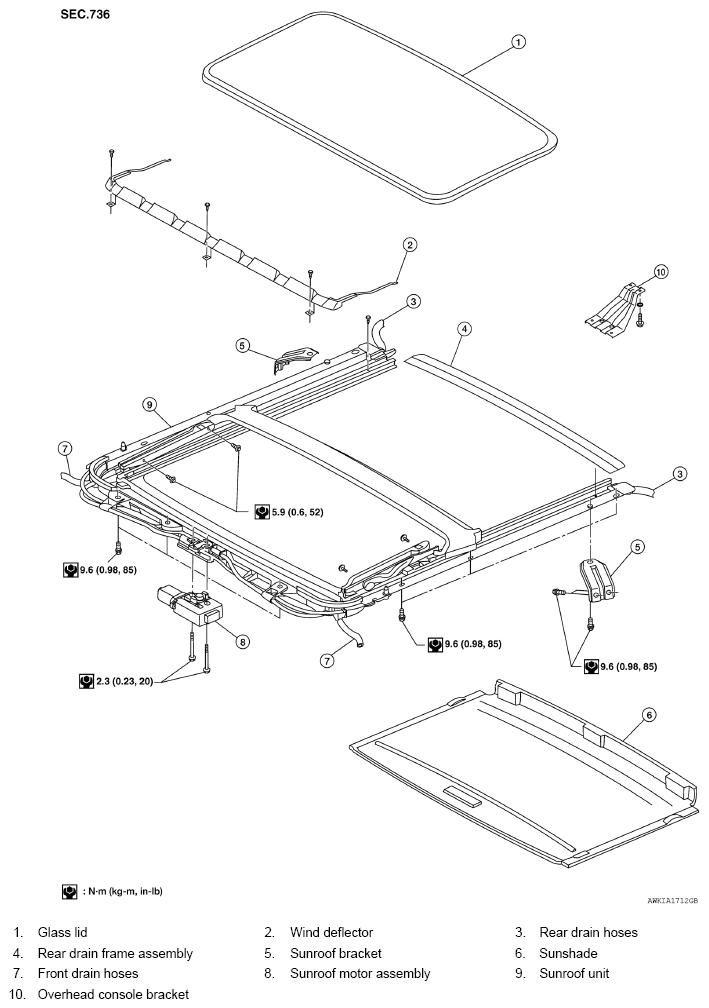

Fig 1: Exploded View Of Sunroof System With Torque Specifications

G08690940

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid. Then, after removal, do not move the sunroof motor assembly.
After installing the sunroof unit and glass lid, check gap adjustment to ensure there is no malfunction.

NOTE:

After any adjustment, check sunroof operation and glass lid alignment.
Handle glass lid with care so not to cause damage.
For easier installation, mark each point before removal.
