Wiring Diagram - Without Intelligent Key System

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

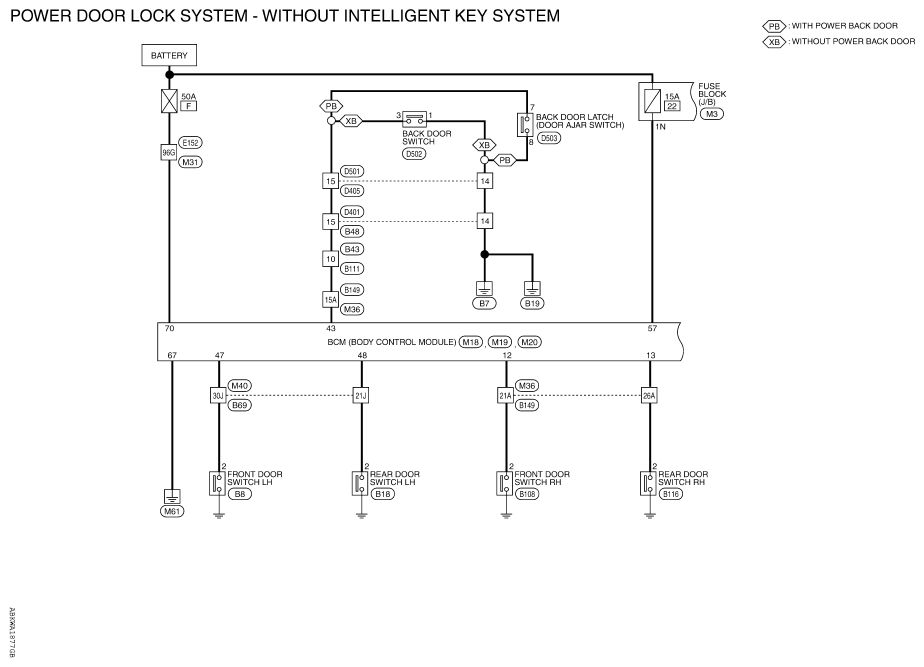

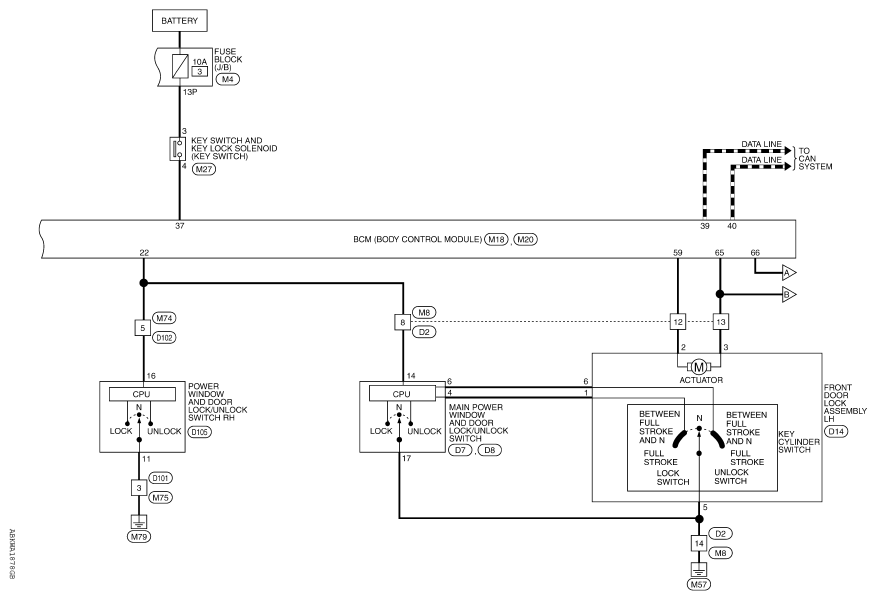

Fig 1: Power Door Lock System (Without Intelligent Key System) - Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

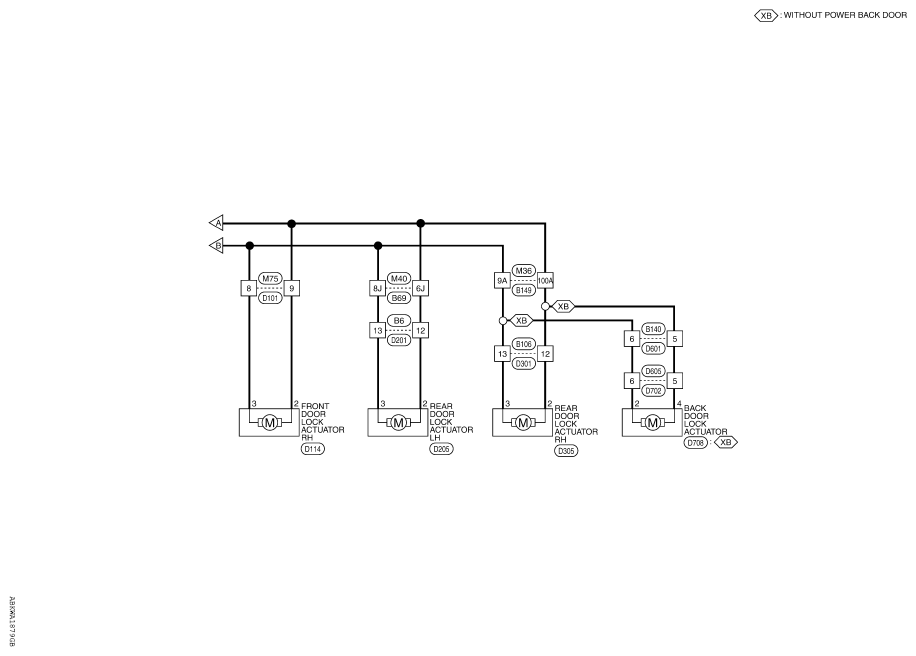

Fig 2: Power Door Lock System (Without Intelligent Key System) - Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Door Lock System (Without Intelligent Key System) - Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

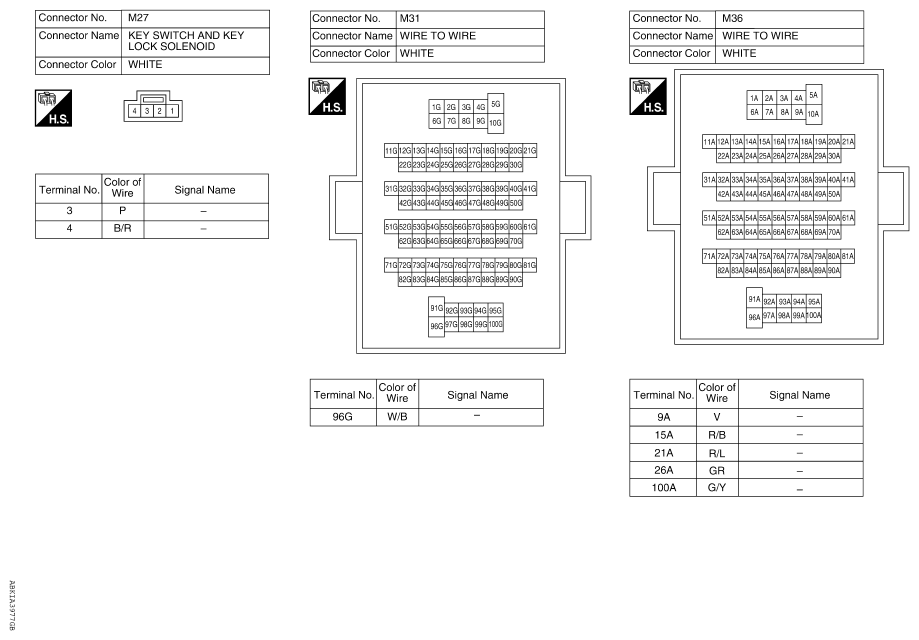

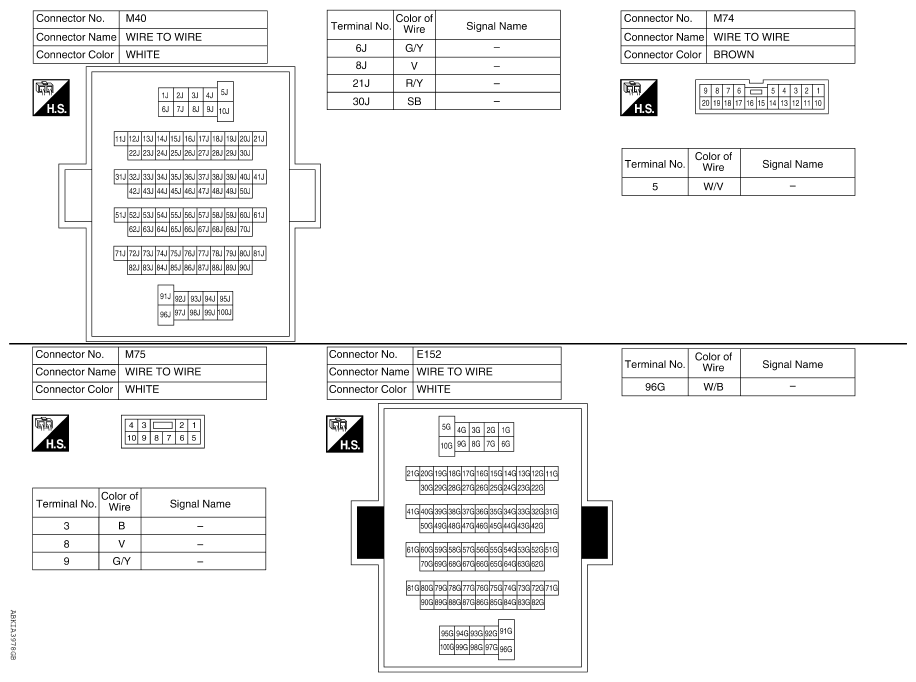

Fig 4: Power Door Lock System Connector End View - Without Intelligent Key System (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

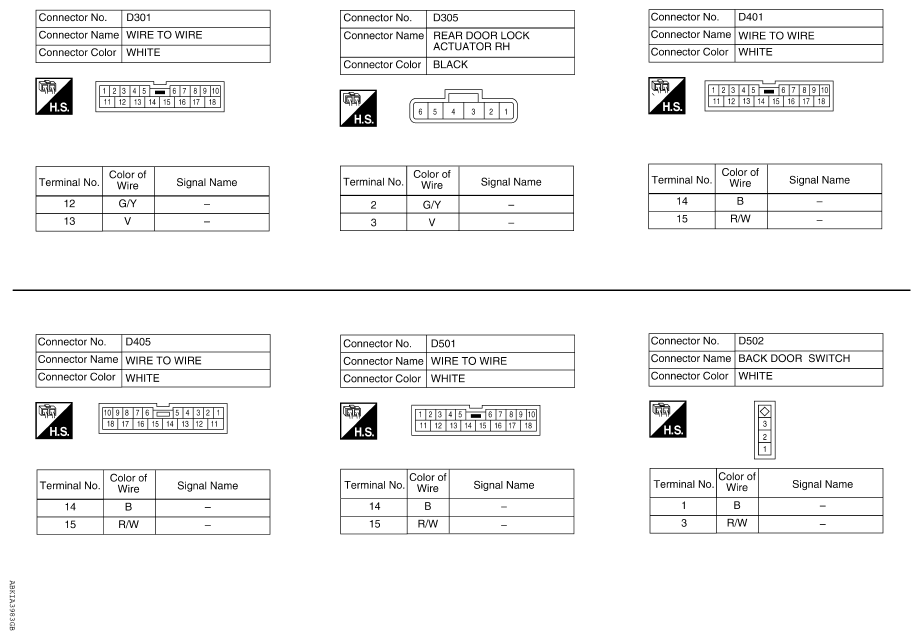

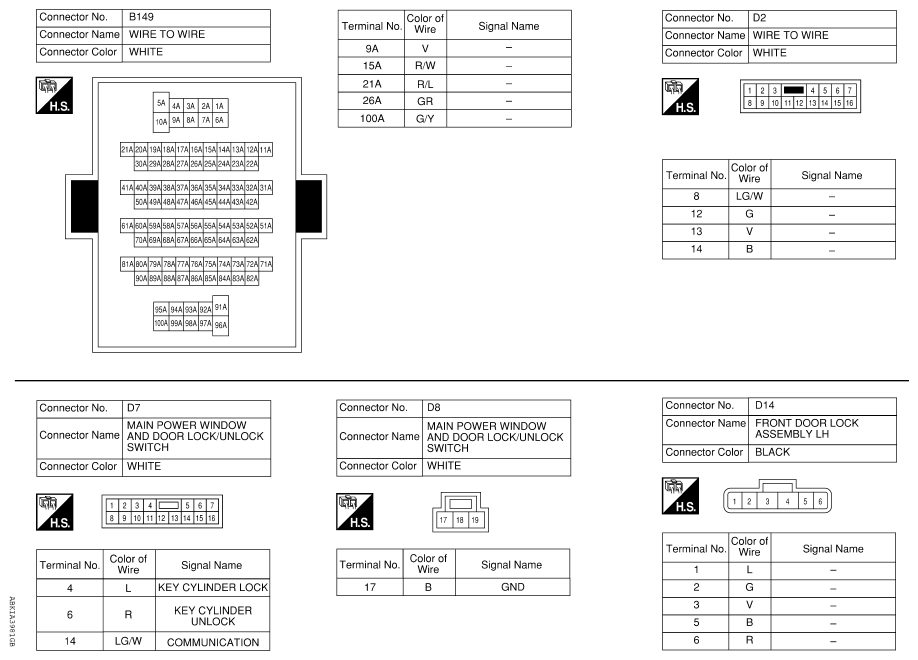

Fig 5: Power Door Lock System Connector End View - Without Intelligent Key System (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

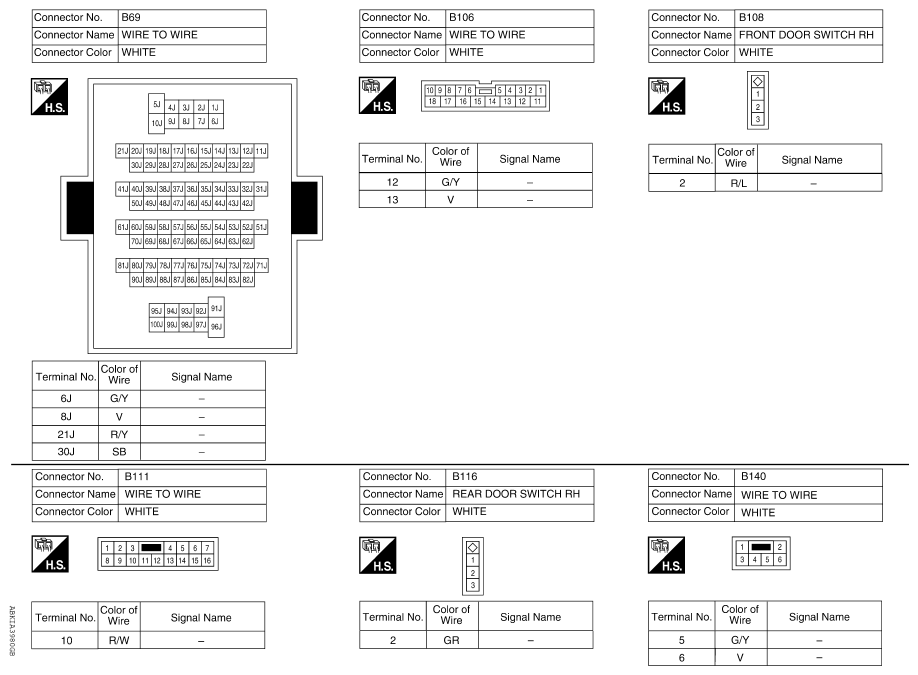

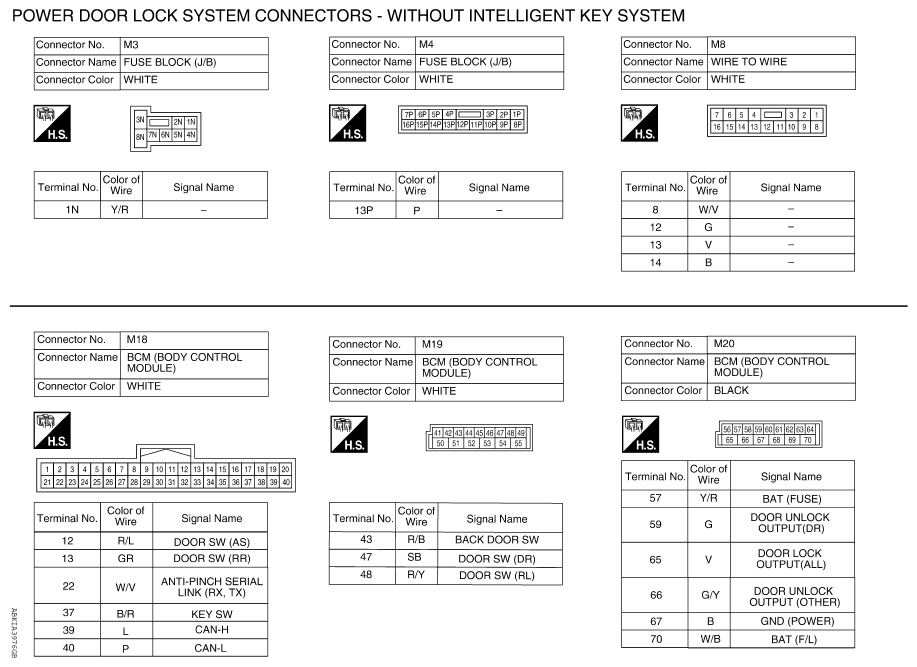

Fig 6: Power Door Lock System Connector End View - Without Intelligent Key System (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

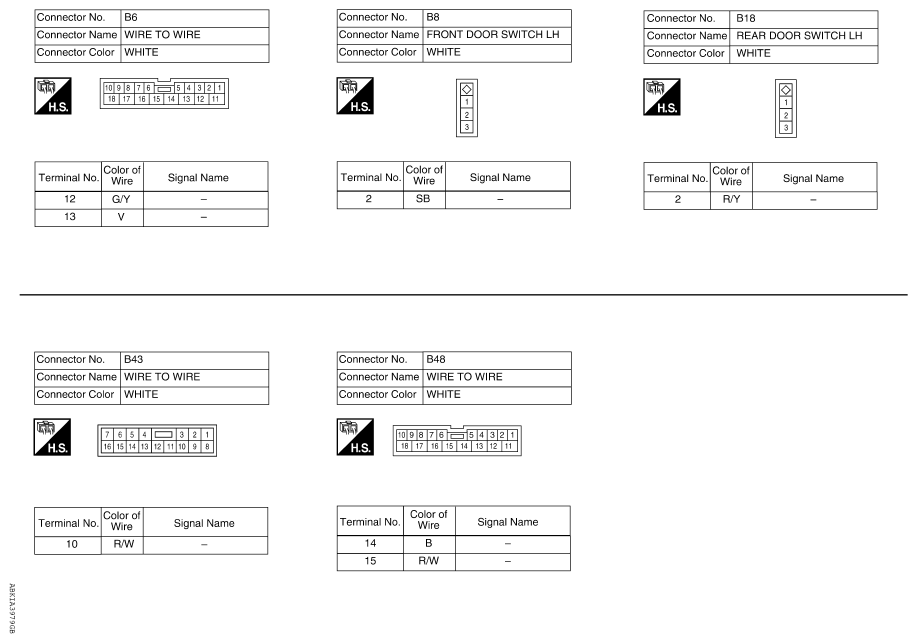

Fig 7: Power Door Lock System Connector End View - Without Intelligent Key System (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

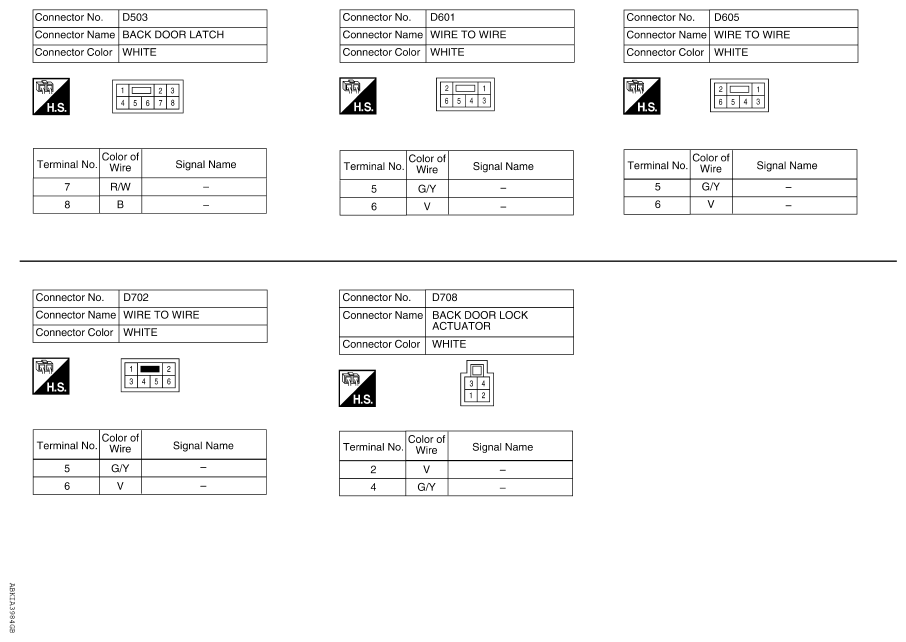

Fig 8: Power Door Lock System Connector End View - Without Intelligent Key System (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

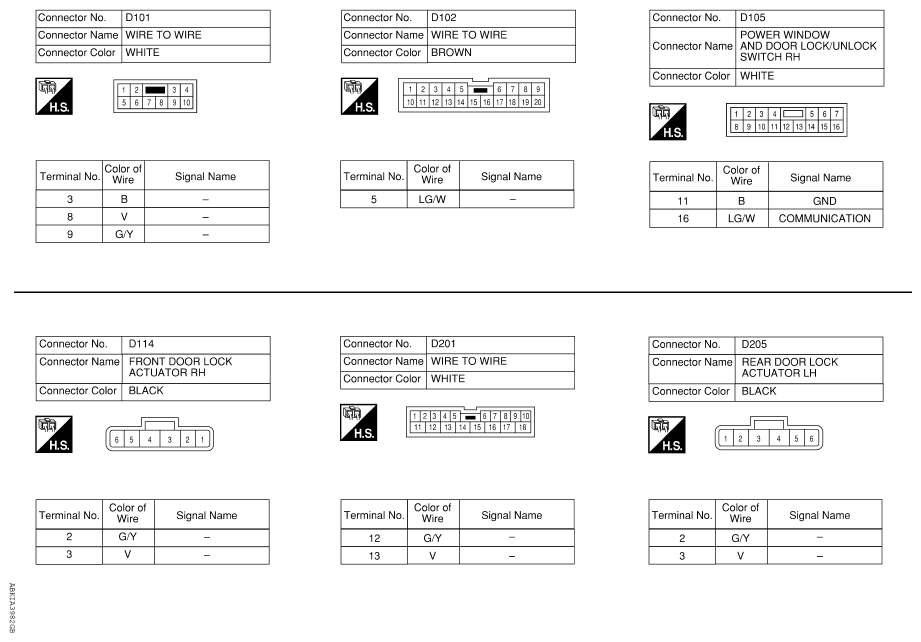

Fig 9: Power Door Lock System Connector End View - Without Intelligent Key System (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Power Door Lock System Connector End View - Without Intelligent Key System (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Power Door Lock System Connector End View - Without Intelligent Key System (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Power Door Lock System Connector End View - Without Intelligent Key System (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
