Wiring Diagram - Without Intelligent Key System

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

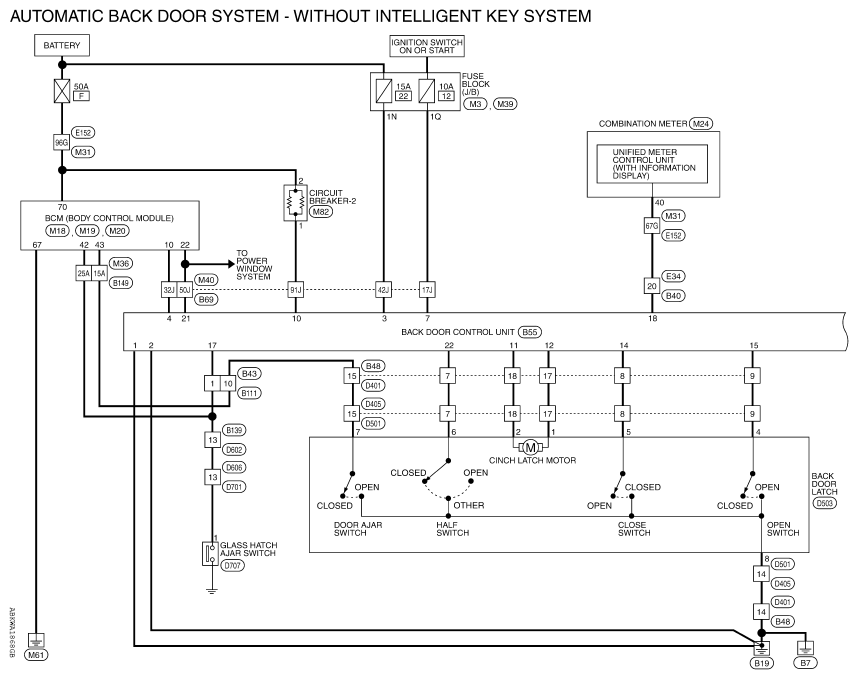

Fig 1: Automatic Back Door System (Without Intelligent Key System) - Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

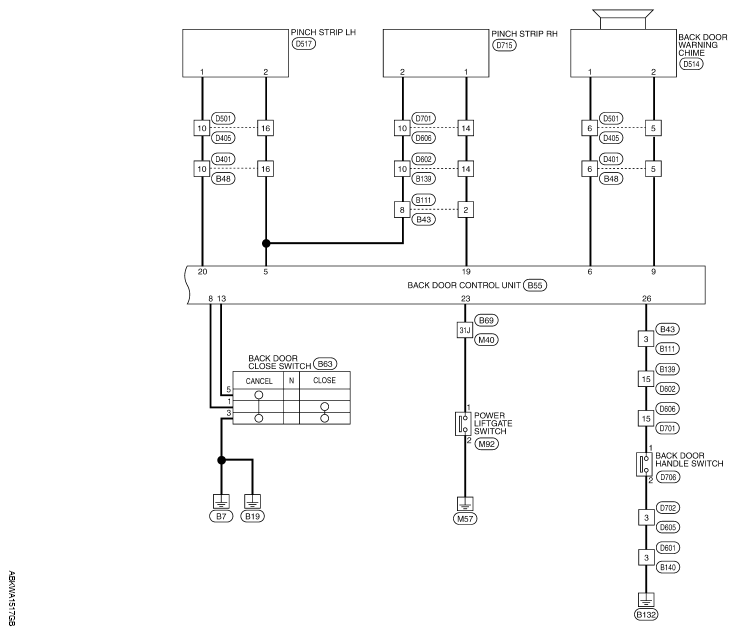

Fig 2: Automatic Back Door System (Without Intelligent Key System) - Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

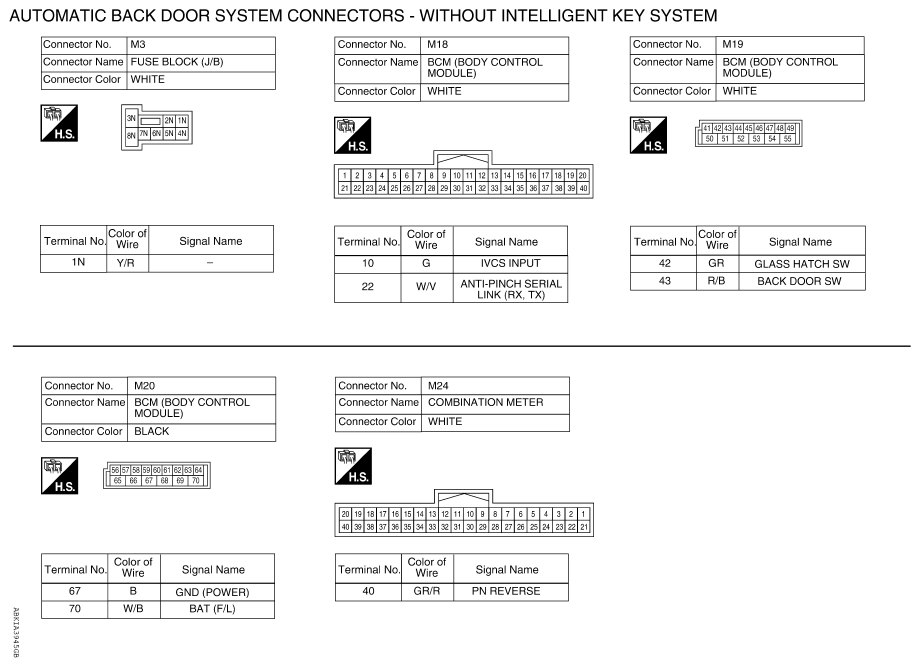

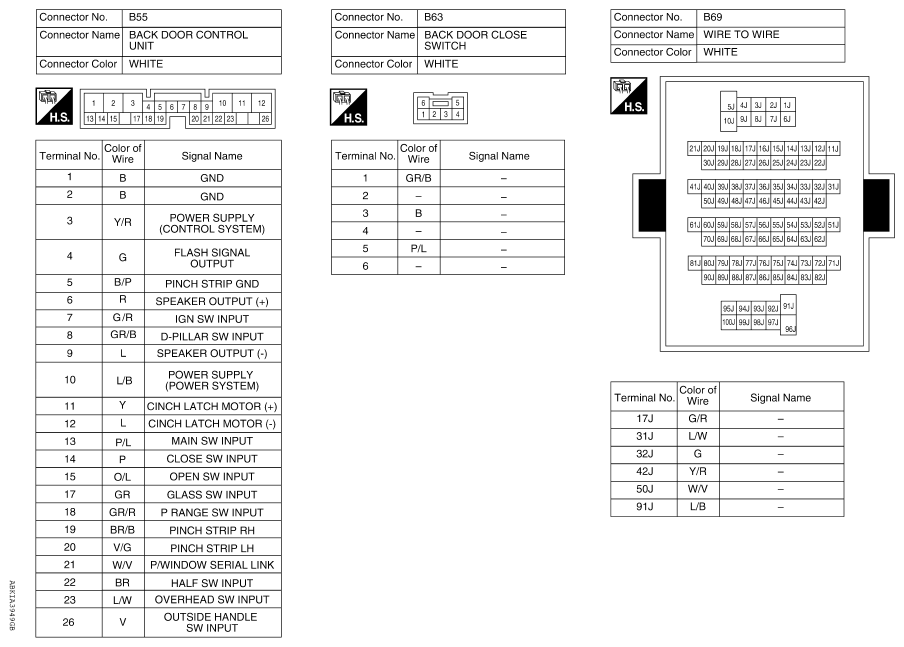

Fig 3: Automatic Back Door System Connector End View - Without Intelligent Key System (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

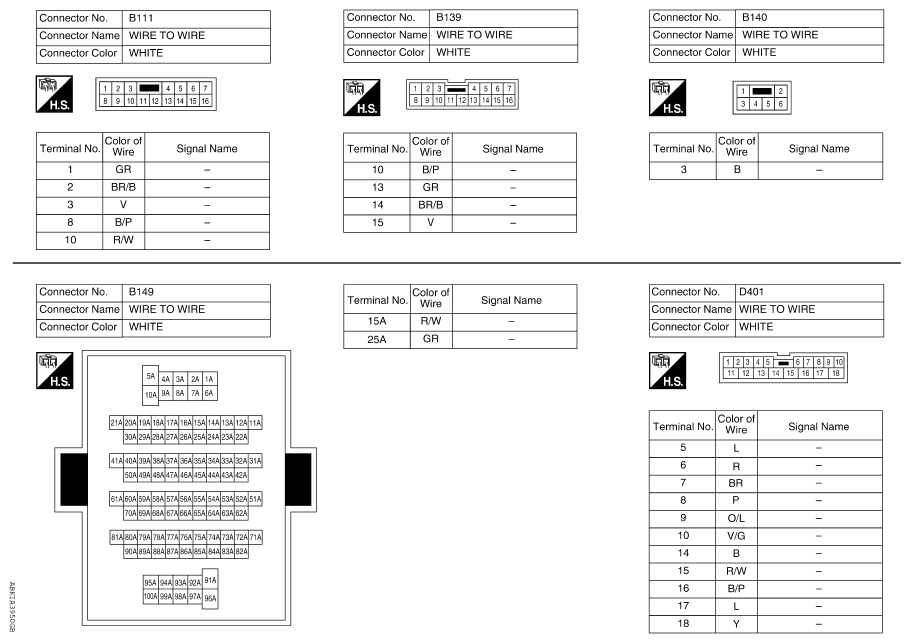

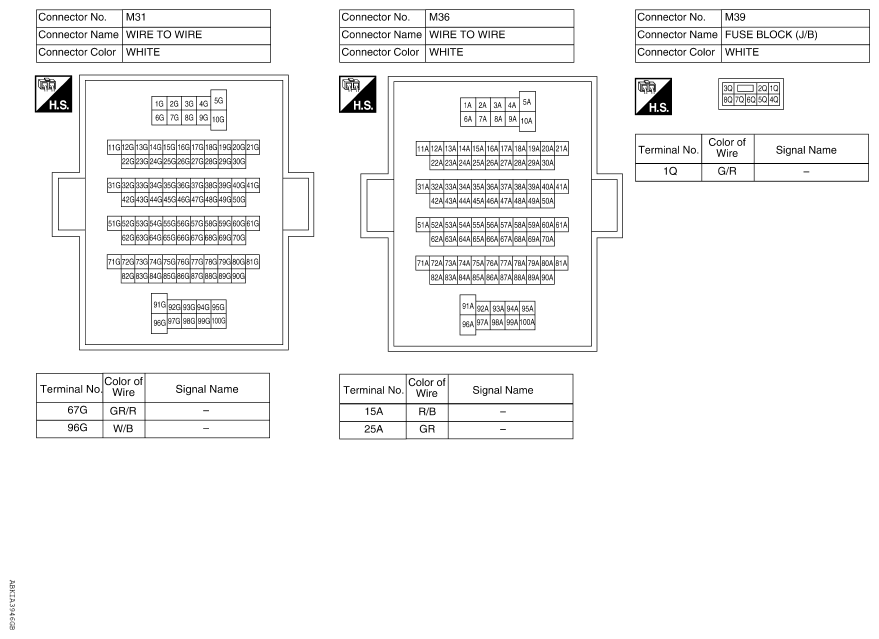

Fig 4: Automatic Back Door System Connector End View - Without Intelligent Key System (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

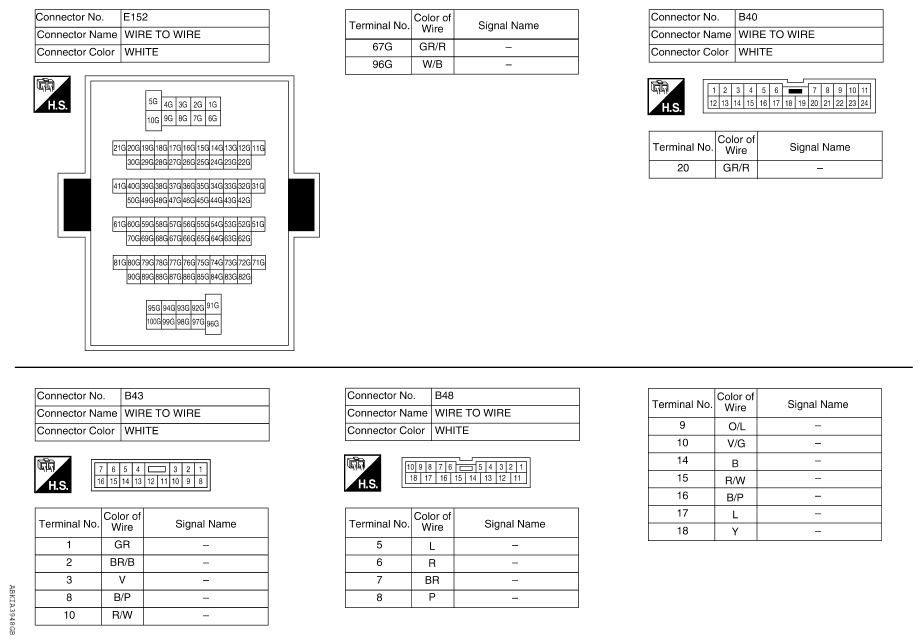

Fig 5: Automatic Back Door System Connector End View - Without Intelligent Key System (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

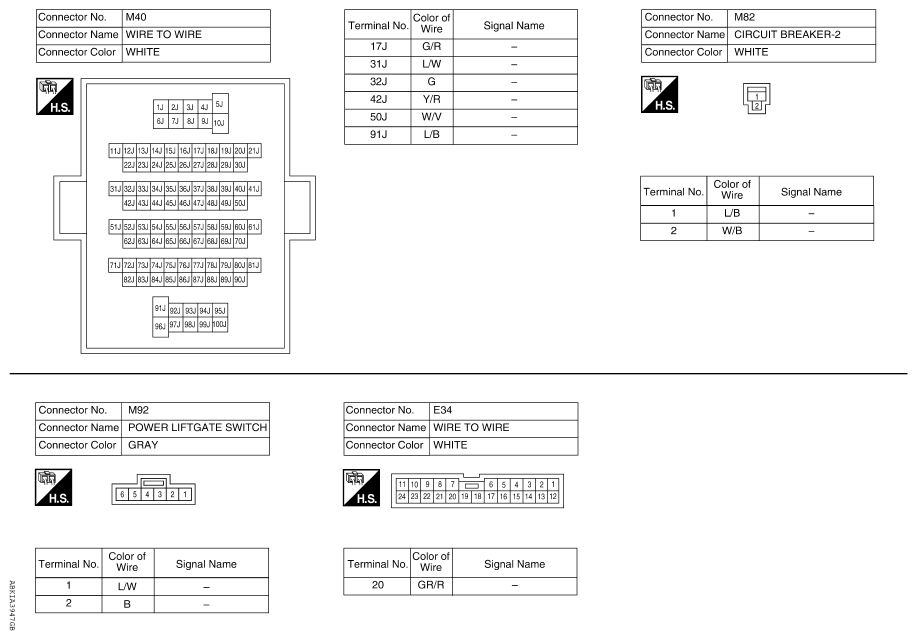

Fig 6: Automatic Back Door System Connector End View - Without Intelligent Key System (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

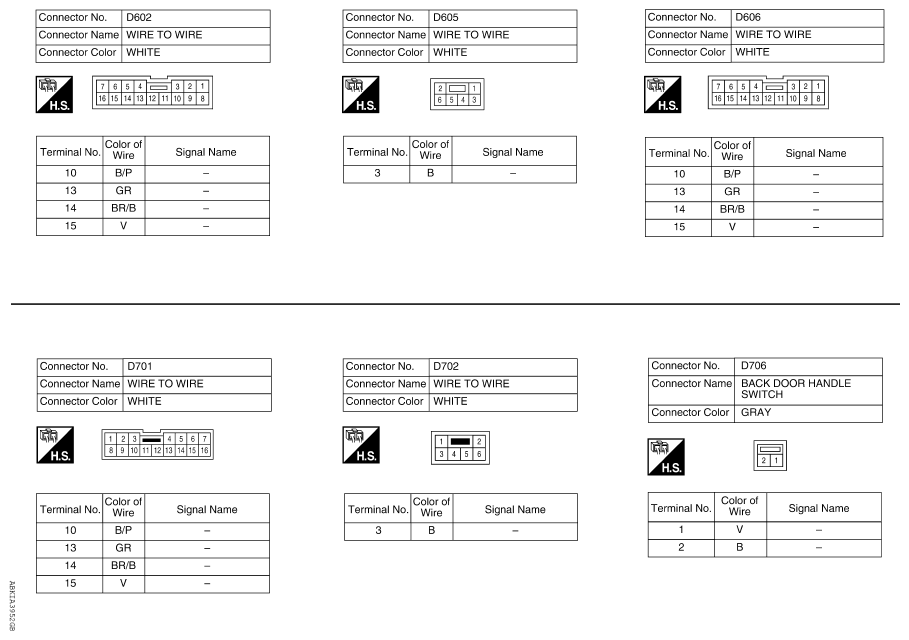

Fig 7: Automatic Back Door System Connector End View - Without Intelligent Key System (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

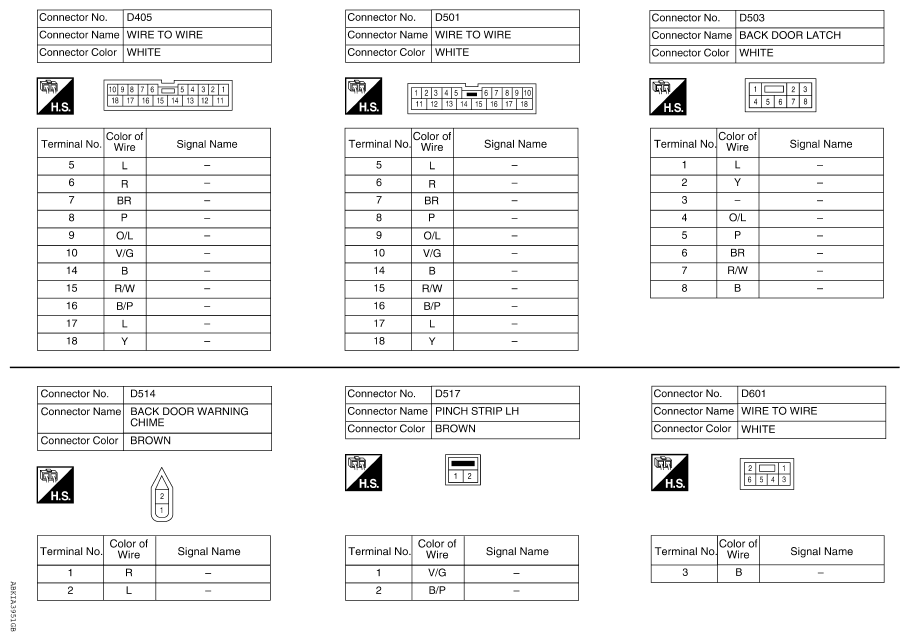

Fig 8: Automatic Back Door System Connector End View - Without Intelligent Key System (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Back Door System Connector End View - Without Intelligent Key System (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Automatic Back Door System Connector End View - Without Intelligent Key System (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Automatic Back Door System Connector End View - Without Intelligent Key System (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
