Component Inspection

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Signal Tech II (J-50190) can be used to test the remote keyless entry keyfob relative signal strength. Refer to the Signal Tech II User Guide for additional information.

REPLACE KEYFOB BATTERY

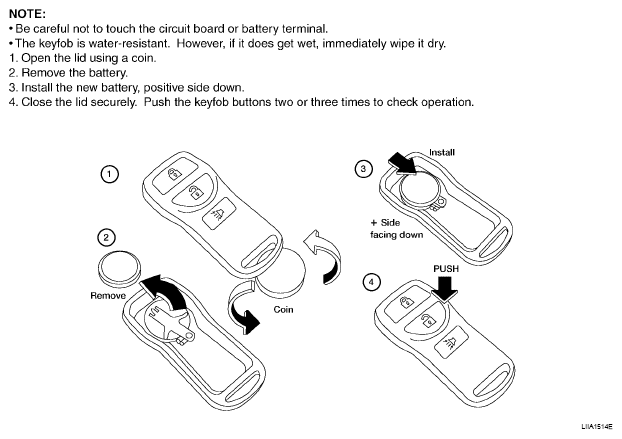

Fig 1: Removing Keyfob Battery
Courtesy of NISSAN NORTH AMERICA, INC.

Check keyfob operation after replacing the battery.

Is the inspection result normal?

YES: Keyfob is OK.

NO: Check remote keyless entry receiver. Refer to "COMPONENT FUNCTION CHECK ".
