WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

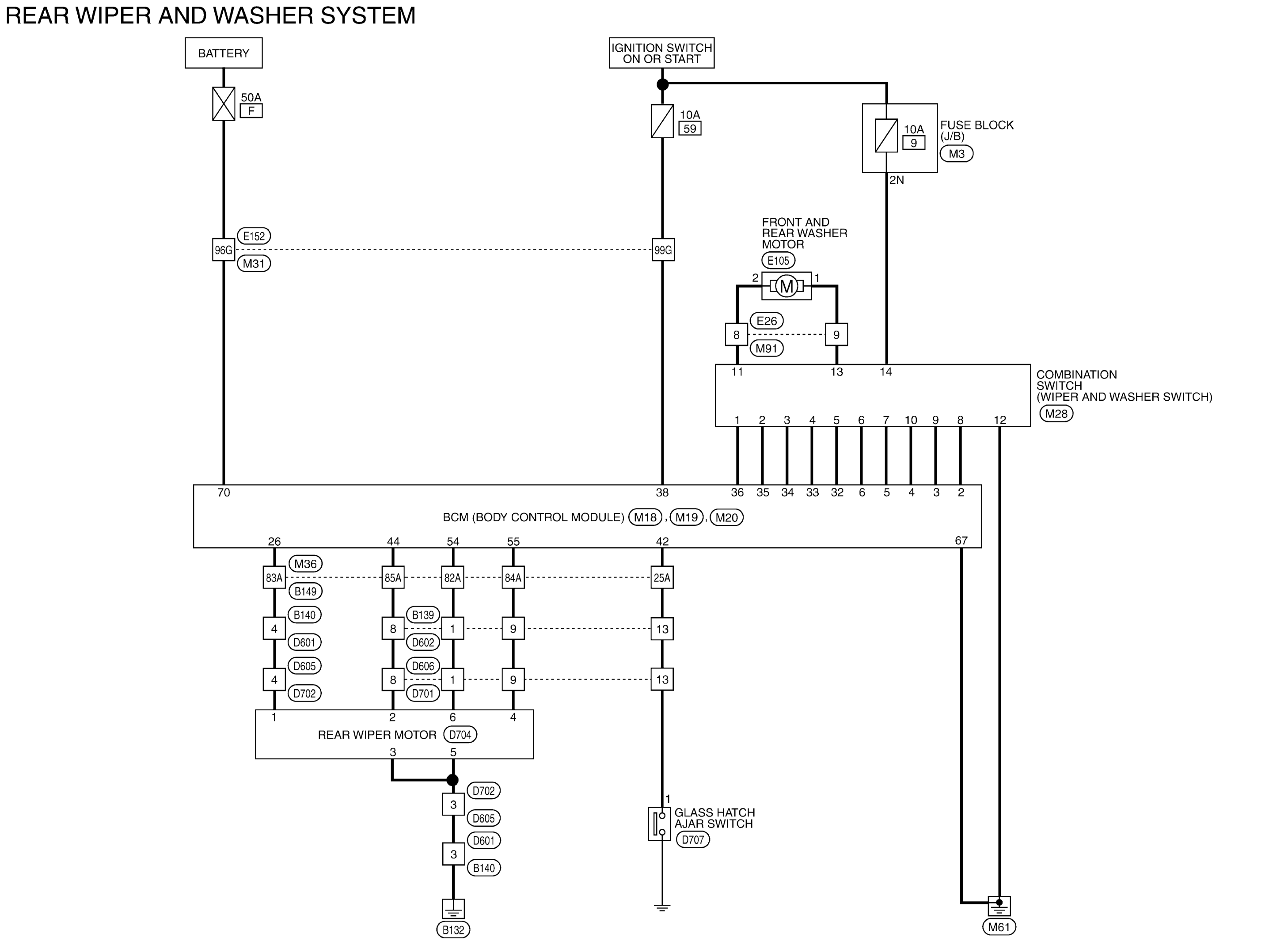

Fig 1: Rear Wiper And Washer System - Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

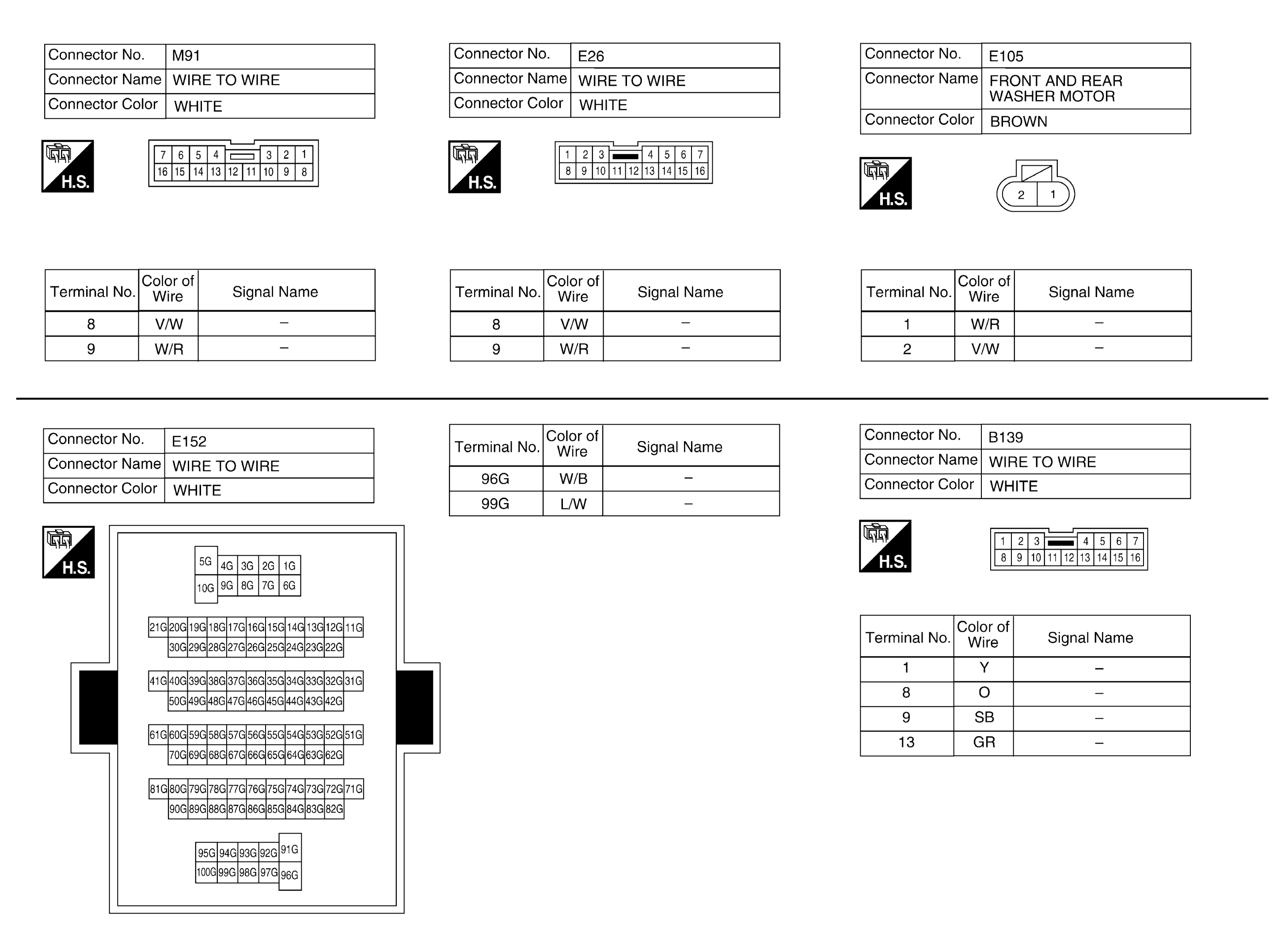

Fig 2: Rear Wiper And Washer System Connector End View (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

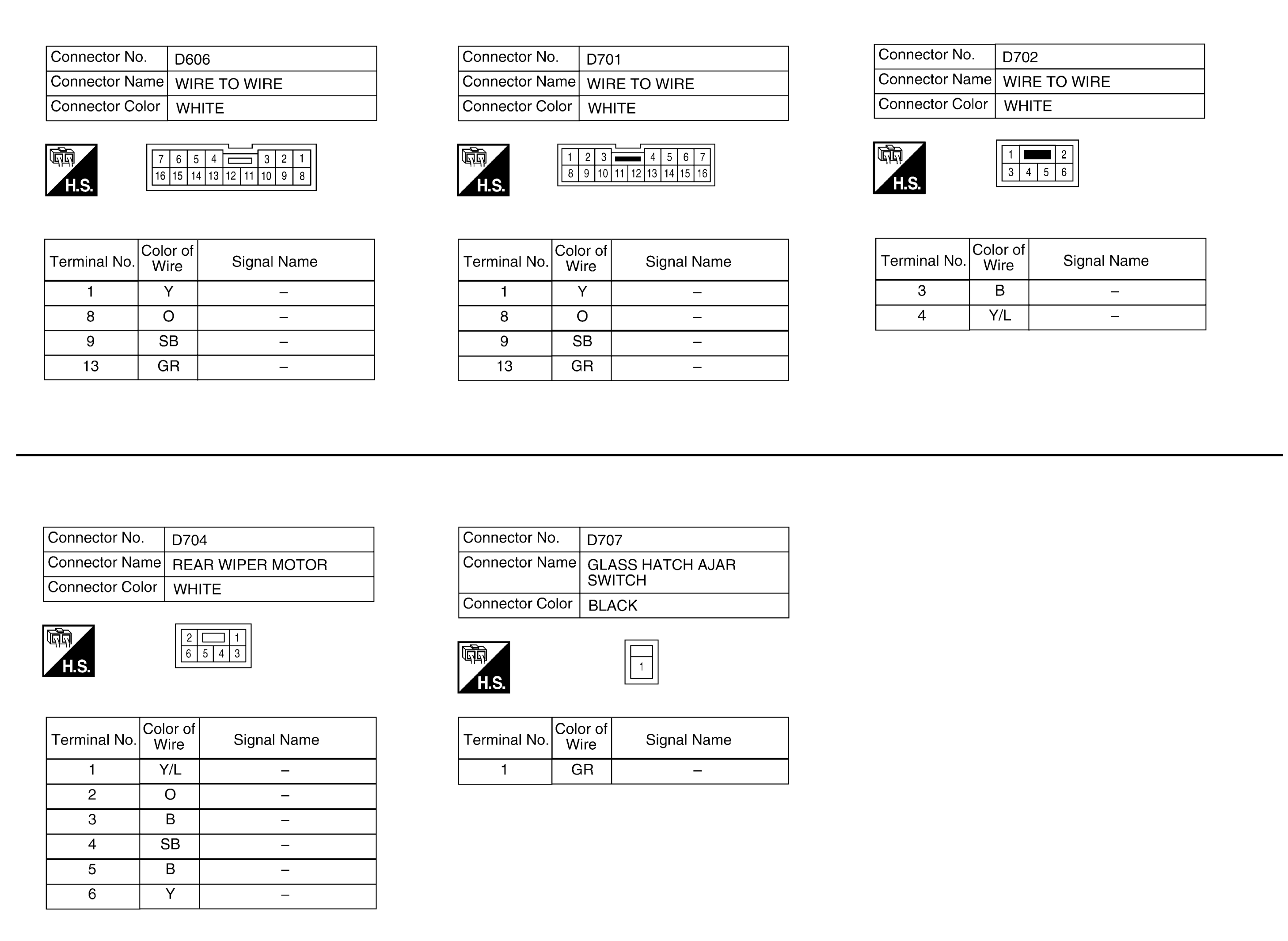

Fig 3: Rear Wiper And Washer System Connector End View (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

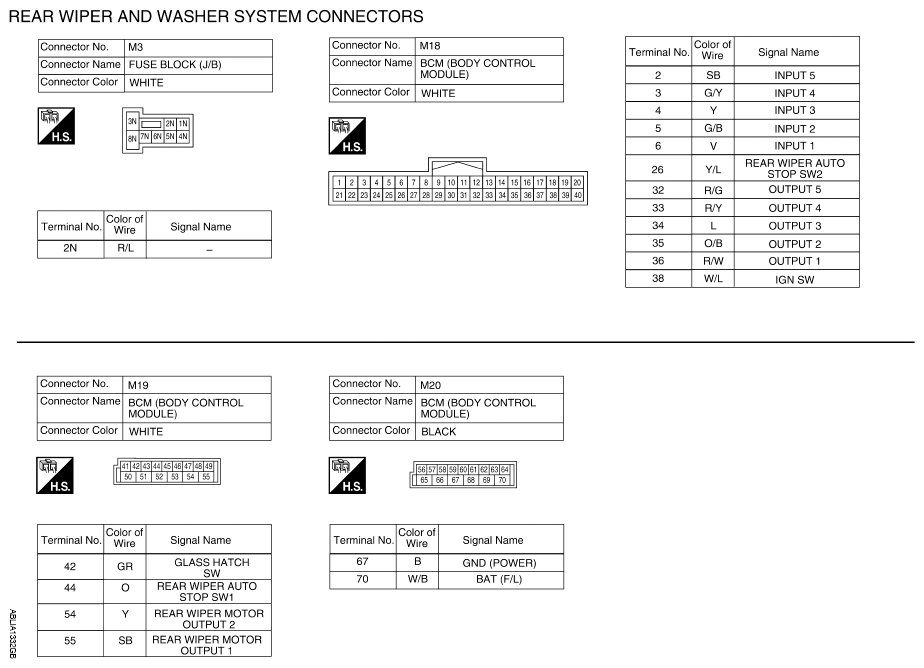

Fig 4: Rear Wiper And Washer System Connector End View (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

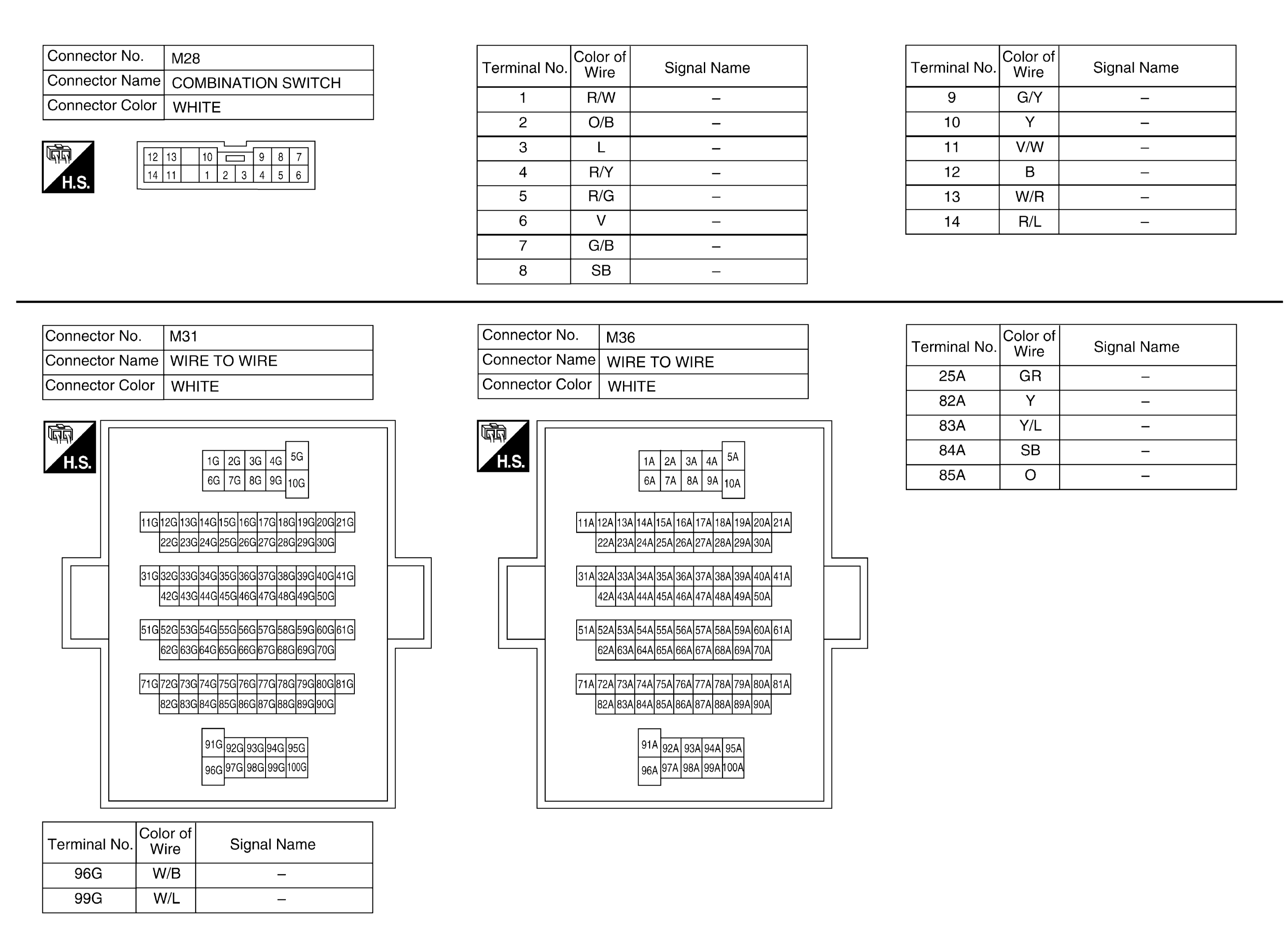

Fig 5: Rear Wiper And Washer System Connector End View (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

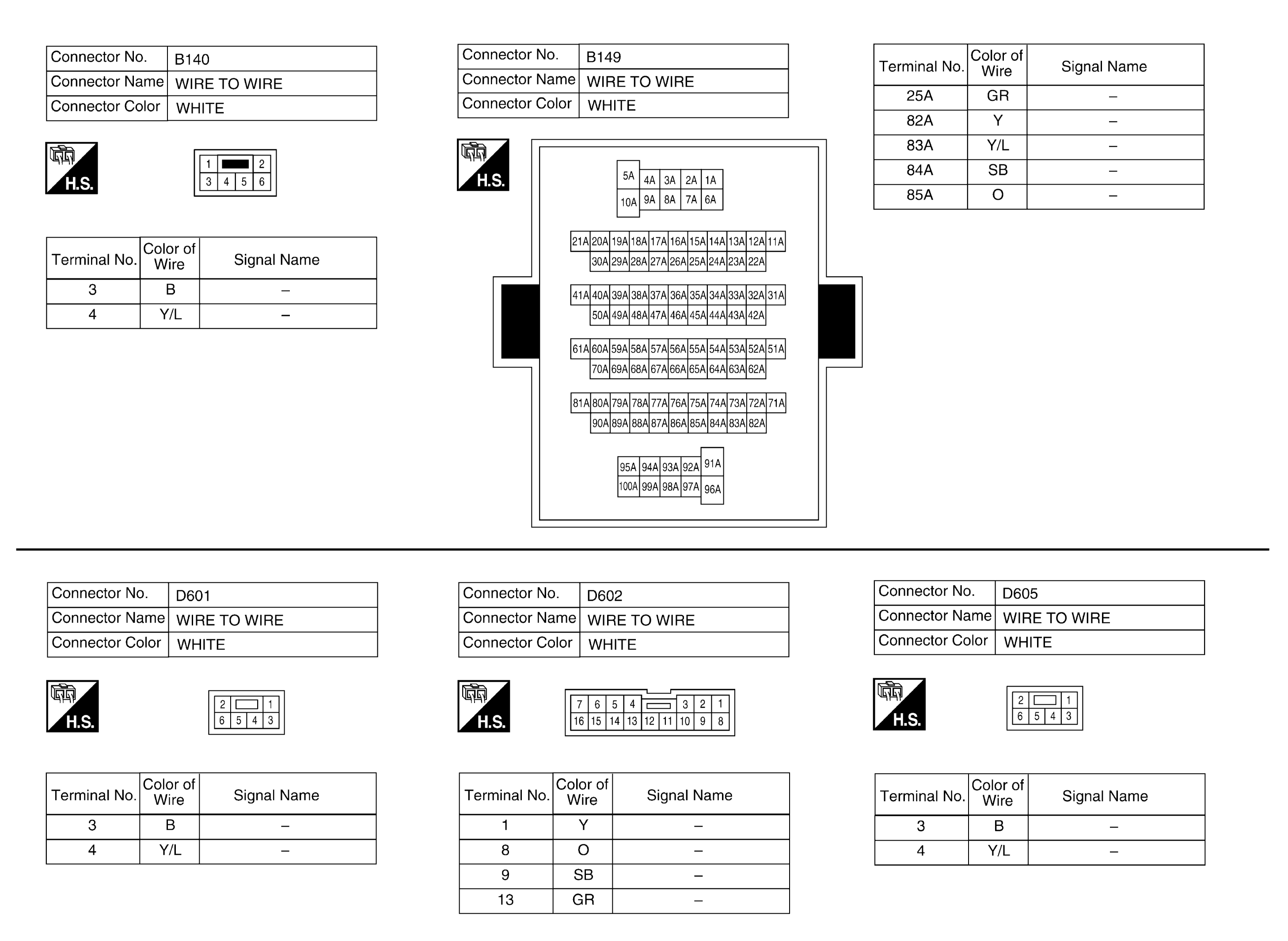

Fig 6: Rear Wiper And Washer System Connector End View (5 Of 5)
