Rear Washer Tube Layout

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

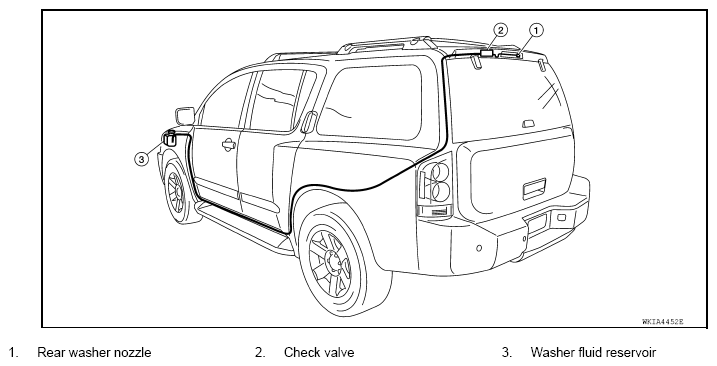

Fig 1: Rear Washer Tube Layout

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Connect the check valve (2) to the washer fluid reservoir tube (1) so that the directional arrow on the check valve (2) points towards the washer nozzle tube (3).

Fig 2: Connecting Check Valve To Washer Fluid Reservoir Tube

Courtesy of NISSAN NORTH AMERICA, INC.
