Section 928 (Horn): Wiring Diagram: Horn: Wiring Diagram

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

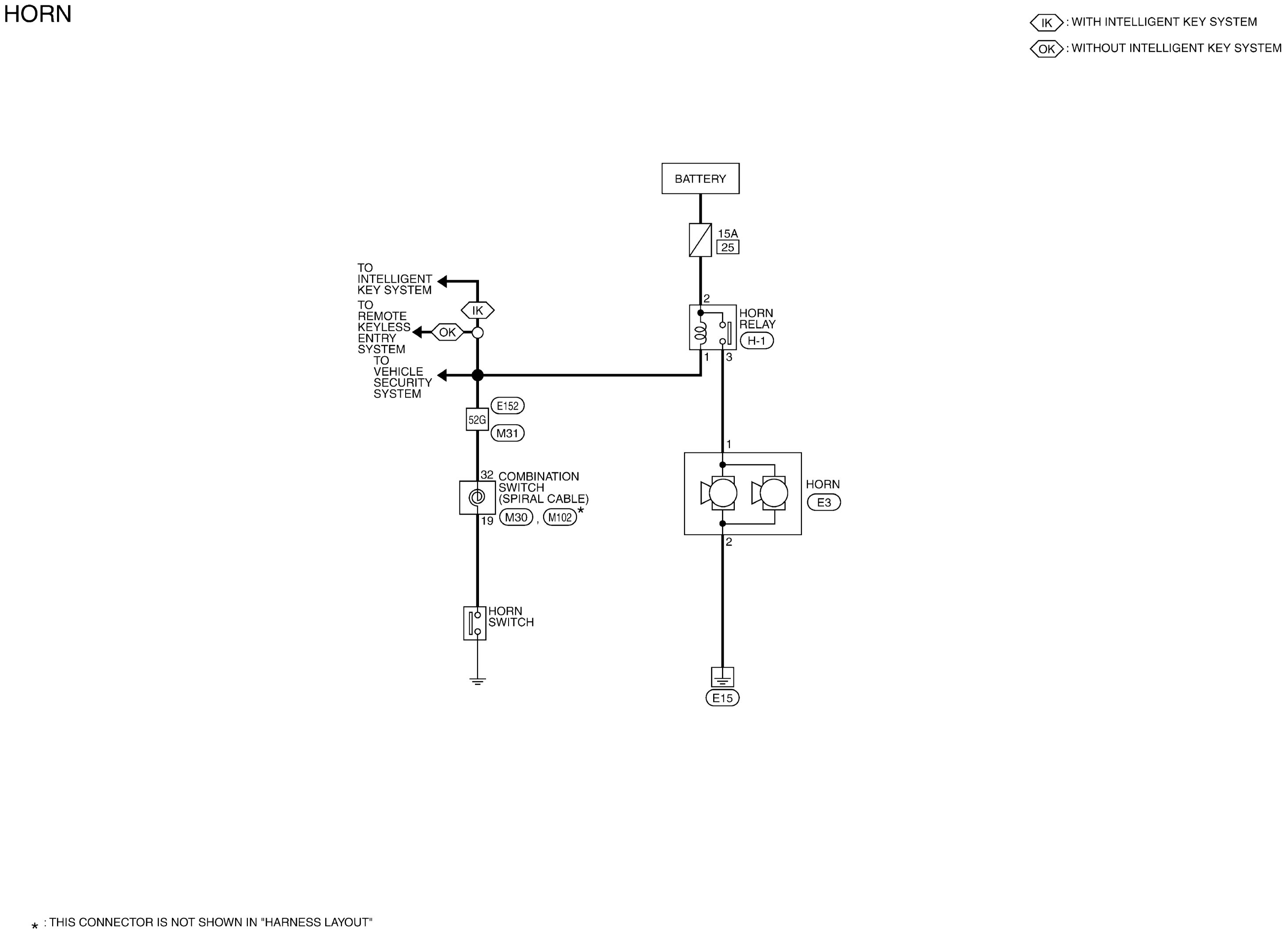

Fig 1: Horn - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

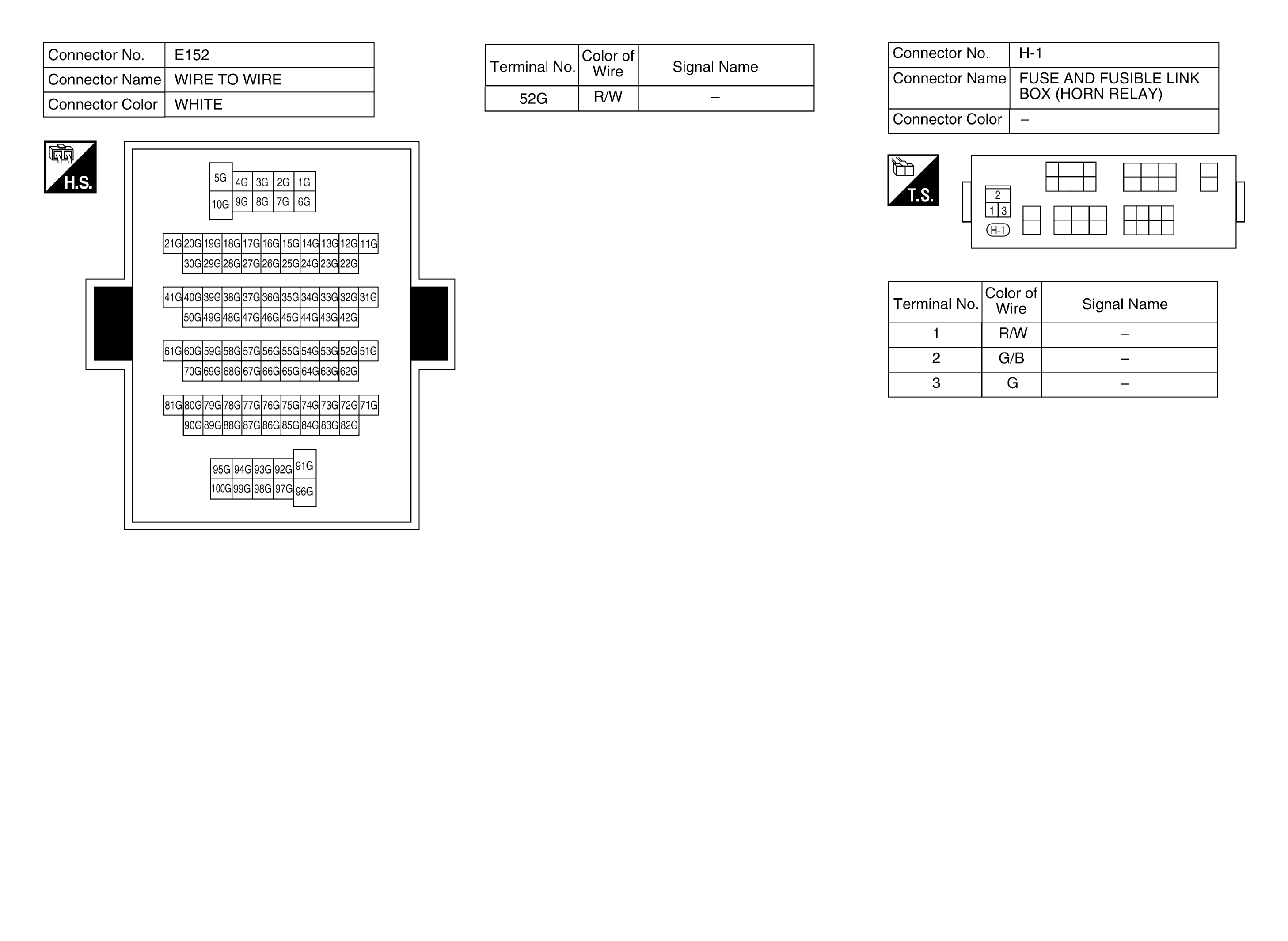

Fig 2: Horn Connector End View (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

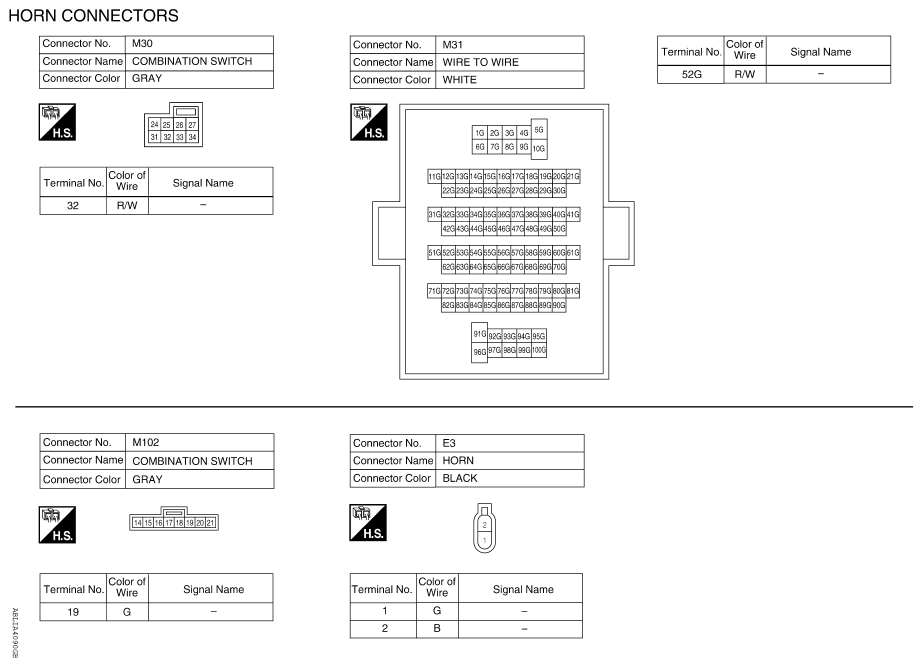

Fig 3: Horn Connector End View (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
