WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

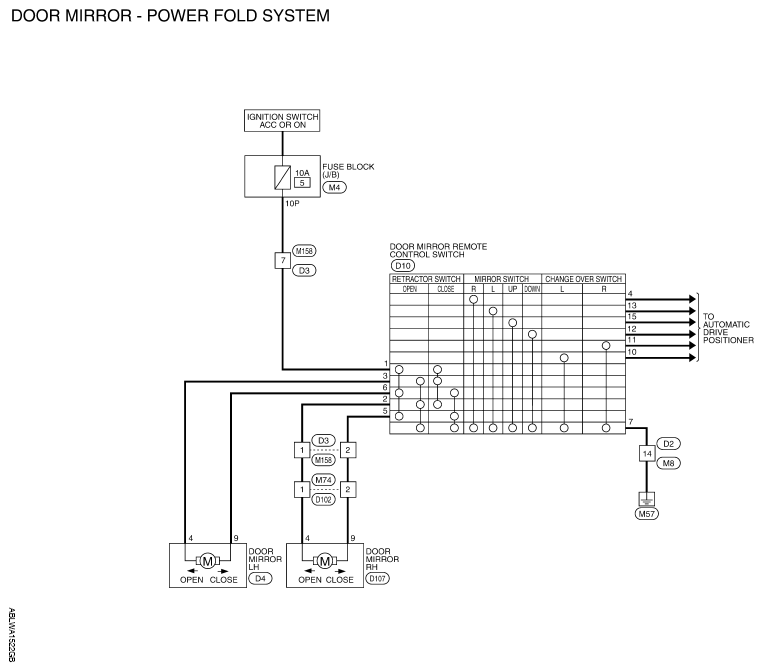

Fig 1: Door Mirror - Wiring Diagram (Power Fold System)
Courtesy of NISSAN NORTH AMERICA, INC.

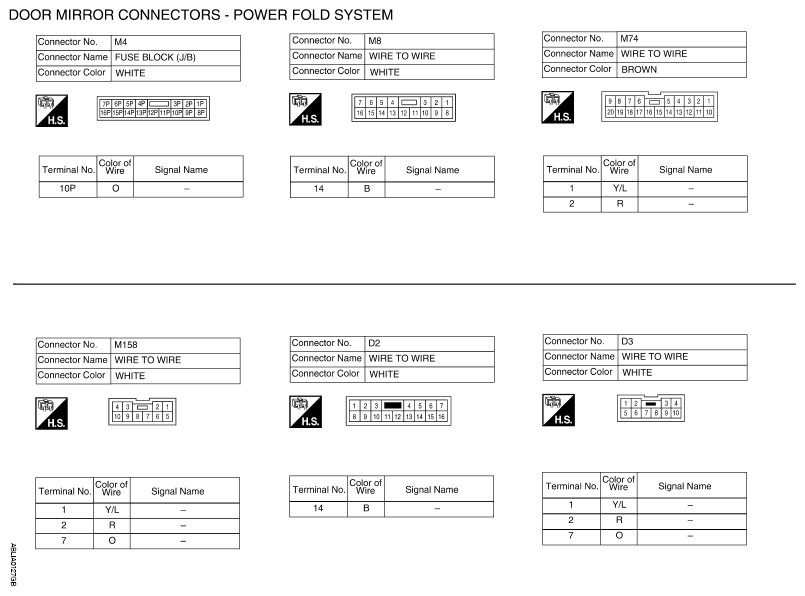

Fig 2: Door Mirror Connector End View - Power Fold System (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

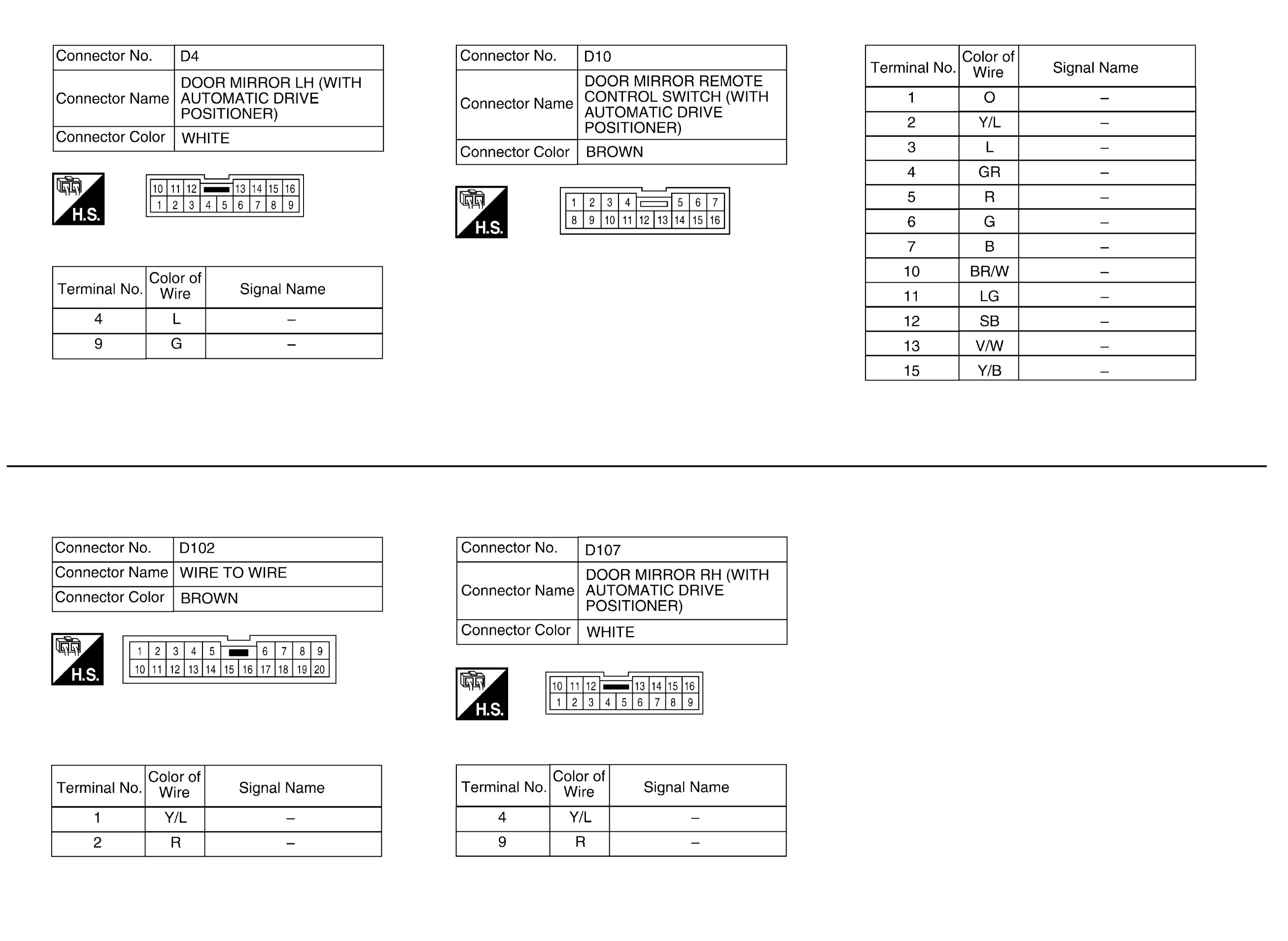

Fig 3: Door Mirror Connector End View - Power Fold System (2 Of 2)
