Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When removing and installing, use shop cloths to protect parts from damage.
  1. Disconnect the battery negative terminal. Refer to "HOW TO HANDLE BATTERY ".
  2. Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the automatic drive positioner control unit.
    1. Remove the automatic drive positioner control unit screw (1).
    2. Separate the automatic drive positioner control unit from the bracket.
    3. Disconnect the harness connectors and remove automatic drive positioner control unit.

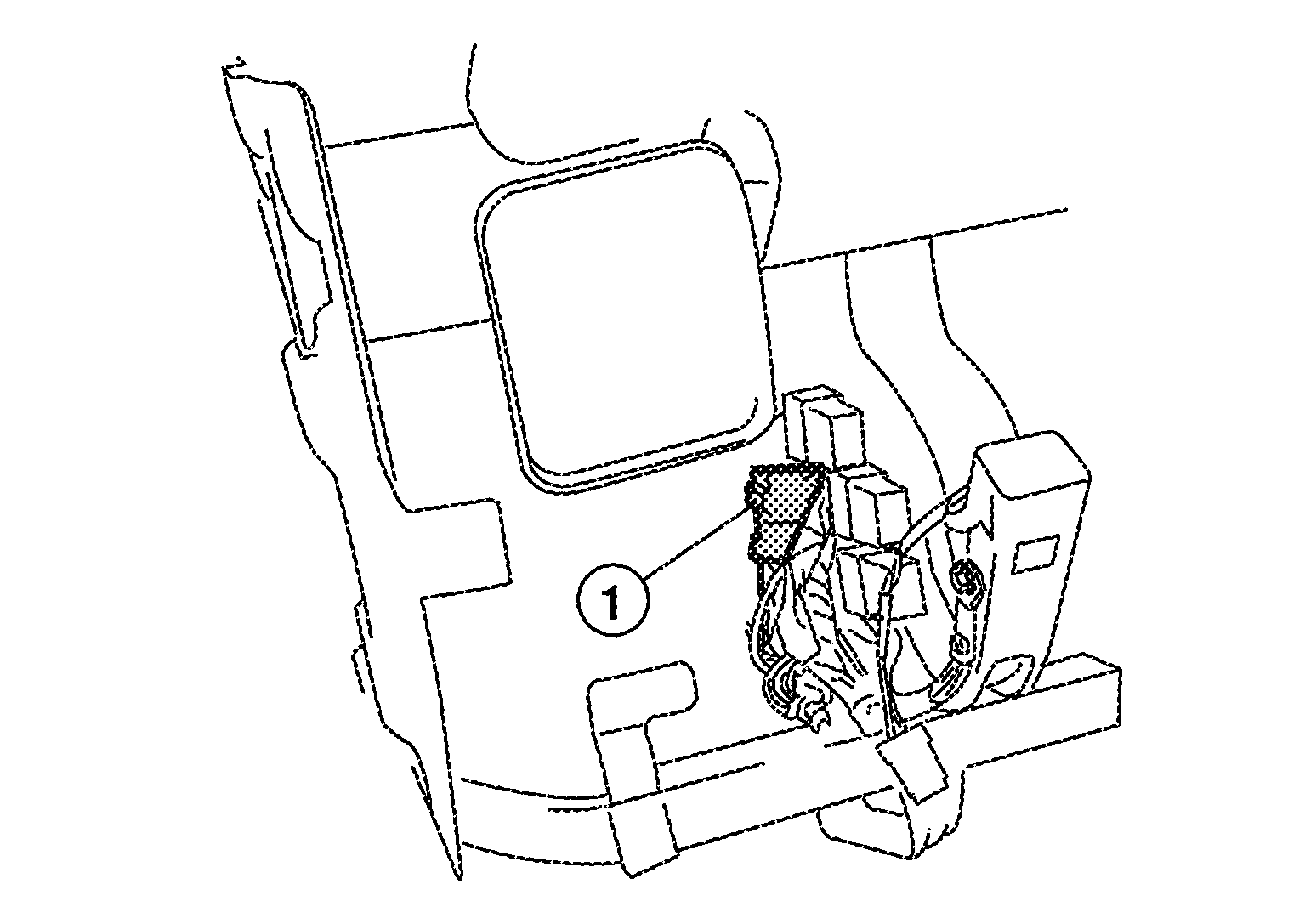

      Fig 1: Identifying Drive Positioner Control Unit Screw
      G05937028Courtesy of NISSAN NORTH AMERICA, INC.
