Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

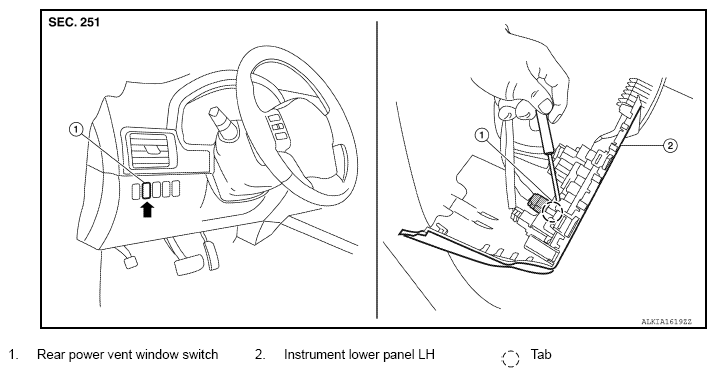

Fig 1: Removing LH Instrument Lower Panel
G08697845Courtesy of NISSAN NORTH AMERICA, INC.
  1. Remove the instrument lower panel LH. Refer to "EXPLODED VIEW ".
  2. Release the upper and lower tabs using a suitable tool.
  3. Remove the rear power vent window switch.
