Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the display unit.
    1. Remove the display unit screws (A).
    2. Pull the display unit (1) from the instrument panel.
    3. Disconnect the harness connectors from the display unit.

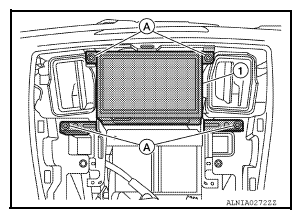

      Fig 1: Identifying Display Unit With Mounting Screws
      G08693652Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the A/C auto amp screws (A).
    1. Separate the A/C auto amp (1) from the display unit (2).
  4. Remove the display unit bracket screws and the display unit brackets.
    Fig 2: Identifying Display Unit, A/C Auto Amp And Screws
    G08693653Courtesy of NISSAN NORTH AMERICA, INC.
