Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the defroster grille from the instrument panel. Refer to "EXPLODED VIEW ".
Disconnect the optical sensor connector (2).
Twist the optical sensor (1) counter clockwise to remove it from the defroster grille.

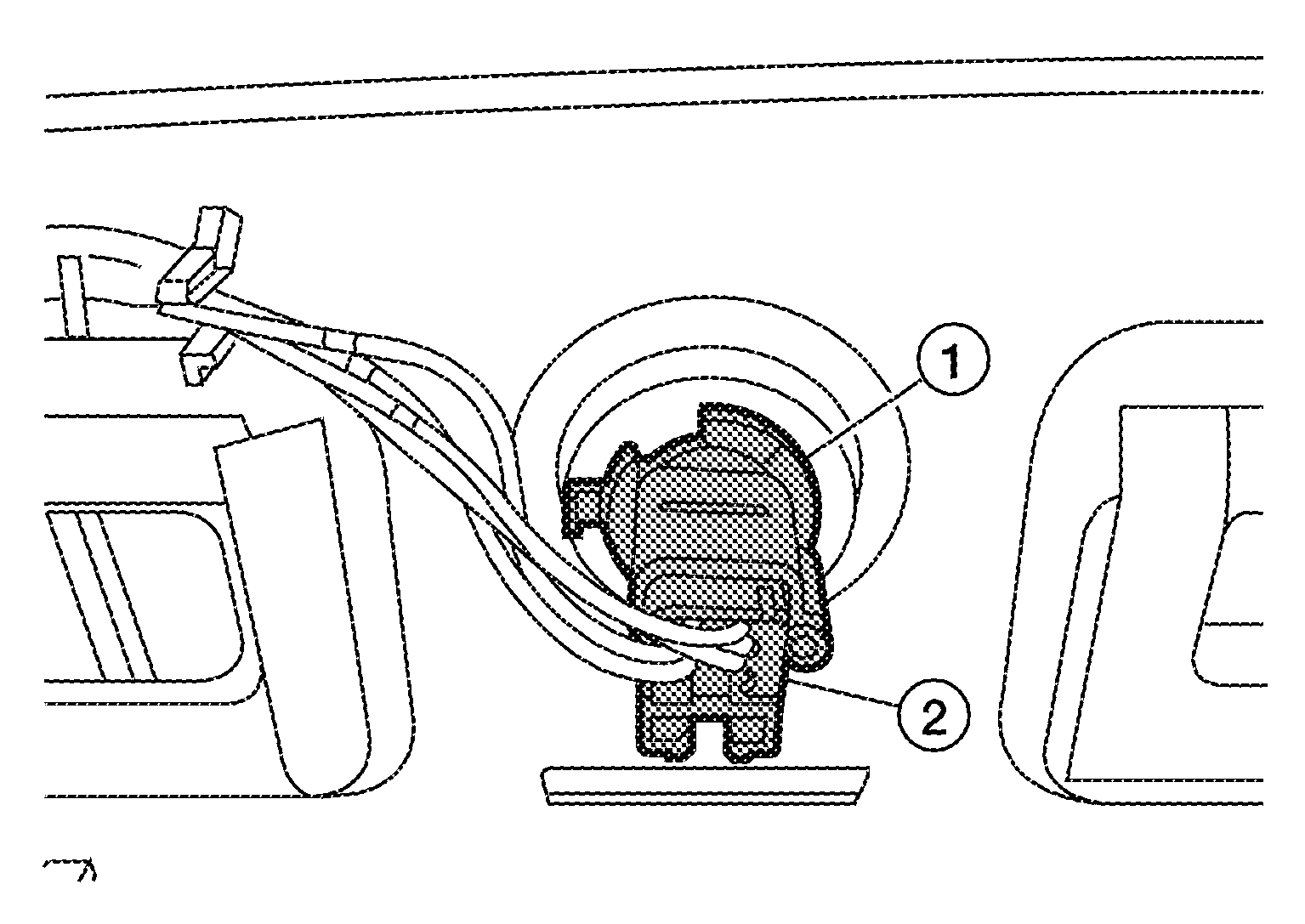

Fig 1: Identifying Optical Sensor And Connector
Courtesy of NISSAN NORTH AMERICA, INC.
