Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower instrument panel LH. Refer to "EXPLODED VIEW ".
  2. Remove the two screws (A) and remove the in-vehicle sensor (1).

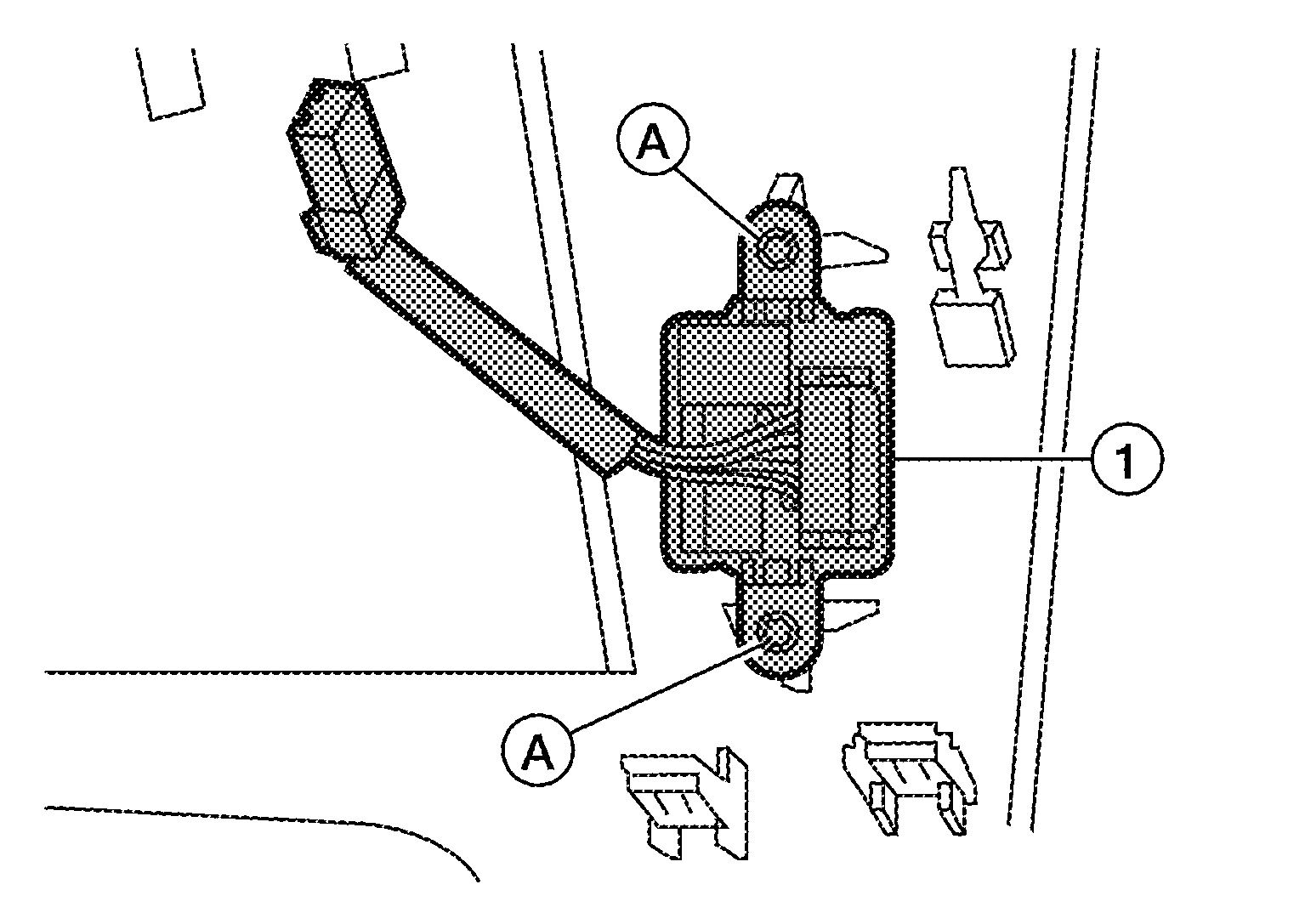

    Fig 1: Identifying In-Vehicle Sensor And Mounting Screws
    G05381143Courtesy of NISSAN NORTH AMERICA, INC.
