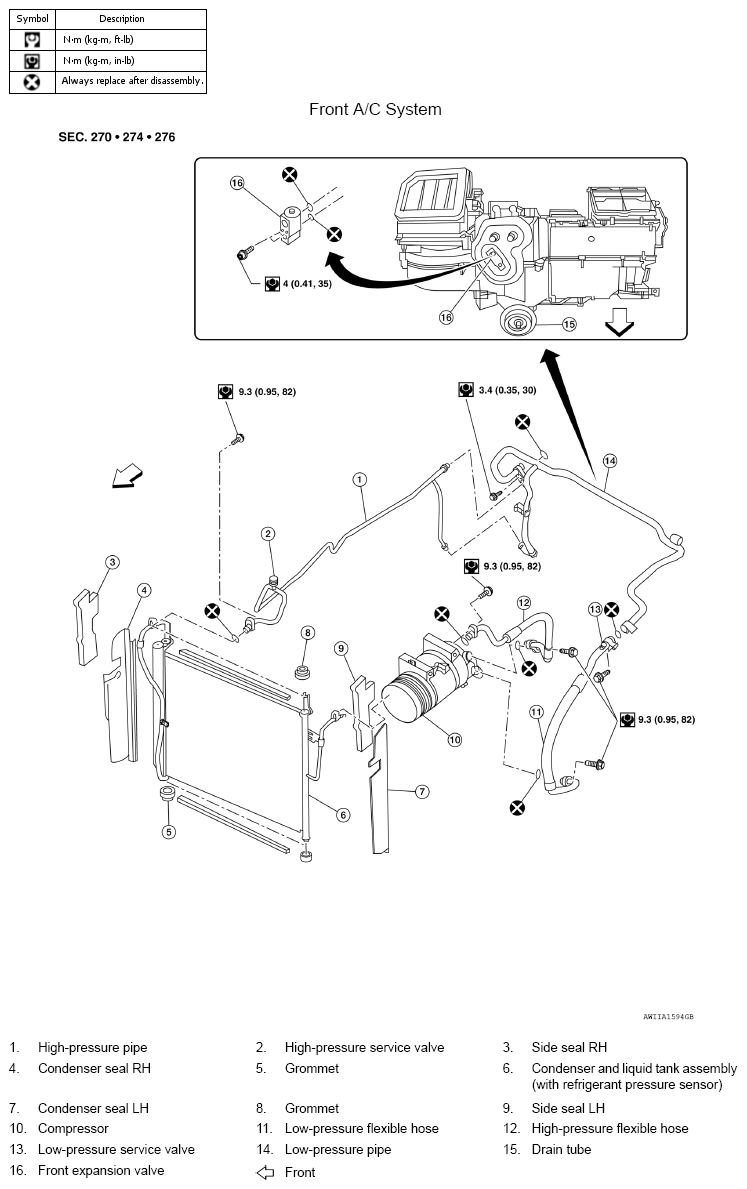

Fig 1: Exploded View Of Heater & Cooling Unit Assembly With Torque Specifications (Front A/C System)
Courtesy of NISSAN NORTH AMERICA, INC.

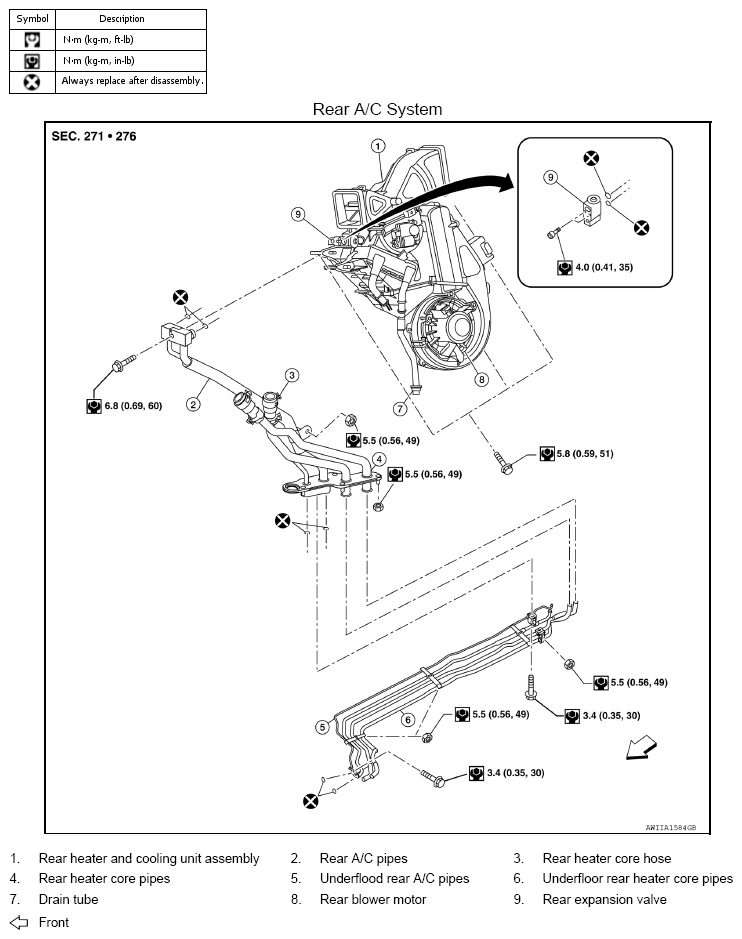

Fig 2: Exploded View Of Heater & Cooling Unit Assembly With Torque Specifications (Rear A/C System)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Refer to
PRECAUTION FOR REFRIGERANT CONNECTION "
".
