A/C Auto Amp: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the display unit. Refer to "REMOVAL AND INSTALLATION ".
Remove the four screws (A) and remove the A/C auto amp. (1) from the back of the display unit (2).

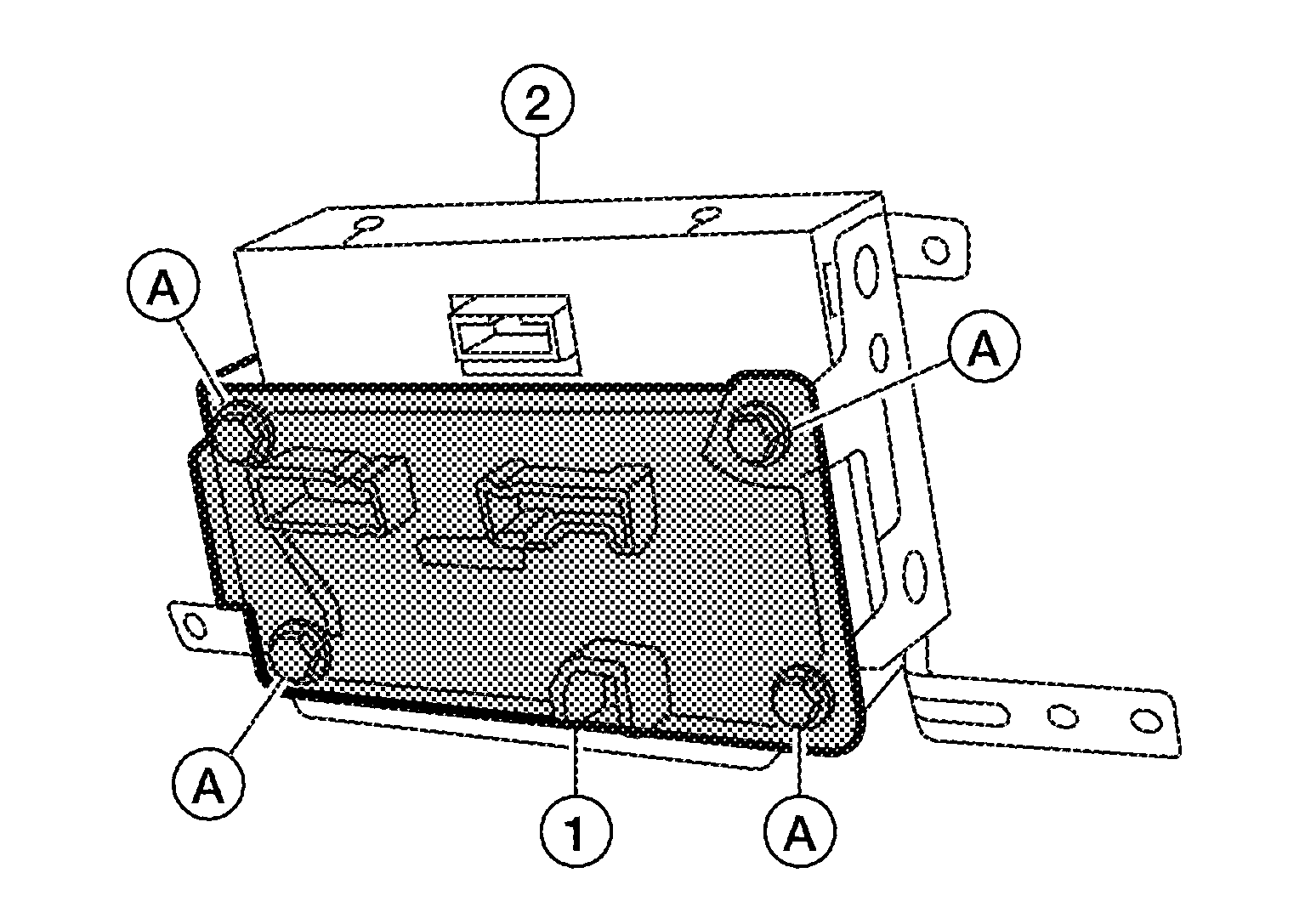

Fig 1: Identifying A/C Auto Amp., Display Unit And Mounting Screws
Courtesy of NISSAN NORTH AMERICA, INC.
