Warning Lamp Flash Code Chart

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

Fig 1: Warning Lamp Flash Pattern

G06556810

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Driver Air Bag Module Flash Pattern

G08118074

Courtesy of NISSAN NORTH AMERICA, INC.

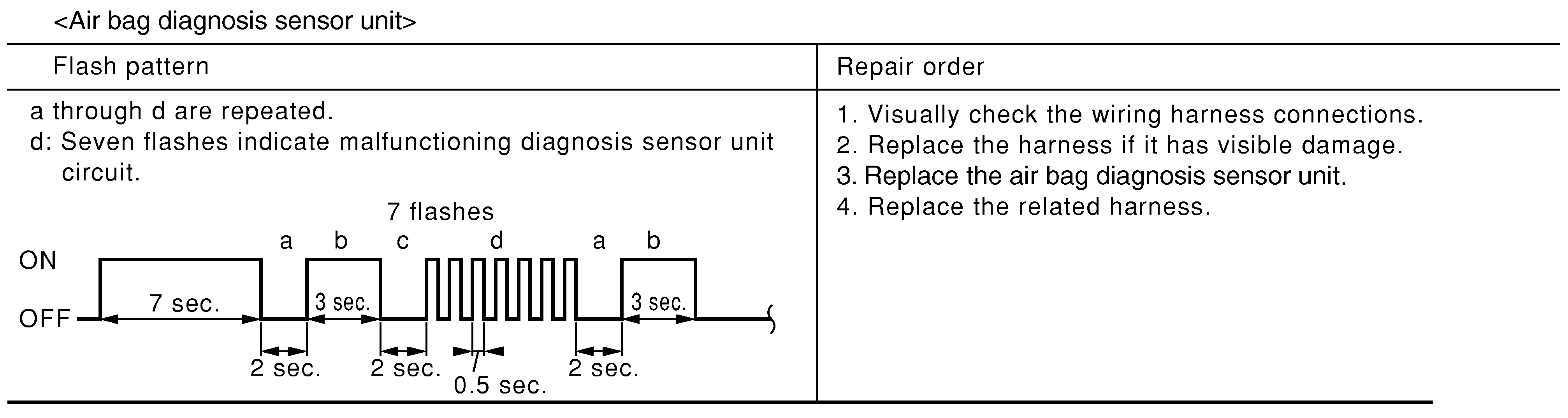

Fig 3: Air Bag Diagnosis Sensor Unit Flash Pattern

G04902393

Courtesy of NISSAN NORTH AMERICA, INC.

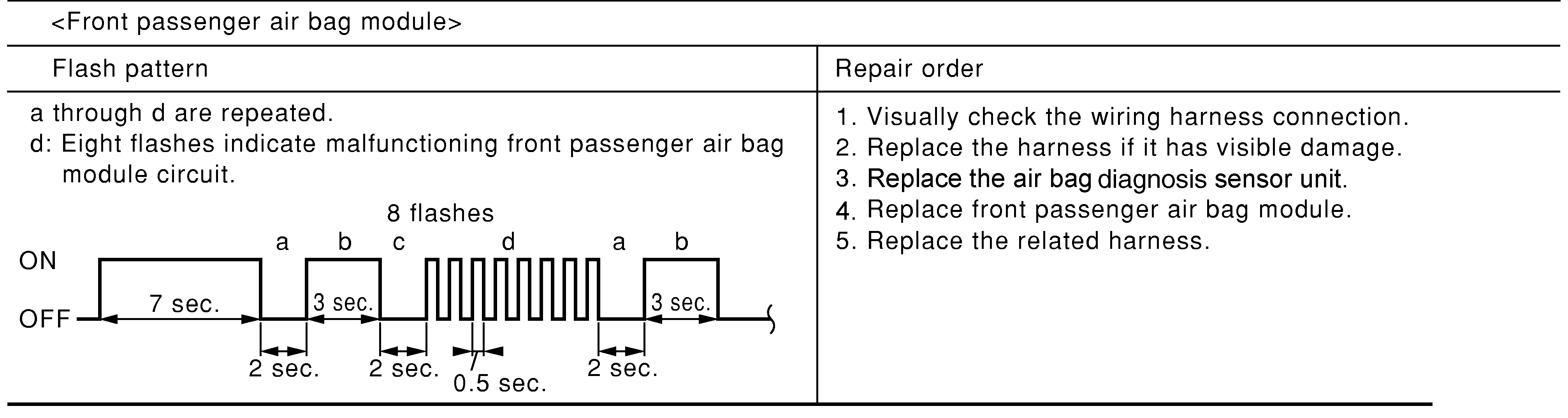

Fig 4: Front Passenger Air Bag Module Flash Pattern

G08118075

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Crash Zone Sensor Flash Pattern

G08694174

Courtesy of NISSAN NORTH AMERICA, INC.

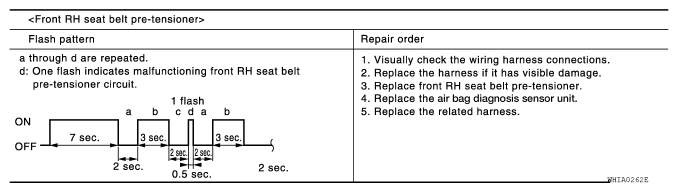

Fig 6: Front RH Seat Belt Pre-Tensioner Flash Pattern

G08694175

Courtesy of NISSAN NORTH AMERICA, INC.

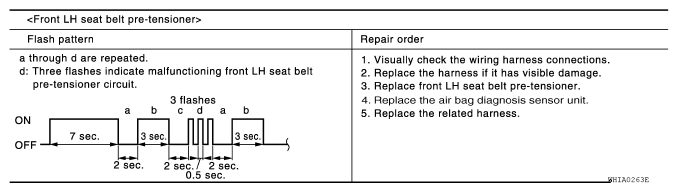

Fig 7: Front LH Seat Belt Pre-Tensioner Flash Pattern

G08694176

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: RH Seat Belt Buckle Pre-Tensioner Assembly Flash Pattern

G08694177

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: LH Seat Belt Buckle Pre-Tensioner Assembly Flash Pattern

G08694178

Courtesy of NISSAN NORTH AMERICA, INC.

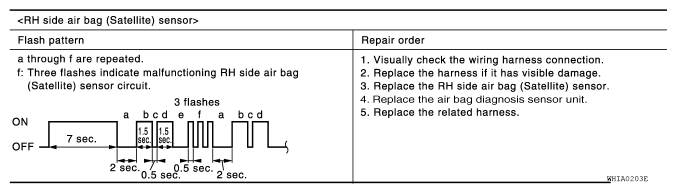

Fig 10: RH Side Air Bag Satellite Sensor Flash Pattern

G08694179

Courtesy of NISSAN NORTH AMERICA, INC.

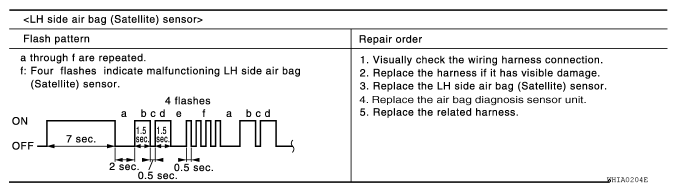

Fig 11: LH Side Air Bag Satellite Sensor Flash Pattern

G08694180

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Front RH Side Air Bag Module Flash Pattern

G08118077

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Front LH Side Air Bag Module Flash Pattern

G08118076

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Front LH Side Curtain Air Bag Module Flash Pattern

G08694156

Courtesy of NISSAN NORTH AMERICA, INC.

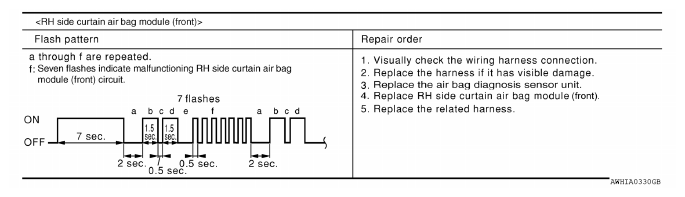

Fig 15: Front RH Side Curtain Air Bag Module Flash Pattern

G08694157

Courtesy of NISSAN NORTH AMERICA, INC.

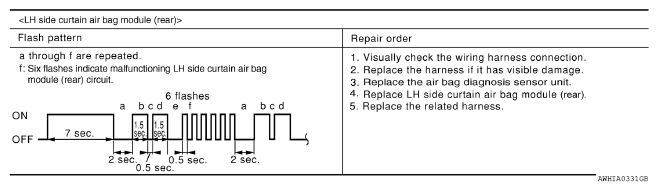

Fig 16: Rear LH Side Curtain Air Bag Module Flash Pattern

G08694158

Courtesy of NISSAN NORTH AMERICA, INC.

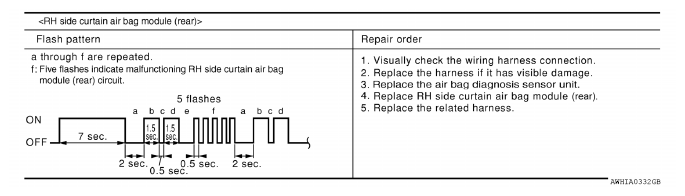

Fig 17: Rear RH Side Curtain Air Bag Module Flash Pattern

G08694159

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Occupant Classification System Flash Pattern

G08694187

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Front Passenger Air Bag Off Indicator Flash Pattern

G08694188

Courtesy of NISSAN NORTH AMERICA, INC.
