BOSE Audio System - Without Navigation System: Wiring Diagram

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

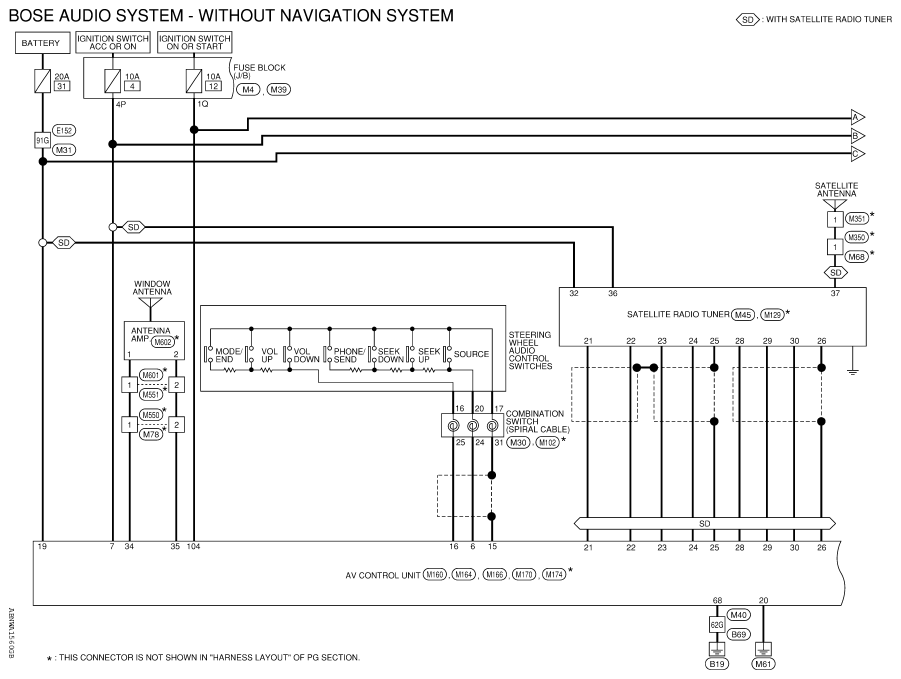

Fig 1: Bose Audio System - Without Navigation System - Wiring Diagram (1 Of 8)

G08698315

Courtesy of NISSAN NORTH AMERICA, INC.

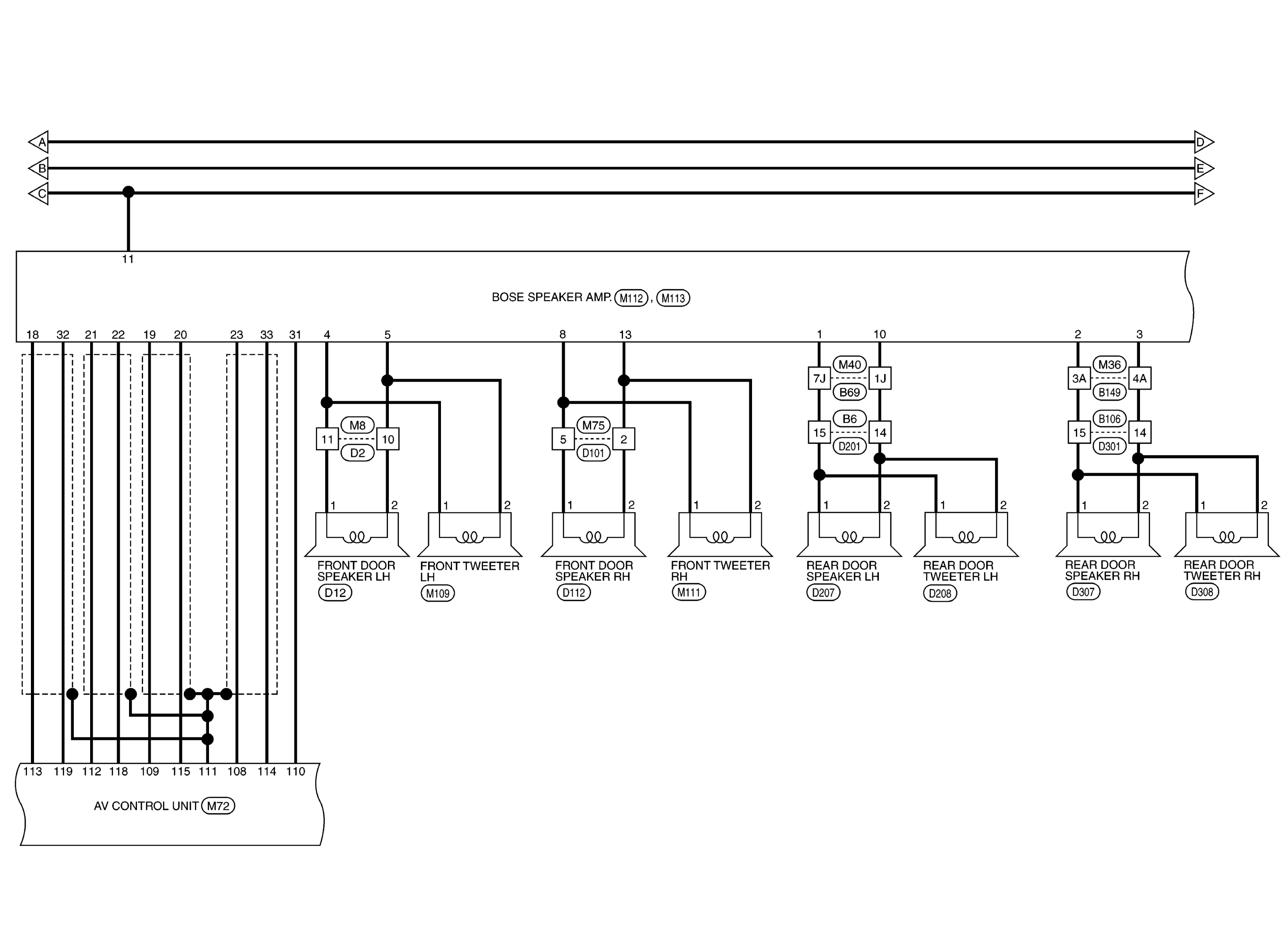

Fig 2: Bose Audio System - Without Navigation System - Wiring Diagram (2 Of 8)

G08698316

Courtesy of NISSAN NORTH AMERICA, INC.

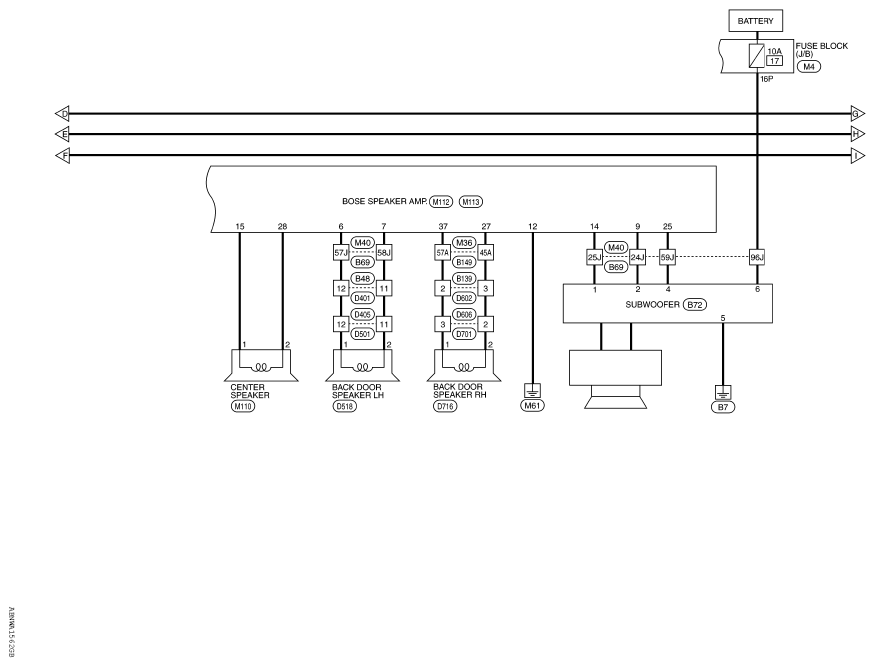

Fig 3: Bose Audio System - Without Navigation System - Wiring Diagram (3 Of 8)

G08698317

Courtesy of NISSAN NORTH AMERICA, INC.

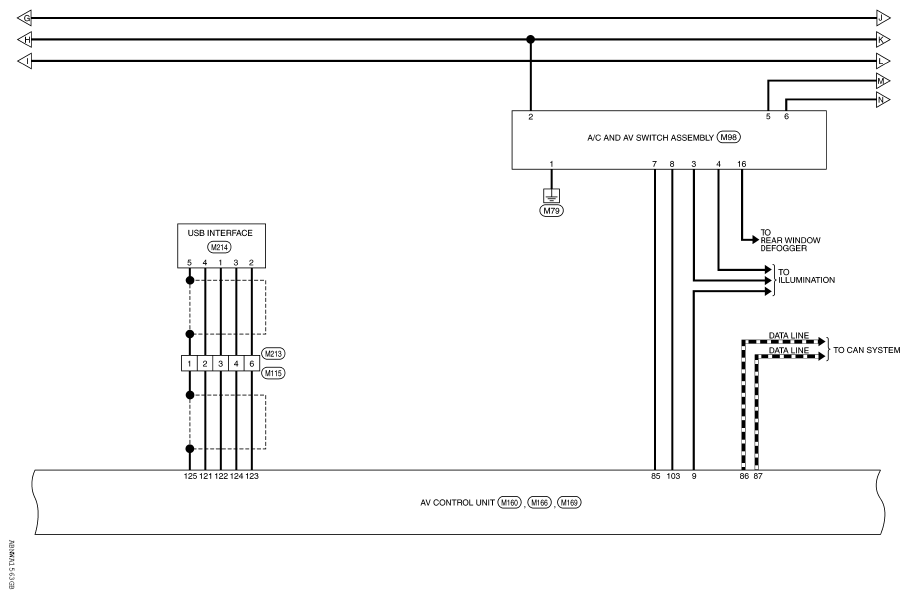

Fig 4: Bose Audio System - Without Navigation System - Wiring Diagram (4 Of 8)

G08698318

Courtesy of NISSAN NORTH AMERICA, INC.

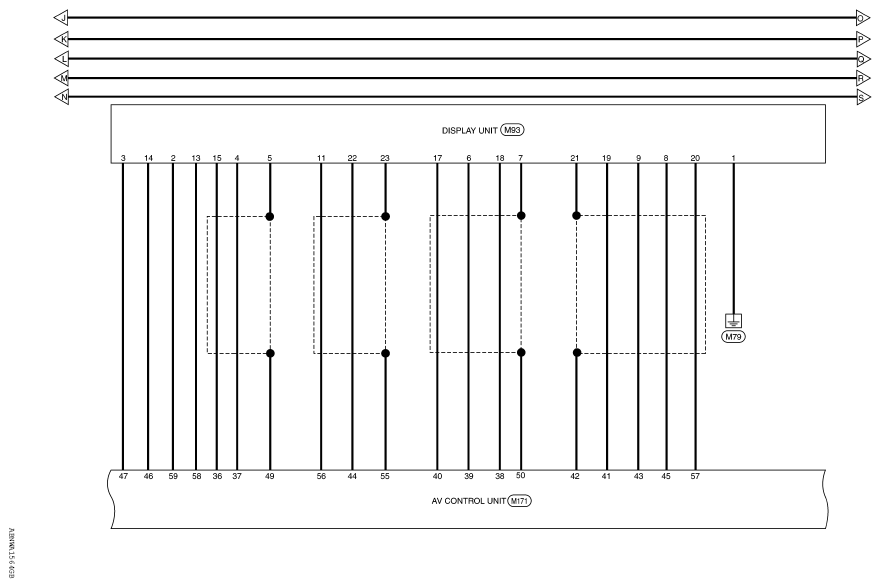

Fig 5: Bose Audio System - Without Navigation System - Wiring Diagram (5 Of 8)

G08698319

Courtesy of NISSAN NORTH AMERICA, INC.

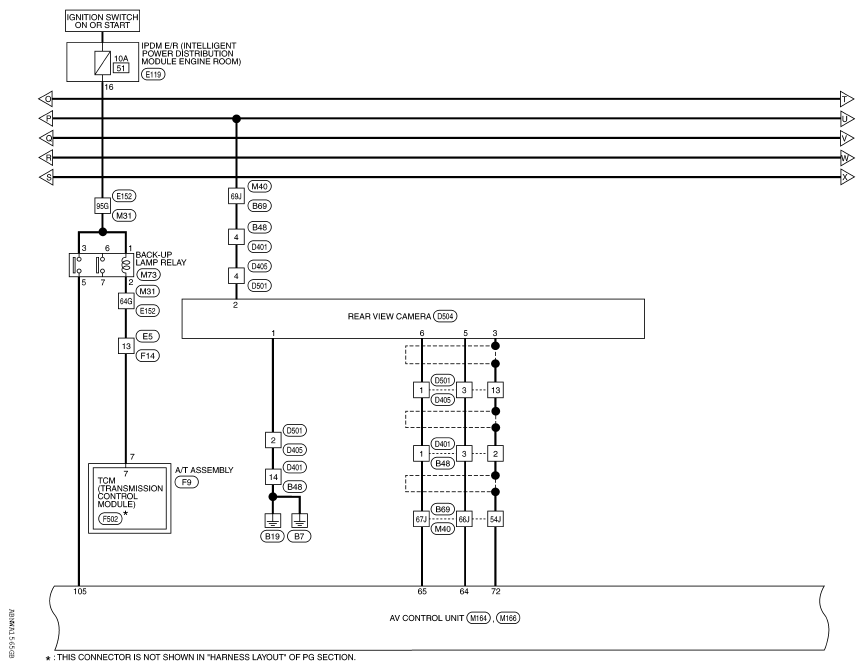

Fig 6: Bose Audio System - Without Navigation System - Wiring Diagram (6 Of 8)

G08698320

Courtesy of NISSAN NORTH AMERICA, INC.

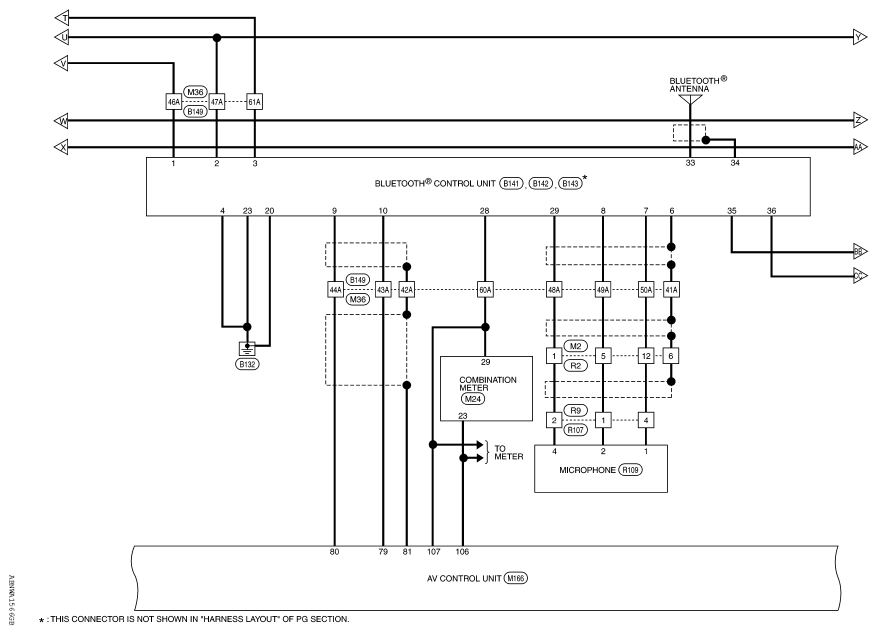

Fig 7: Bose Audio System - Without Navigation System - Wiring Diagram (7 Of 8)

G08698321

Courtesy of NISSAN NORTH AMERICA, INC.

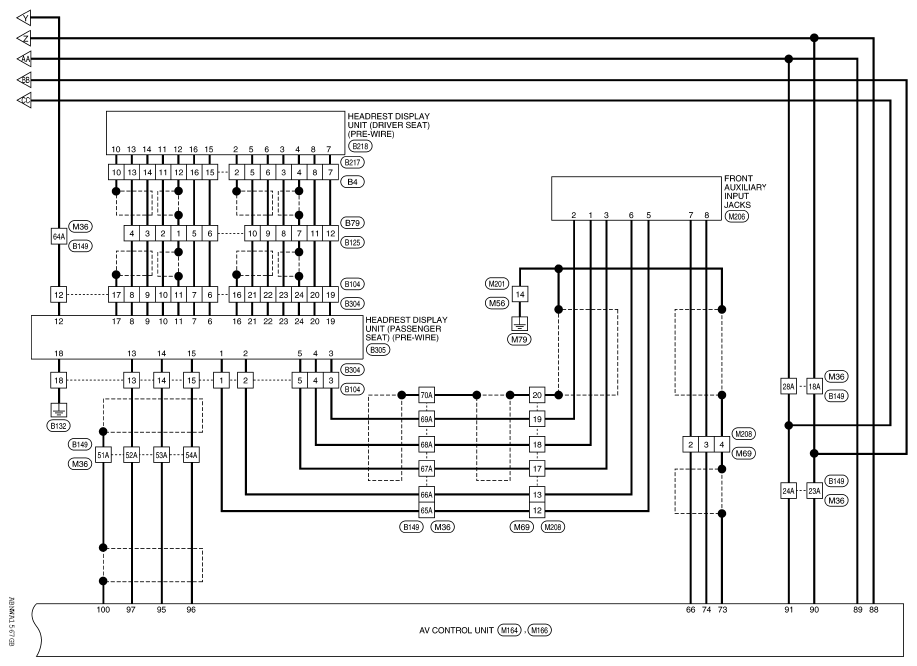

Fig 8: Bose Audio System - Without Navigation System - Wiring Diagram (8 Of 8)

G08698322

Courtesy of NISSAN NORTH AMERICA, INC.

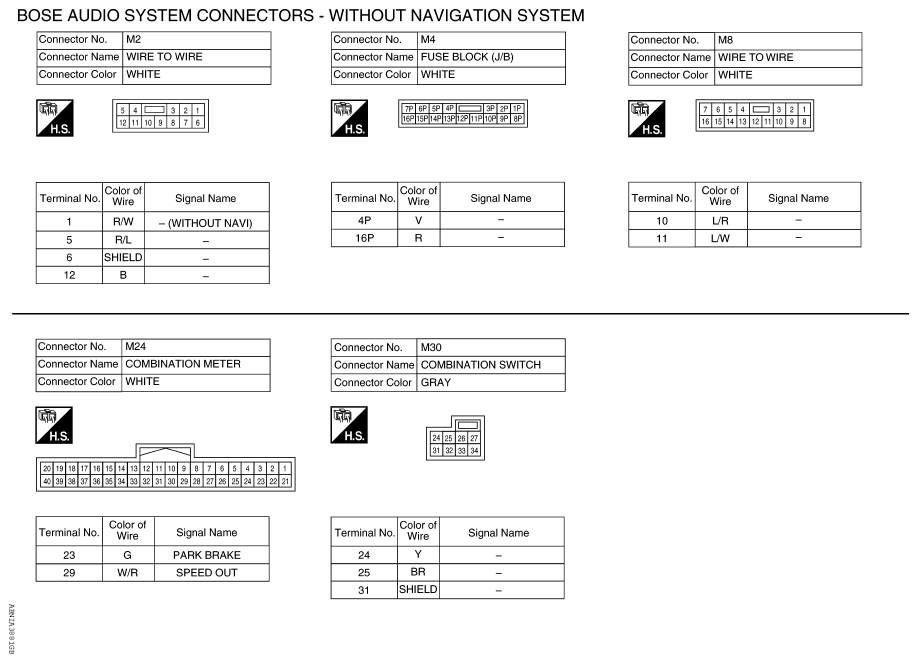

Fig 9: Bose Audio System Connectors - Without Navigation System Connector End View (1 Of 22)

G08698323

Courtesy of NISSAN NORTH AMERICA, INC.

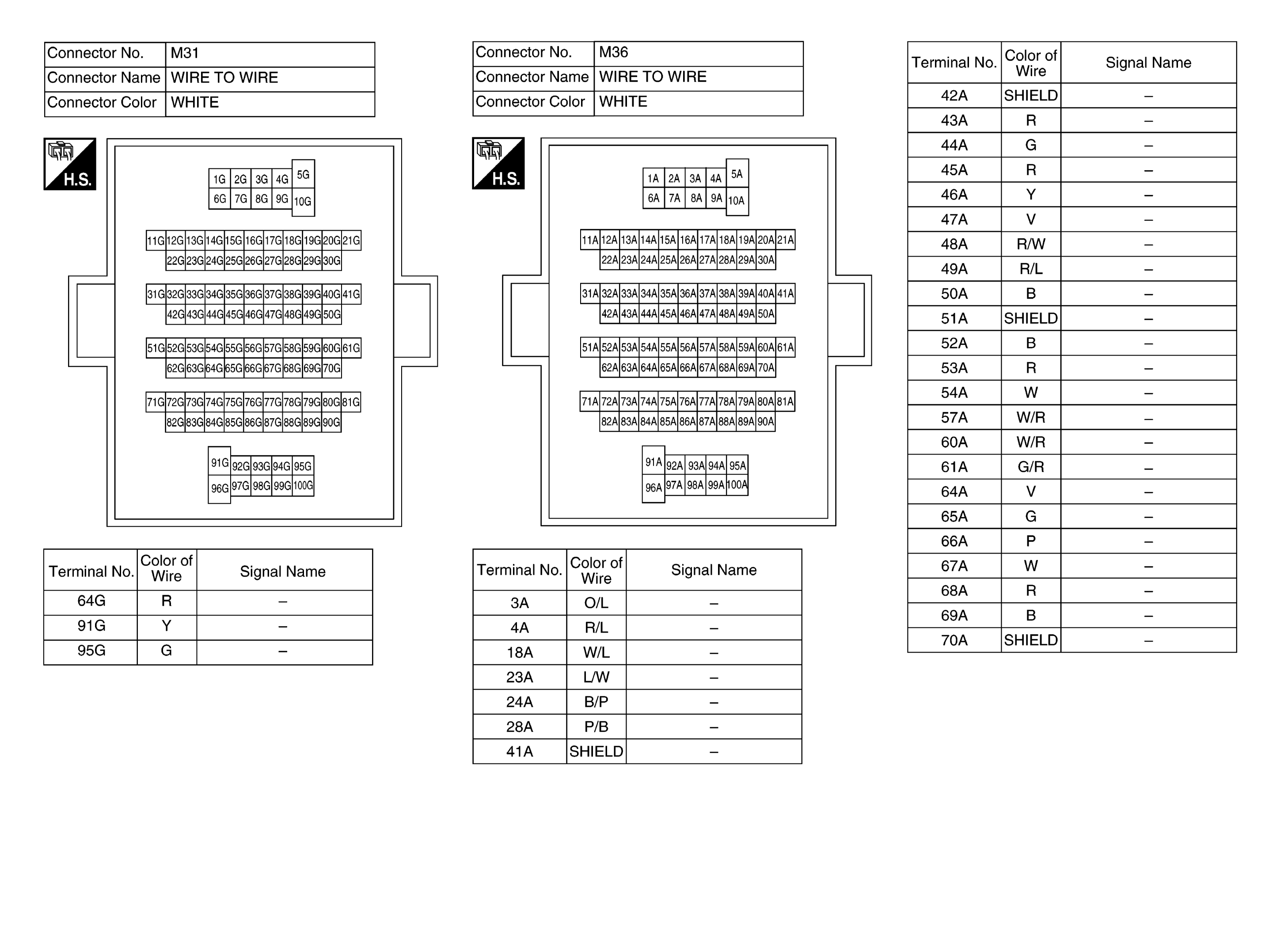

Fig 10: Bose Audio System Connectors - Without Navigation System Connector End View (2 Of 22)

G08698324

Courtesy of NISSAN NORTH AMERICA, INC.

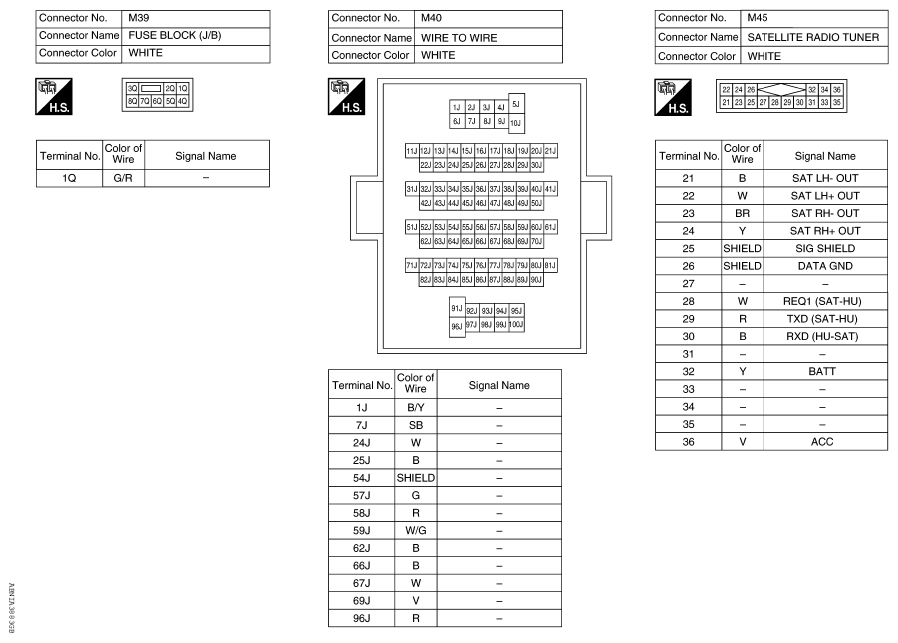

Fig 11: Bose Audio System Connectors - Without Navigation System Connector End View (3 Of 22)

G08698325

Courtesy of NISSAN NORTH AMERICA, INC.

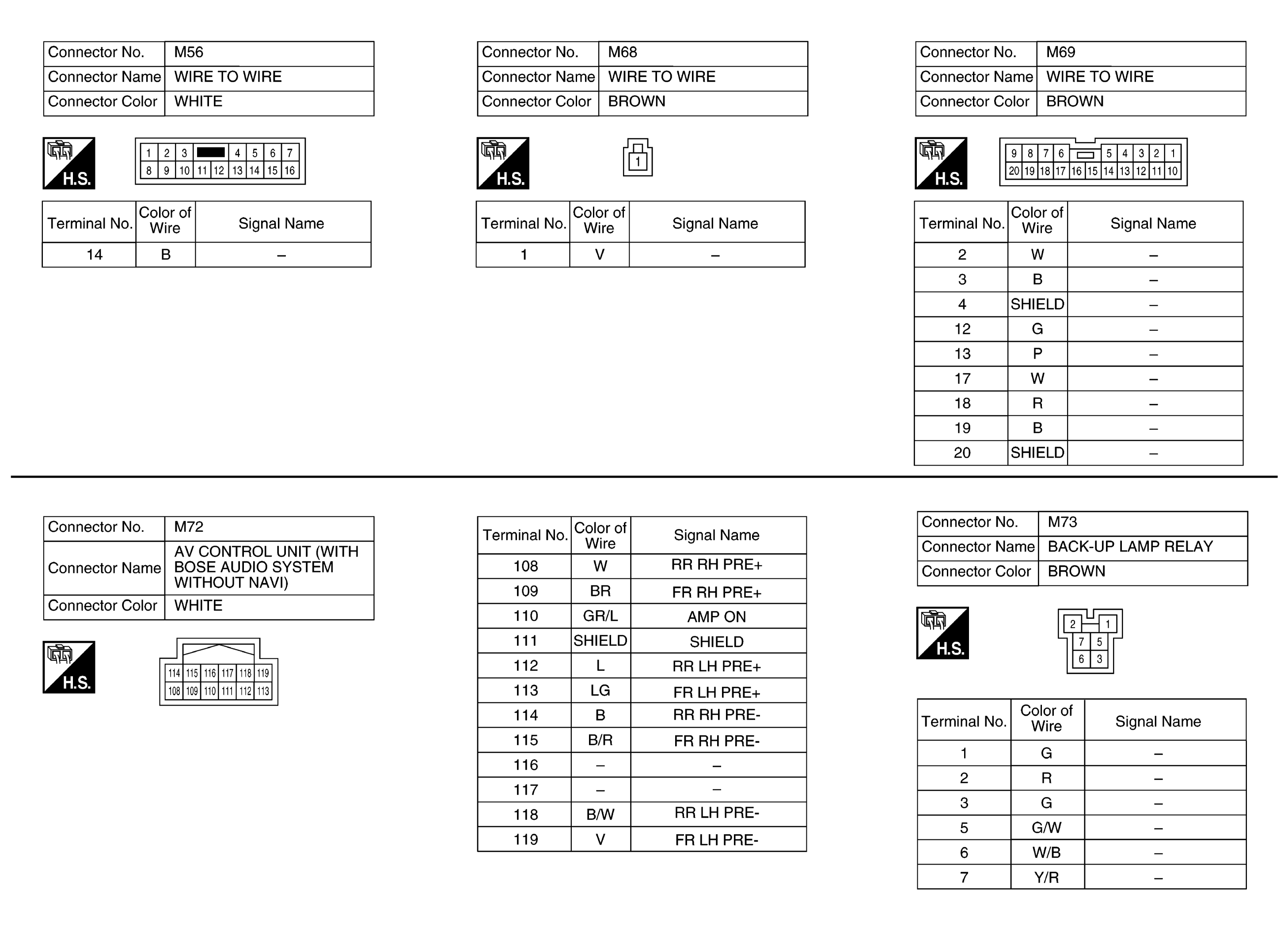

Fig 12: Bose Audio System Connectors - Without Navigation System Connector End View (4 Of 22)

G08698326

Courtesy of NISSAN NORTH AMERICA, INC.

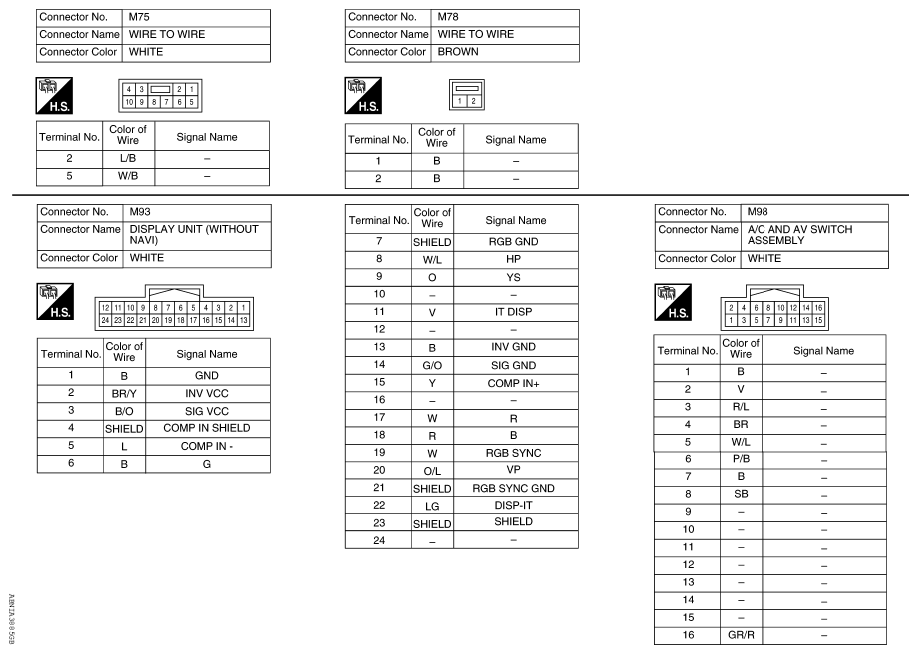

Fig 13: Bose Audio System Connectors - Without Navigation System Connector End View (5 Of 22)

G08698327

Courtesy of NISSAN NORTH AMERICA, INC.

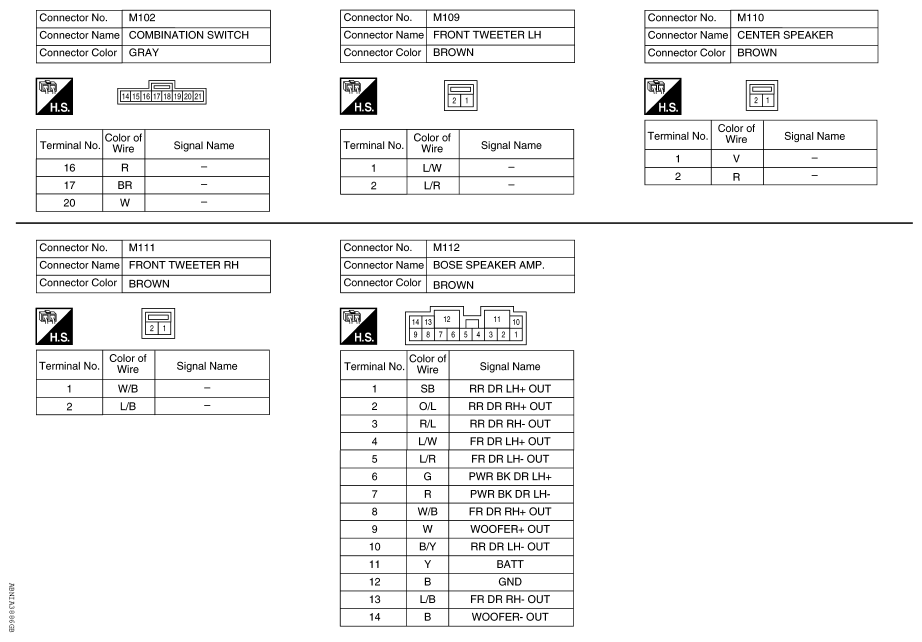

Fig 14: Bose Audio System Connectors - Without Navigation System Connector End View (6 Of 22)

G08698328

Courtesy of NISSAN NORTH AMERICA, INC.

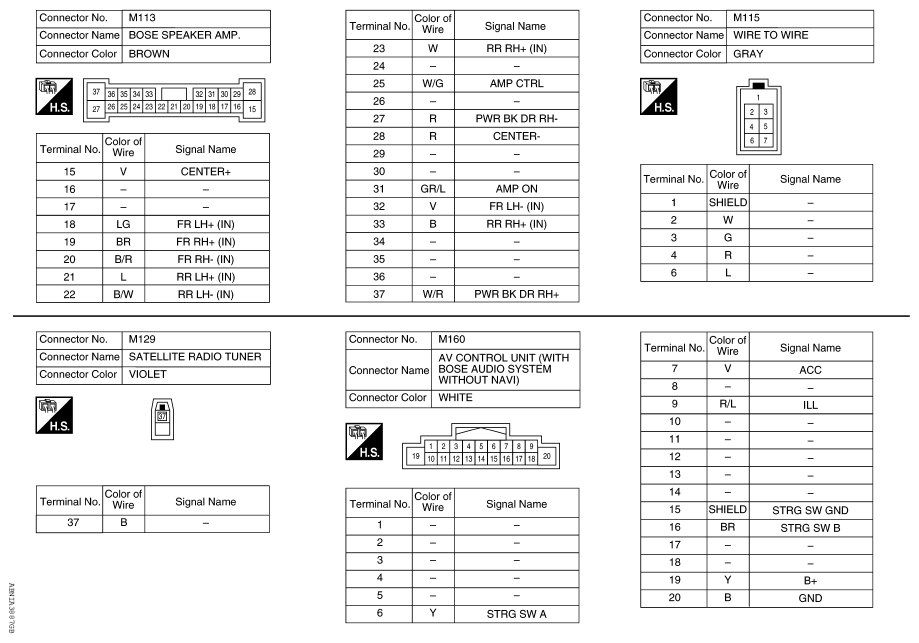

Fig 15: Bose Audio System Connectors - Without Navigation System Connector End View (7 Of 22)

G08698329

Courtesy of NISSAN NORTH AMERICA, INC.

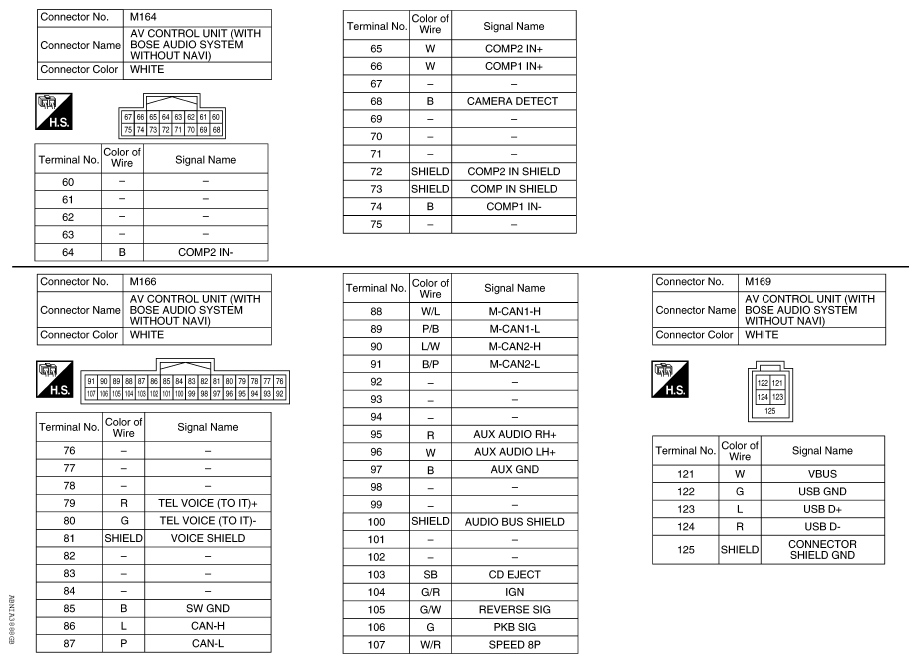

Fig 16: Bose Audio System Connectors - Without Navigation System Connector End View (8 Of 22)

G08698330

Courtesy of NISSAN NORTH AMERICA, INC.

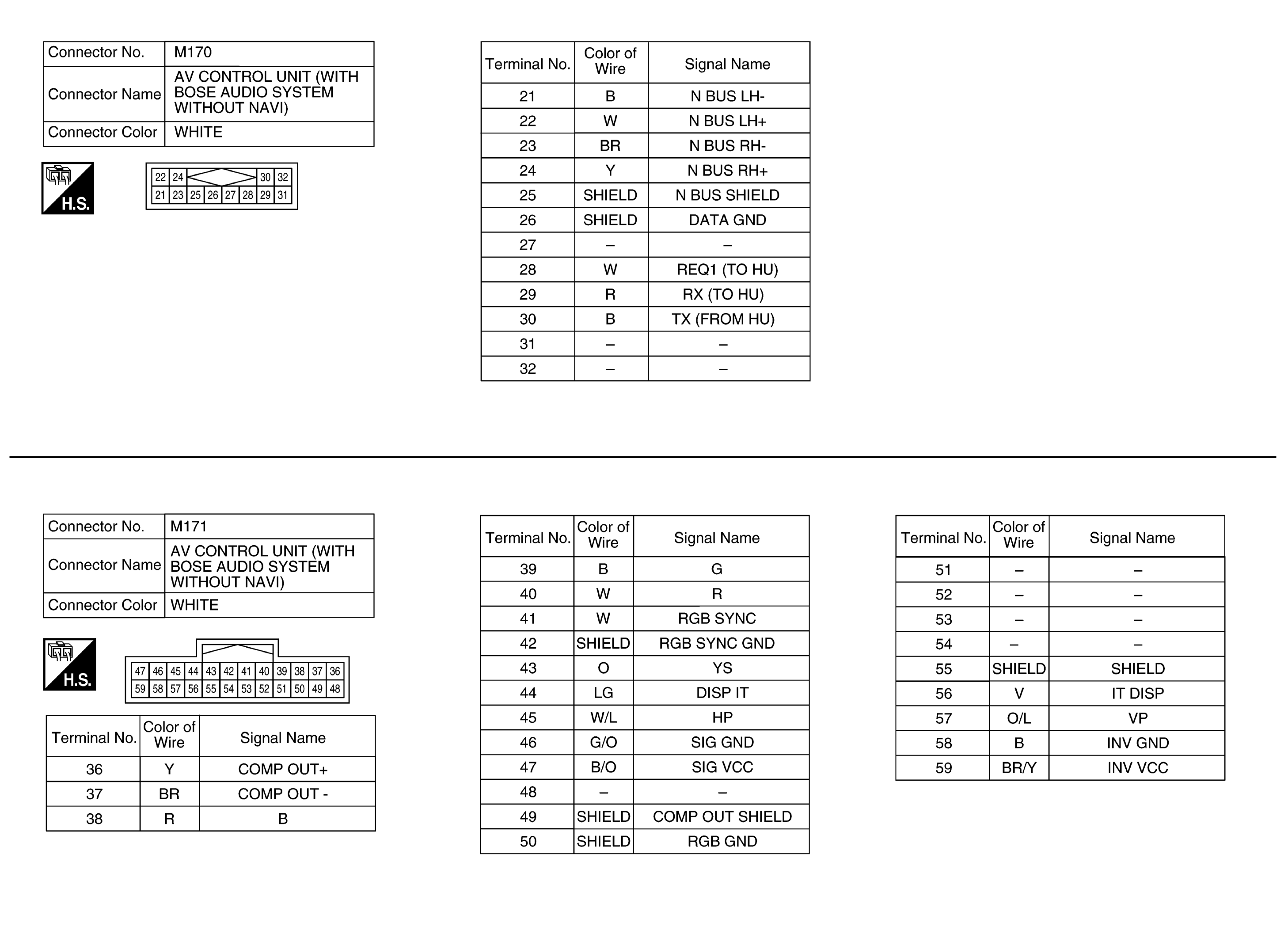

Fig 17: Bose Audio System Connectors - Without Navigation System Connector End View (9 Of 22)

G08698331

Courtesy of NISSAN NORTH AMERICA, INC.

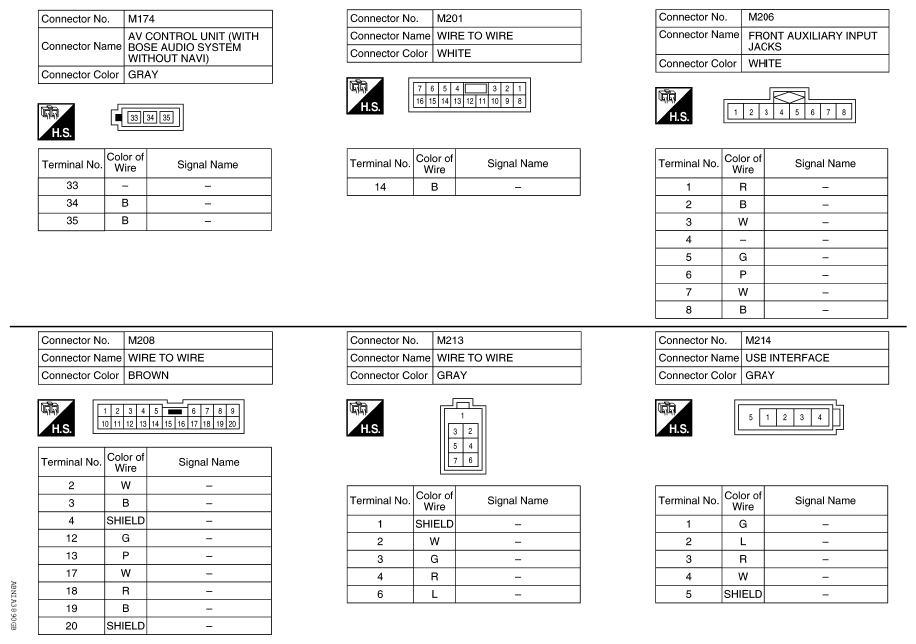

Fig 18: Bose Audio System Connectors - Without Navigation System Connector End View (10 Of 22)

G08698332

Courtesy of NISSAN NORTH AMERICA, INC.

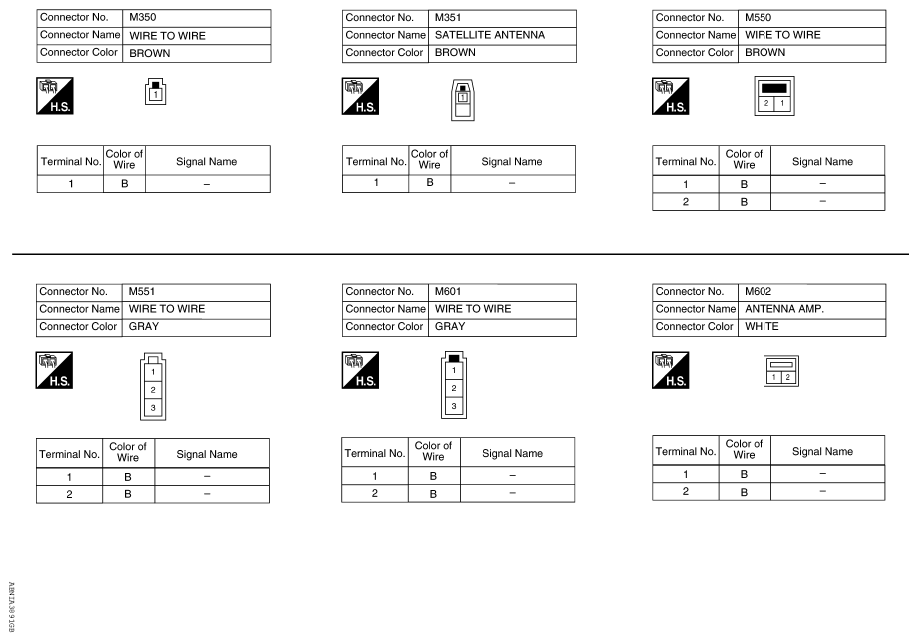

Fig 19: Bose Audio System Connectors - Without Navigation System Connector End View (11 Of 22)

G08698333

Courtesy of NISSAN NORTH AMERICA, INC.

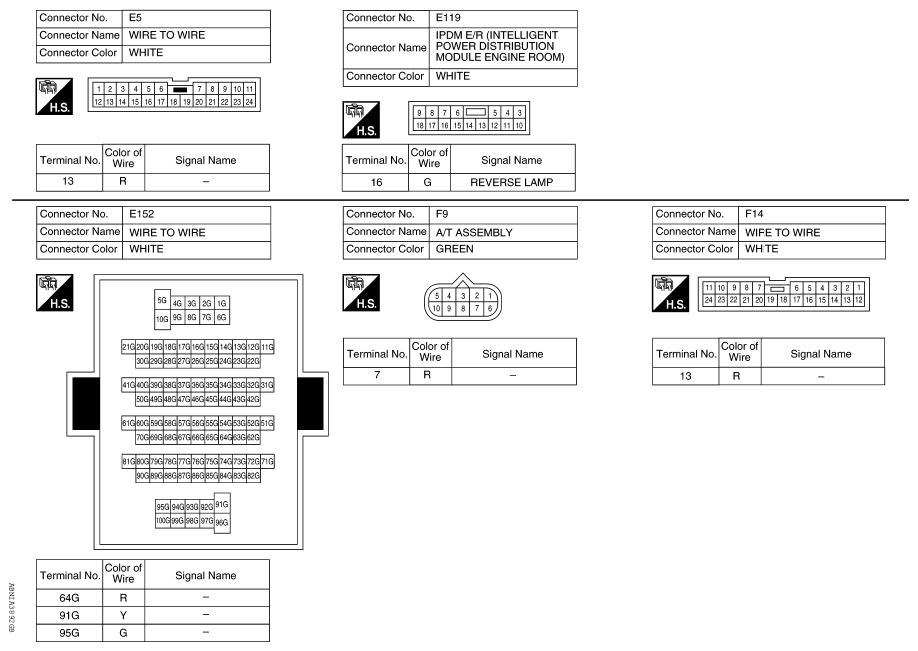

Fig 20: Bose Audio System Connectors - Without Navigation System Connector End View (12 Of 22)

G08698334

Courtesy of NISSAN NORTH AMERICA, INC.

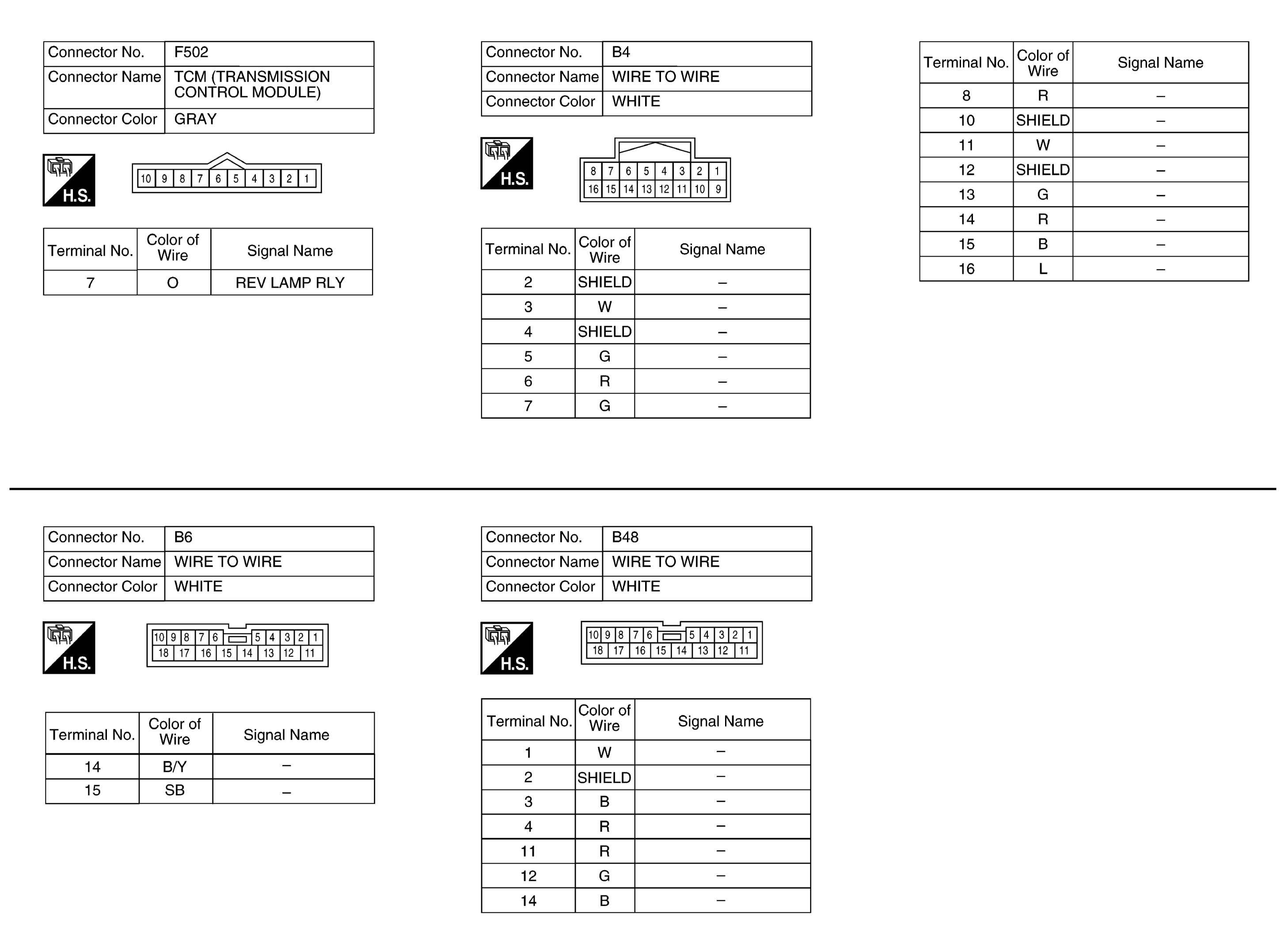

Fig 21: Bose Audio System Connectors - Without Navigation System Connector End View (13 Of 22)

G08698335

Courtesy of NISSAN NORTH AMERICA, INC.

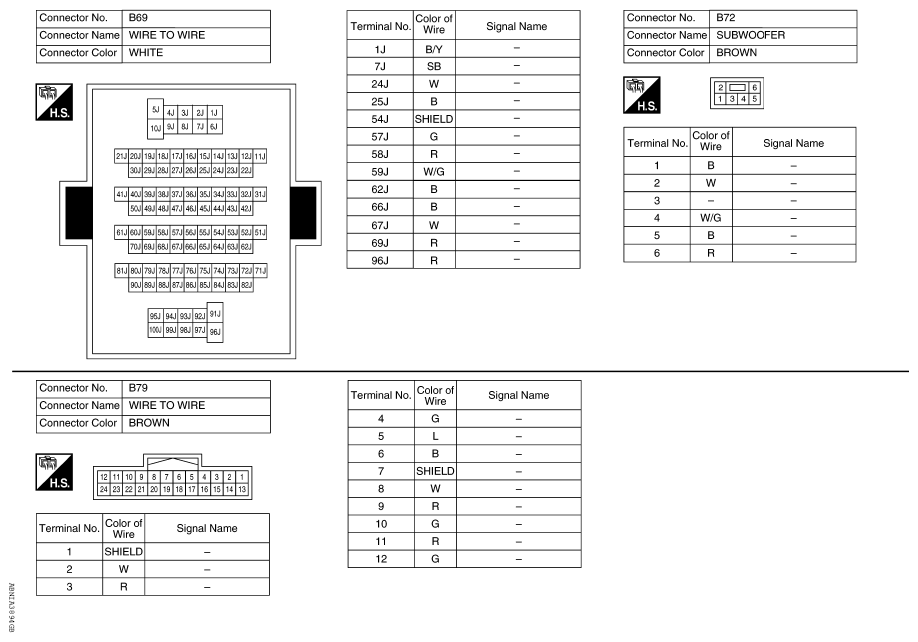

Fig 22: Bose Audio System Connectors - Without Navigation System Connector End View (14 Of 22)

G08698336

Courtesy of NISSAN NORTH AMERICA, INC.

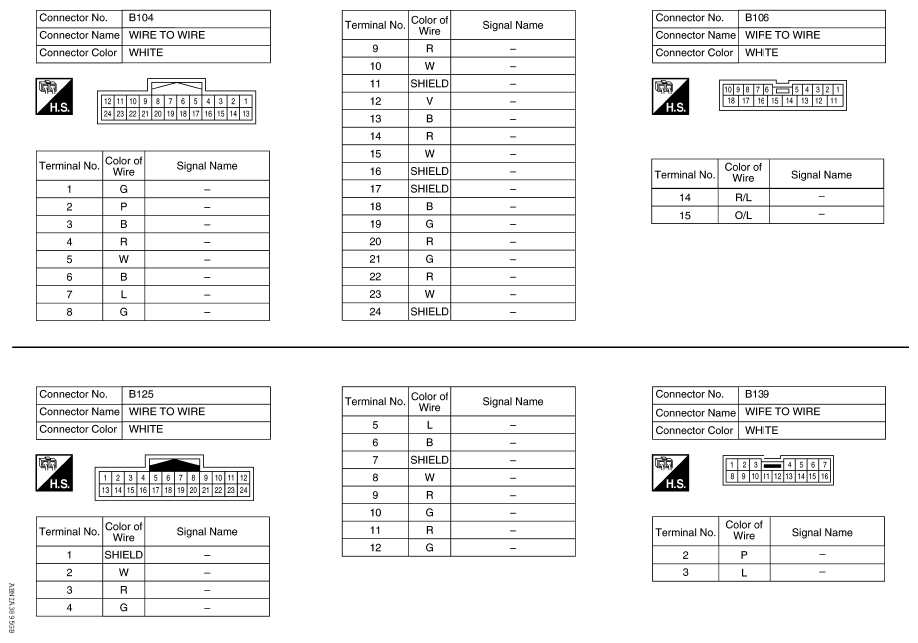

Fig 23: Bose Audio System Connectors - Without Navigation System Connector End View (15 Of 22)

G08698337

Courtesy of NISSAN NORTH AMERICA, INC.

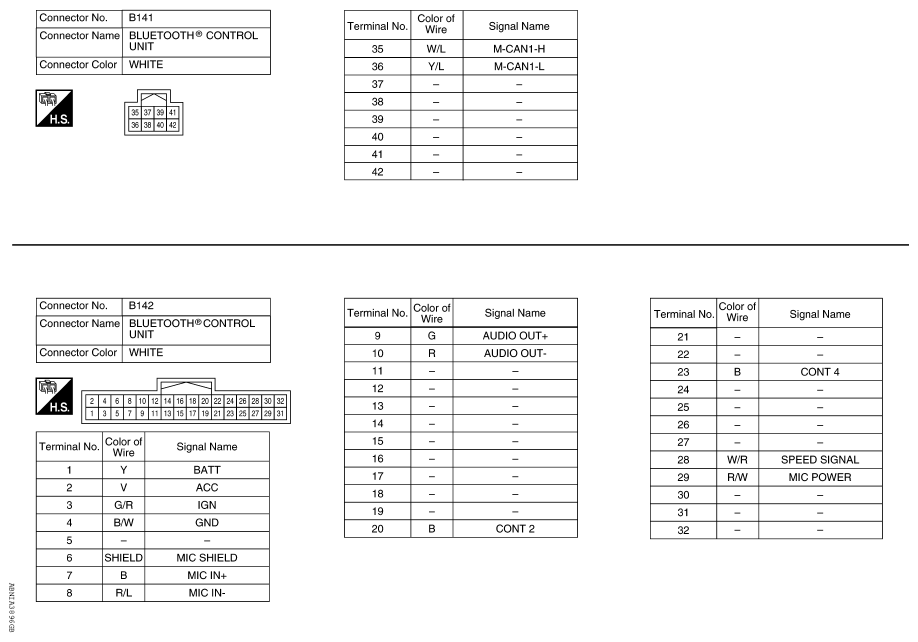

Fig 24: Bose Audio System Connectors - Without Navigation System Connector End View (16 Of 22)

G08698338

Courtesy of NISSAN NORTH AMERICA, INC.

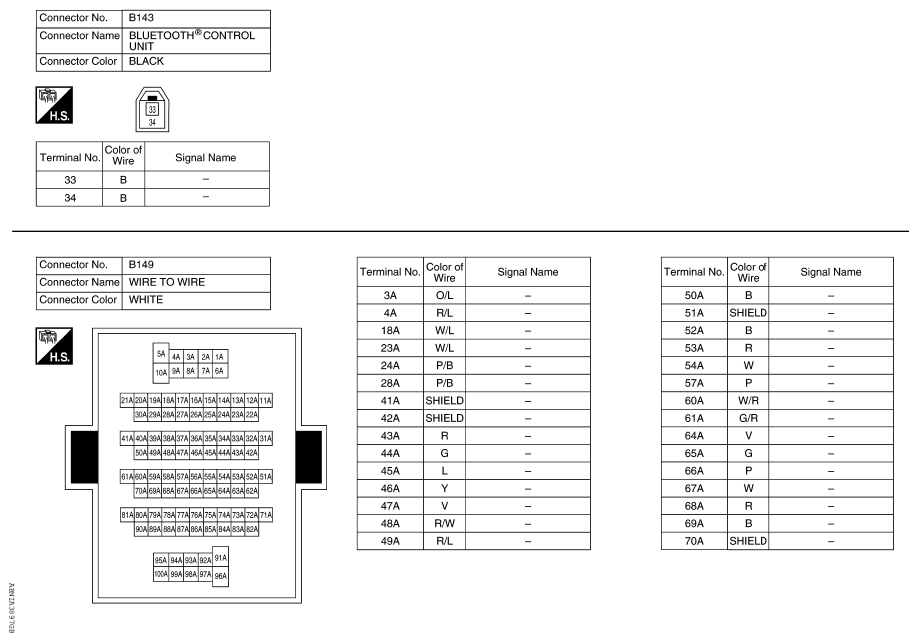

Fig 25: Bose Audio System Connectors - Without Navigation System Connector End View (17 Of 22)

G08698339

Courtesy of NISSAN NORTH AMERICA, INC.

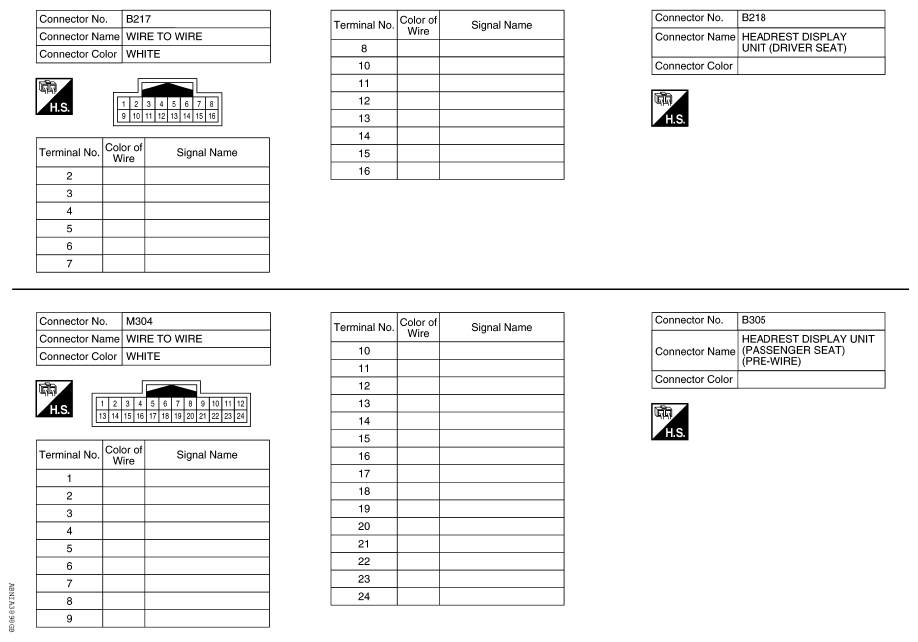

Fig 26: Bose Audio System Connectors - Without Navigation System Connector End View (18 Of 22)

G08698340

Courtesy of NISSAN NORTH AMERICA, INC.

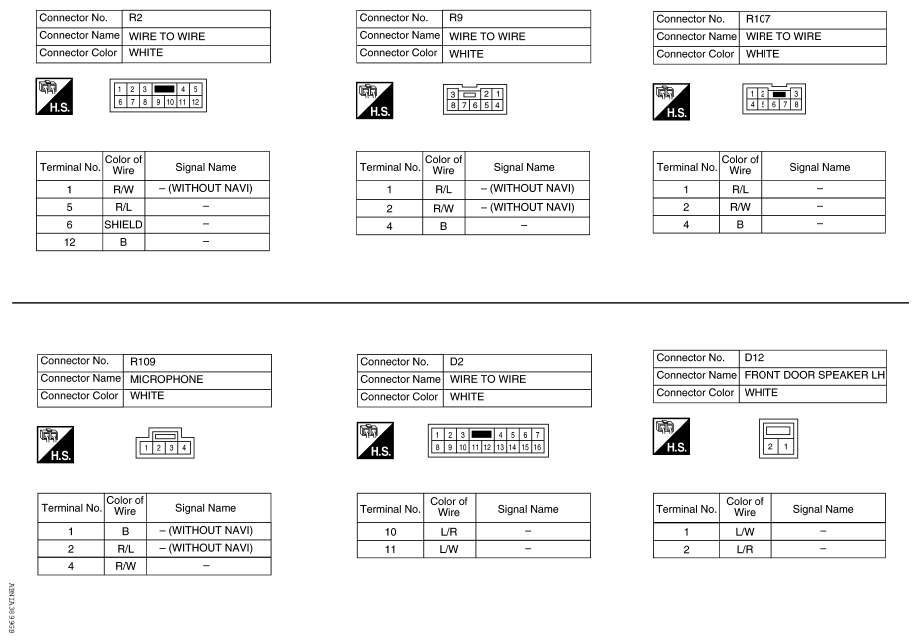

Fig 27: Bose Audio System Connectors - Without Navigation System Connector End View (19 Of 22)

G08698341

Courtesy of NISSAN NORTH AMERICA, INC.

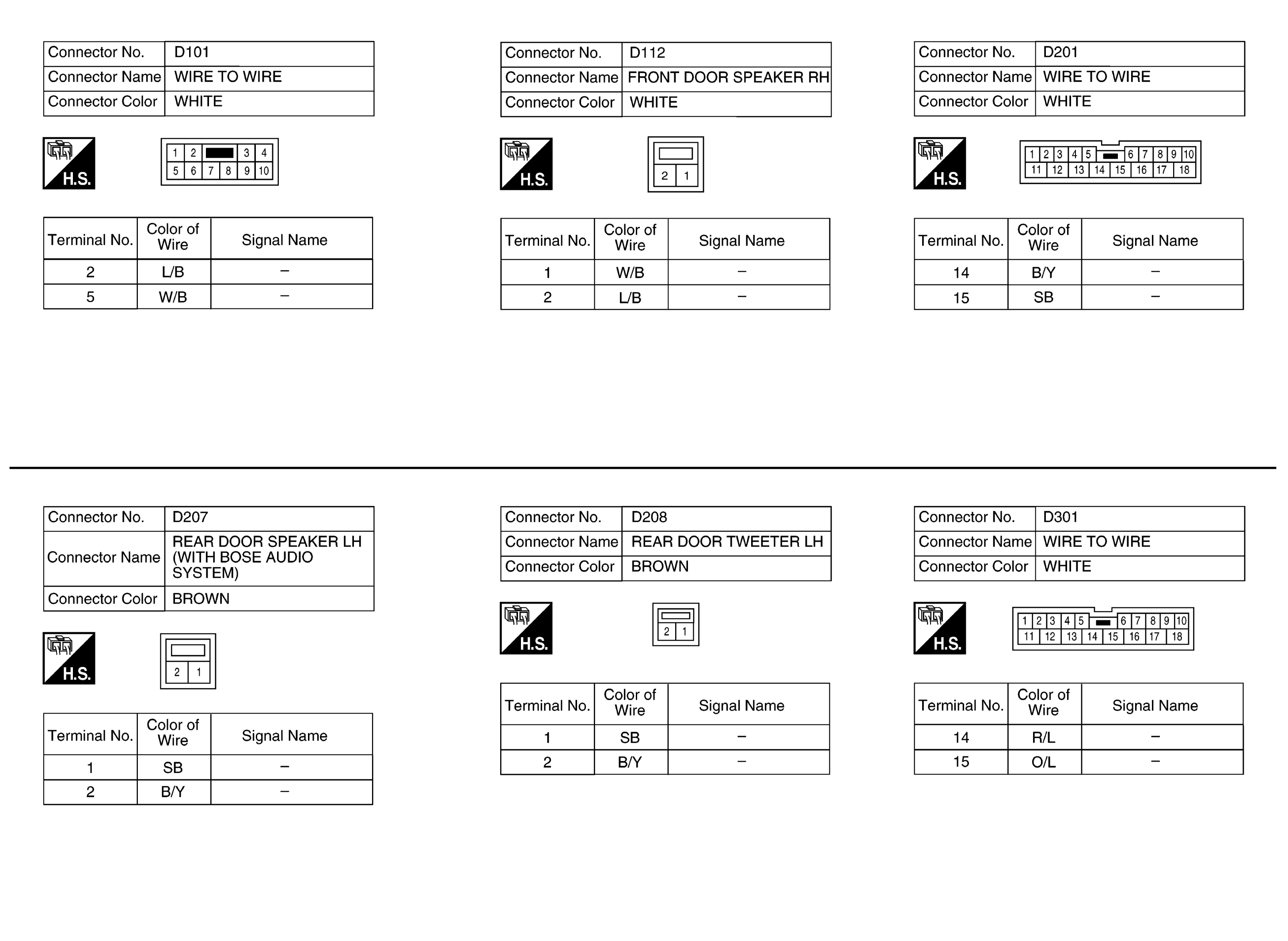

Fig 28: Bose Audio System Connectors - Without Navigation System Connector End View (20 Of 22)

G08698342

Courtesy of NISSAN NORTH AMERICA, INC.

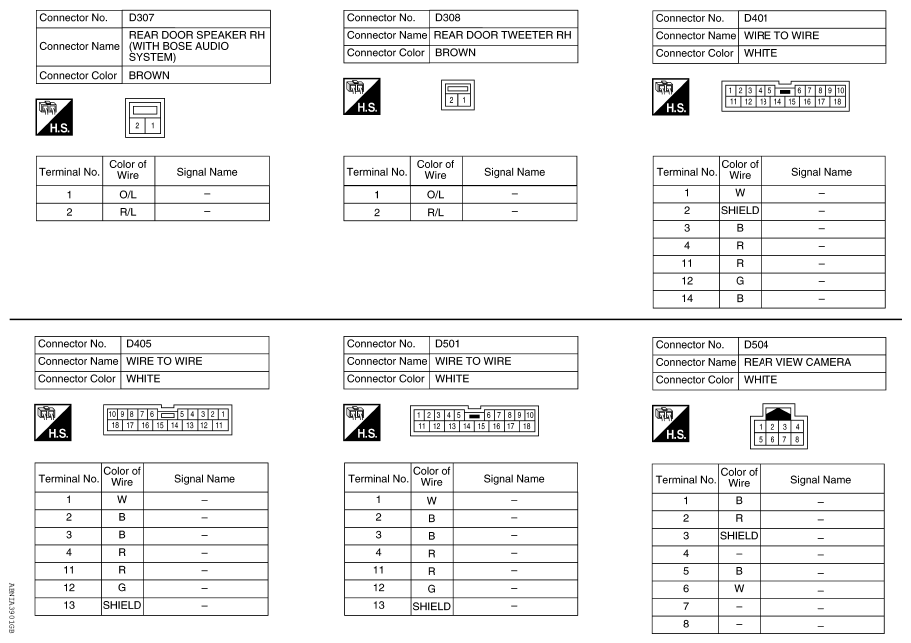

Fig 29: Bose Audio System Connectors - Without Navigation System Connector End View (21 Of 22)

G08698343

Courtesy of NISSAN NORTH AMERICA, INC.

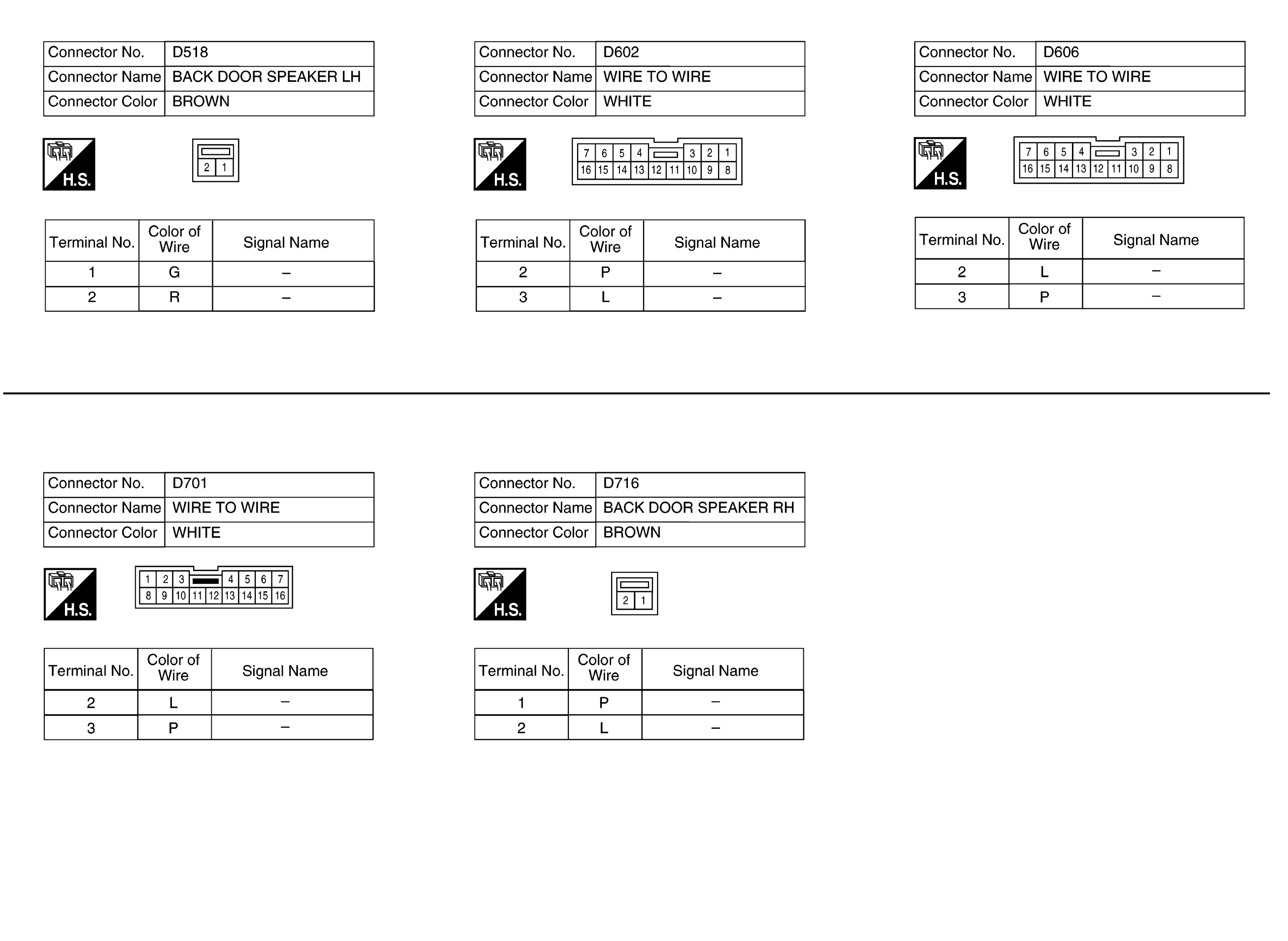

Fig 30: Bose Audio System Connectors - Without Navigation System Connector End View (22 Of 22)

G08698344

Courtesy of NISSAN NORTH AMERICA, INC.
