Confirmation/Adjustment Mode

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
Select each item on the "Confirmation/Adjustment" mode screen to display the relevant trouble diagnosis screen. Touch "BACK" on the display unit or press the "BACK" switch to return to the initial Confirmation/Adjustment Mode screen.

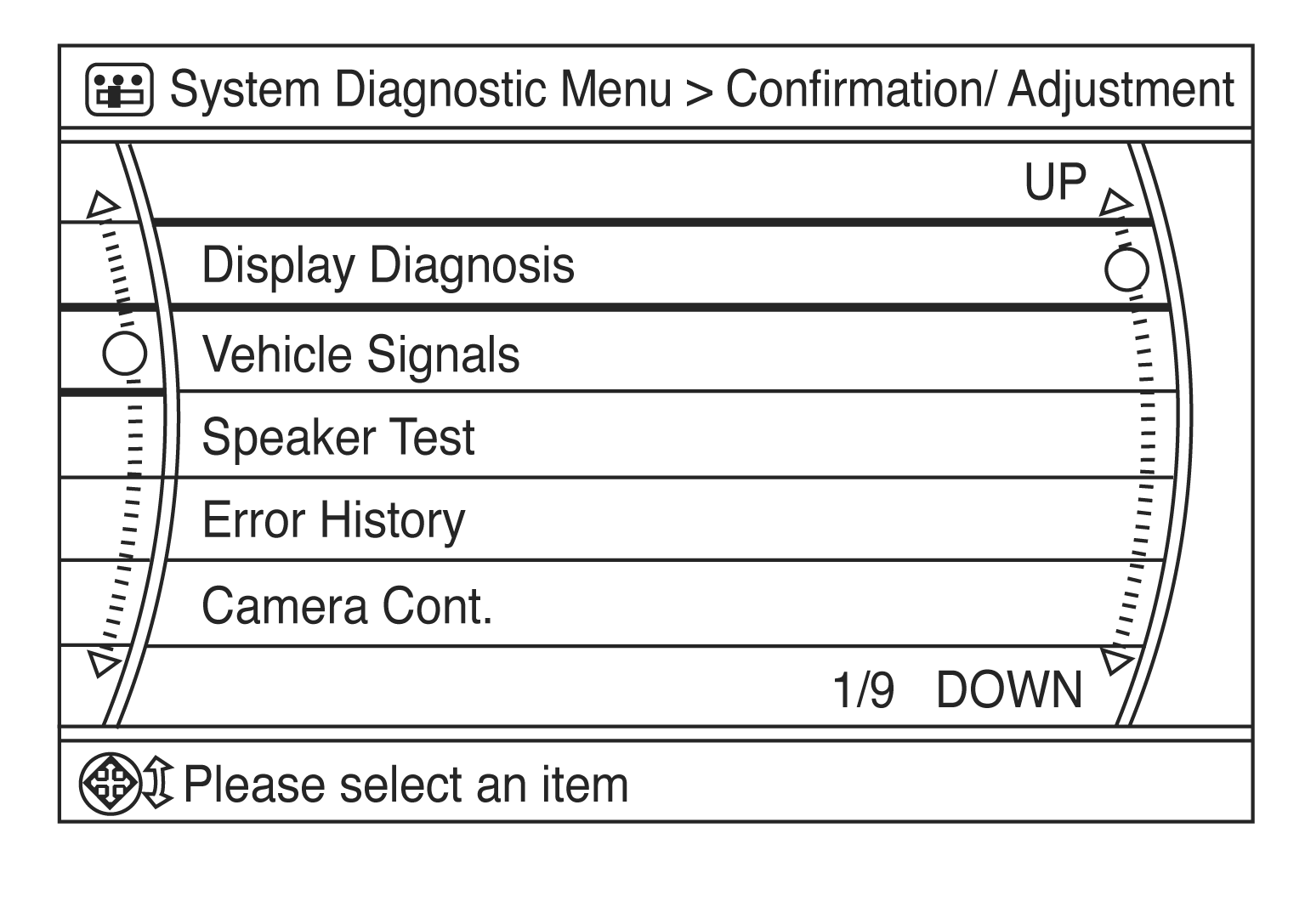

Fig 1: Display - Confirmation/Adjustment Mode Screen
Courtesy of NISSAN NORTH AMERICA, INC.

Display Diagnosis

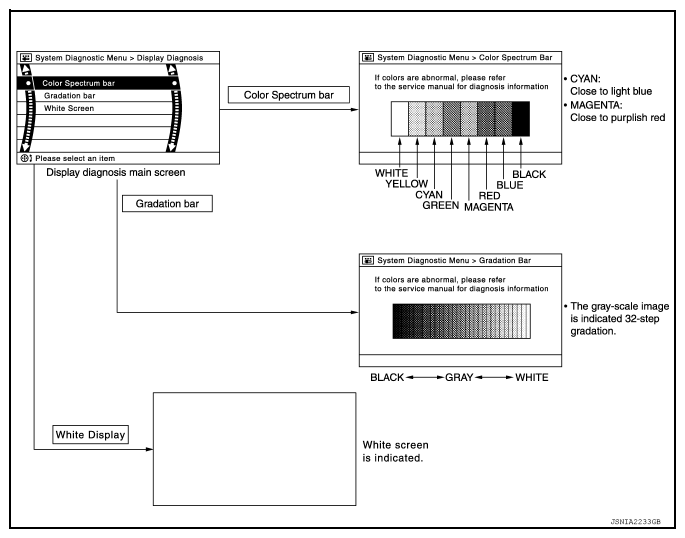

Fig 2: Display - Diagnosis Main Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Fig 3: Display - Vehicle Signals Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Diagnosis item	Display	Vehicle status	Remarks
Vehicle speed	ON	Vehicle speed > 0 km/h	Changes in indication may be delayed by approximately 1.5 seconds. This is normal.
	OFF	Vehicle speed = 0 km/h
	-	Ignition switch in ACC position
Parking brake	ON	Parking brake is applied.
Parking brake	OFF	Parking brake is released.
Lights	ON	Light switch ON	Block the light beam from the auto light optical sensor.
Lights	OFF	Light switch OFF	Block the light beam from the auto light optical sensor.
Ignition	ON	Ignition switch ON	-
Ignition	OFF	Ignition switch in ACC position	-
Reverse	ON	Selector lever in R position	Changes in indication may be delayed by approximately 1.5 seconds. This is normal.
	OFF	Selector lever in any position other than R
	-	Ignition switch in ACC position

Speaker Test

Select "Speaker Test" to display the speaker diagnosis screen. Press "Start" to generate a test tone in speakers. Press "End" to stop the test tones.

Fig 4: Display - Speaker Diagnosis Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error History" to detect any error that may have occurred before the self-diagnosis start because of this situation.

Count up method A

Fig 5: Display - Error History Screen

Courtesy of NISSAN NORTH AMERICA, INC.

The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Count up method B

The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Display method of occurrence frequency	Error history display item
Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B	Other than above

Camera Cont.

The two functions of "Correct Draw Line of Rear view Cam", "Confirm Configuration" are available.

Fig 6: Display - Camera Cont Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Adjust Offset of Rear view Camera

Use this mode to adjust the guide line display position of the rear view monitor if necessary after removing the rear view monitor camera.
CAUTION: After the adjustment, never perform other operations for one minute.

Fig 7: Display - Adjust Offset Of Rear View Camera Screen
Courtesy of NISSAN NORTH AMERICA, INC.

Factory Configuration Confirmation

Configuration stored in the AV control unit can be checked.

Fig 8: Display - Factory Configuration Confirmation Screen
Courtesy of NISSAN NORTH AMERICA, INC.

Vehicle CAN Diagnosis

CAN communication status and error counter is displayed.
The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
The error counter is erased if reset.

Fig 9: Display - Vehicle Can Diagnosis Screen
Courtesy of NISSAN NORTH AMERICA, INC.

AV COMM Diagnosis

AV communication status and error counter is displayed.
The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
The error counter is erased if reset.

Fig 10: Display - AV Comm Diagnosis Screen
Courtesy of NISSAN NORTH AMERICA, INC.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed)

Fig 11: Display - Delete Connection Log Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Initialize Settings

Initializes the AV control unit memory.

Fig 12: Display - Initialize Settings Screen
