Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the accelerator pedal. Refer to "UNIT REMOVAL AND INSTALLATION ".
Remove the BCM. Refer to "REMOVAL AND INSTALLATION ".
Remove the BOSE amp. Refer to "REMOVAL AND INSTALLATION ".
Remove the satellite radio tuner.
1. Disconnect the harness connectors from the satellite radio tuner.
2. Remove the satellite radio tuner bracket screws.
3. Slide the satellite radio tuner bracket down.

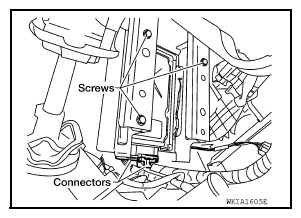

  Fig 1: Identifying Bose Amp Bracket Screws And Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.
Remove the satellite radio tuner screws (A), then separate the satellite radio tuner from satellite radio tuner bracket (1).

Fig 2: Identifying Satellite Radio Tuner Bracket And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
