Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center speaker grille finisher (1), using a suitable tool.
  2. Disconnect the harness connector (A) from the center speaker.
  3. Remove the center speaker screws (B).
  4. Remove the center speaker (2).

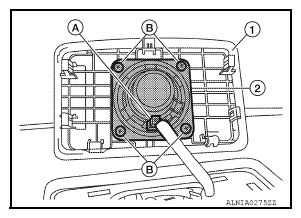

    Fig 1: Identifying Center Speaker, Harness Connector, Grille Finisher And Screws
    G08698351Courtesy of NISSAN NORTH AMERICA, INC.
