XM Subscription Status

The XM NavTraffic subscription status can be checked.

Fig 1: Display - XM Subscription Status Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error History" to detect any error that may have occurred before the self-diagnosis start because of this situation.

Count up method A

• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.

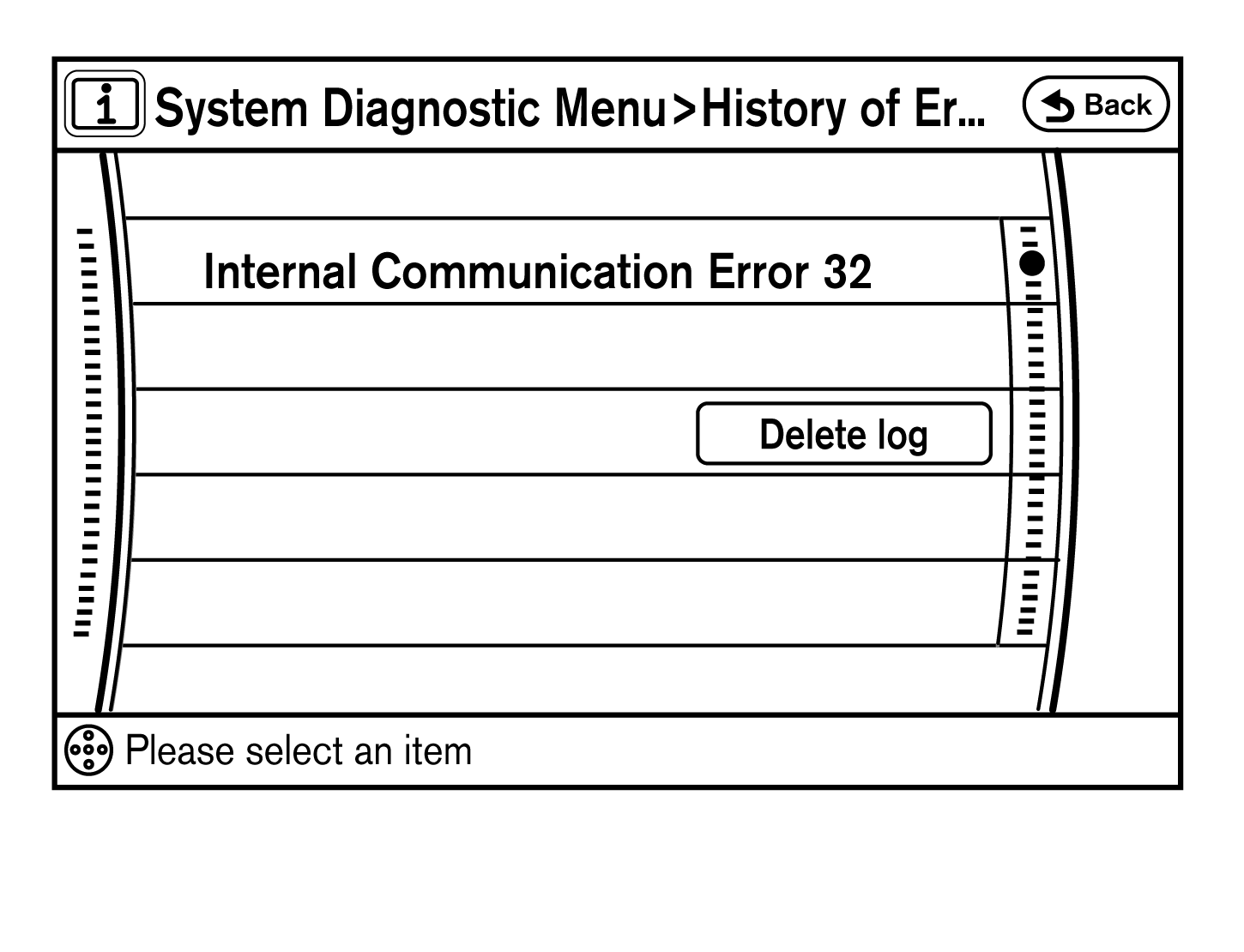

  Fig 2: Display - Error History Screen

  Courtesy of NISSAN NORTH AMERICA, INC.
• The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Count up method B

• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if reset.
  Fig 3: Display - Vehicle CAN Diagnosis Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

AV COMM Diagnosis

• AV communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if reset.
  Fig 4: Display - AV COMM Diagnosis Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

Hands-free Phone

The hands-free phone reception volume adjustment, microphone and speaker test, and memory erase functions are also available.

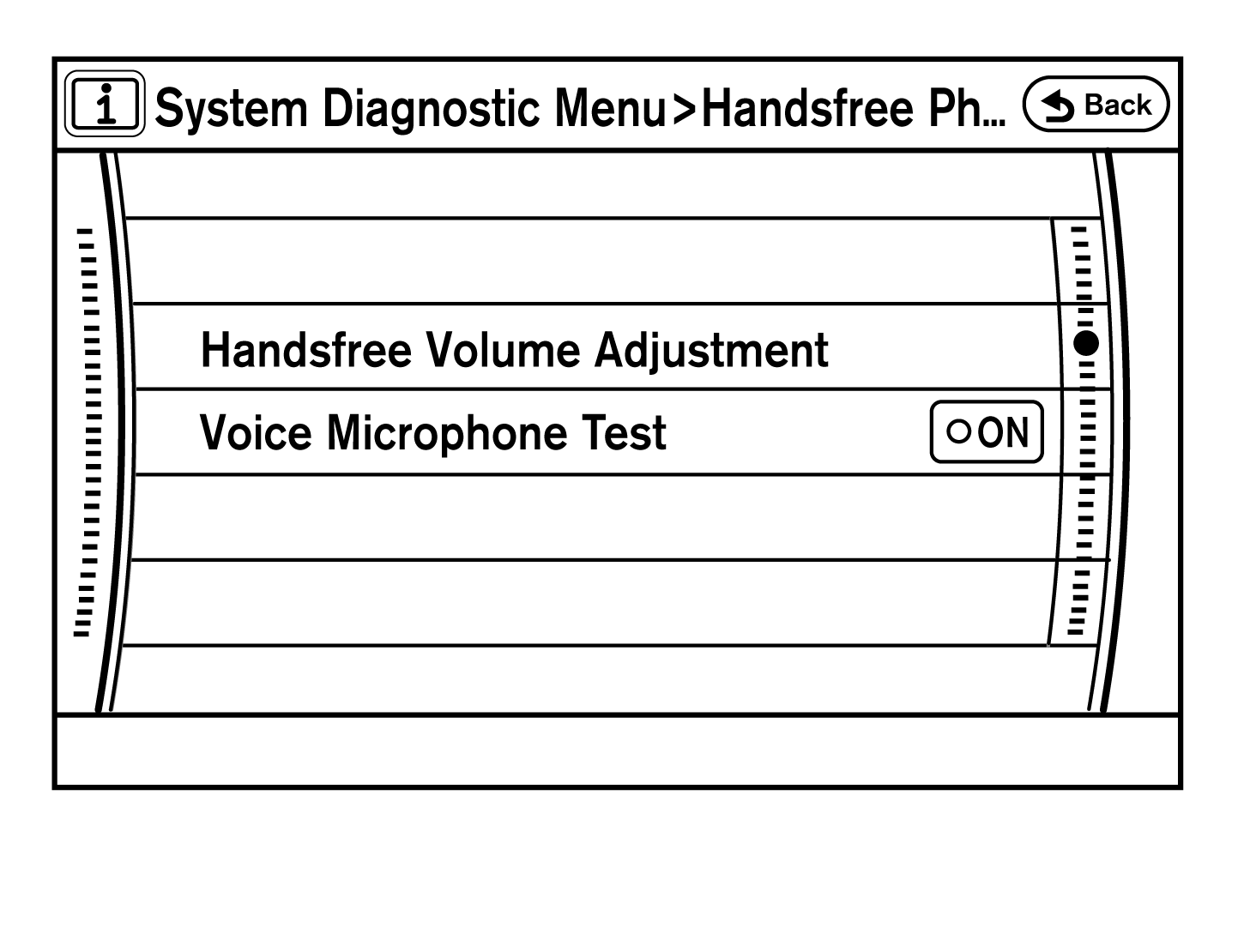

Fig 5: Display - Hands-Free Phone

Courtesy of NISSAN NORTH AMERICA, INC.

SAT

• Change Channel
  • Any necessary channels required to receive traffic information from the satellite radio system can be set.
    Fig 6: Display - Change Channel Screen

    Courtesy of NISSAN NORTH AMERICA, INC.
• Change Application ID
  • Any application ID's required to receive traffic information from the satellite radio system can be set.
    Fig 7: Display - Change Application ID

    Courtesy of NISSAN NORTH AMERICA, INC.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed)

Fig 8: Display - Delete Unit Connection Log

Courtesy of NISSAN NORTH AMERICA, INC.

Initialize Settings

Initializes the AV control unit memory.

Fig 9: Display - Initialize Settings Screen

Courtesy of NISSAN NORTH AMERICA, INC.
