Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the back door lower finisher. Refer to "REMOVAL AND INSTALLATION ".
Disconnect the harness connector (A) from the rear view camera.
Remove the back door handle. Refer to "DOOR LOCK ASSEMBLY ".

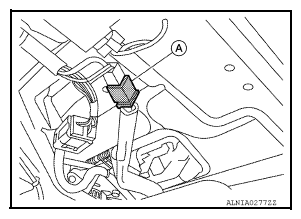

Fig 1: Identifying Rear View Camera And Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the rear view camera screw (2) and remove the rear view camera (1).

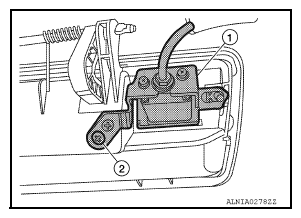

Fig 2: Identifying Rear View Camera Screw And Remove Rear View Camera
Courtesy of NISSAN NORTH AMERICA, INC.
