Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accelerator pedal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the BCM. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the BOSE amp.
    1. Disconnect the harness connectors from the BOSE amp.
    2. Remove the BOSE amp bracket screws and slide the BOSE amp and bracket assembly down.

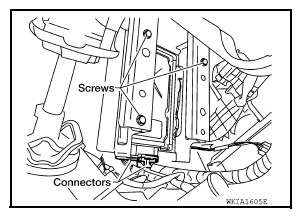

      Fig 1: Identifying BOSE Amp. And Harness Connectors
      G08691368Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the BOSE amp. screws (A) and separate the BOSE amp. (1) from the bracket.

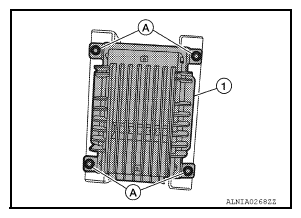

    Fig 2: Identifying BOSE Amp. And BOSE Amp. Screws
    G08691369Courtesy of NISSAN NORTH AMERICA, INC.
