Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the antenna amp. (1).
    1. Disconnect the harness connector (A) from the antenna amp.
    2. Release the antenna amp. harness clip (B).
    3. Disconnect the antenna feeder harness connector (C).
    4. Remove the antenna amp. screws (D).

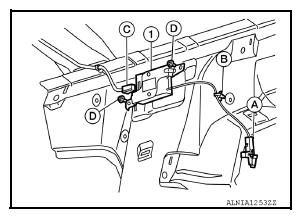

      Fig 1: Identifying Antenna Amp. Components
      G08691375Courtesy of NISSAN NORTH AMERICA, INC.
