Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire using power tool. Refer to "ROTATION ".
If equipped with the rear load leveling air suspension system, perform the following:
1. Use the CONSULT "EXHAUST SOLENOID" active test to release the air pressure from the rear load leveling air suspension system.
2. Disconnect the harness connector from the height sensor.
3. Disconnect the rear load leveling air suspension hose from the shock absorber.
  NOTE: To disconnect the hose, push in on the lock ring using a suitable tool and pull the air hose out.

  Fig 1: Pushing On Lock Ring Using Suitable Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear fender protector. Refer to "REMOVAL AND INSTALLATION ".
Remove the shock absorber upper and lower end bolts using power tool.
Remove the shock absorber.
CAUTION: If equipped with the rear load leveling air suspension system, do not damage the rubber boot on the shock absorber.

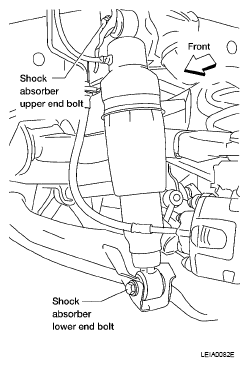

Fig 2: Identifying Shock Absorber Upper And Lower End Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
