Install the new rear oil seal until it is flush with the end face of the rear case using Tool.
Tool number: ST30720000 (J-25405)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.
Fig 1: Installing Rear Oil Seal With End Face Of Rear Case Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.

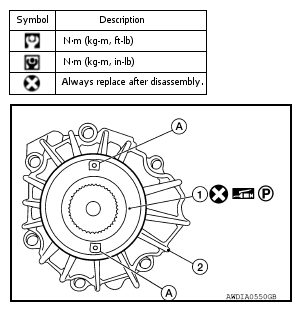

Apply petroleum jelly to the circumference of the new dust cover (1). Position the new dust cover as shown below.
CAUTION:
- Do not reuse dust cover.
- Position the protrusions in the position shown below.
- (2): Rear case assembly
- (A): Protrusions

  Fig 2: Identifying Protrusions On Dust Cover And Rear Case Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the new dust cover to the rear case using Tool.
Tool number: KV40105310 (-)
CAUTION:
- Do not reuse dust cover.
- Apply petroleum jelly to dust cover.
Install the rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
Check for transfer fluid leaks. Check transfer fluid level and add specified fluid as necessary. Refer to "REPLACEMENT ".

Fig 3: Installing Dust Cover To Rear Case Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
