Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure there are no pinched or restricted areas on each air breather hose caused by folding or bending when installing it.

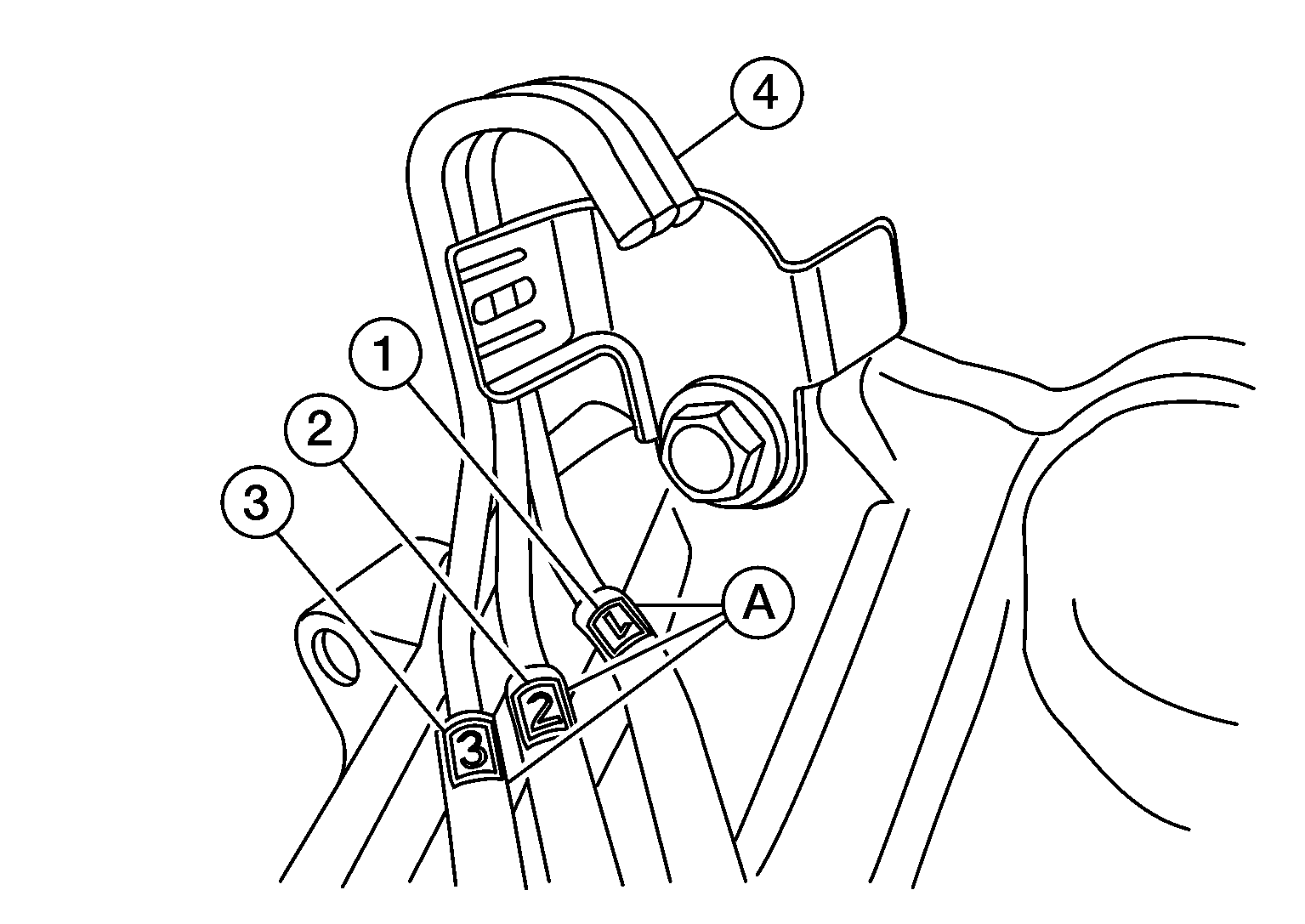

Install each air breather hose into the breather tube (4). Set each air breather hose with paint mark facing upward.
- A/T breather hose (1)
- Transfer breather hose (2)
- Actuator/transfer motor breather hose (3)
- Paint marks (A)

  Fig 1: Identifying Paint Marks On A/T, Transfer Breather And Actuator/Transfer Motor Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

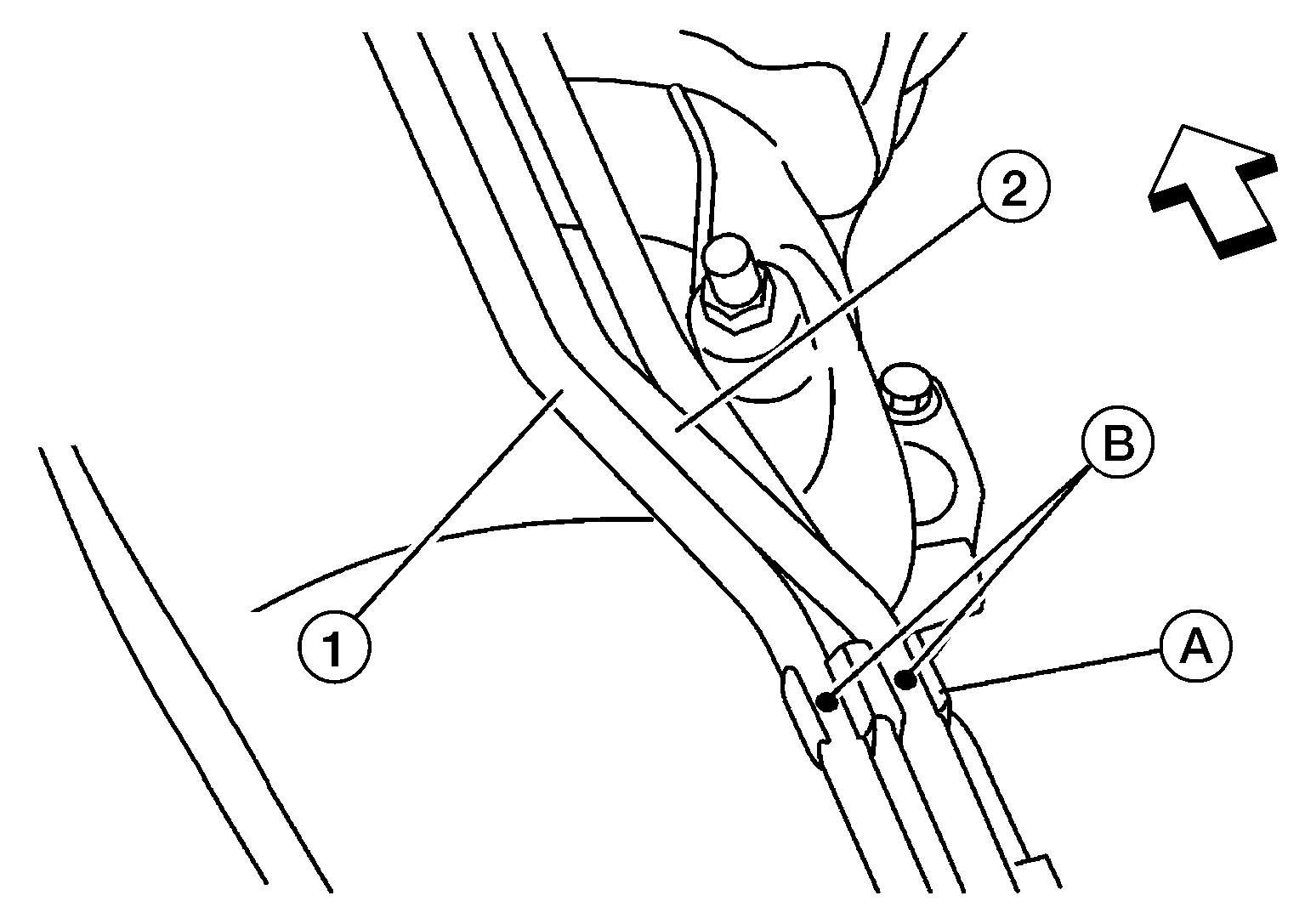

Install actuator/transfer motor air breather hose (1) and transfer air breather hose (2) on clip (A) with the paint mark (B) facing upward.
- <==: Front

  Fig 2: Identifying Paint Mark On Actuator/Transfer Motor Air Breather Hose And Transfer Air Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

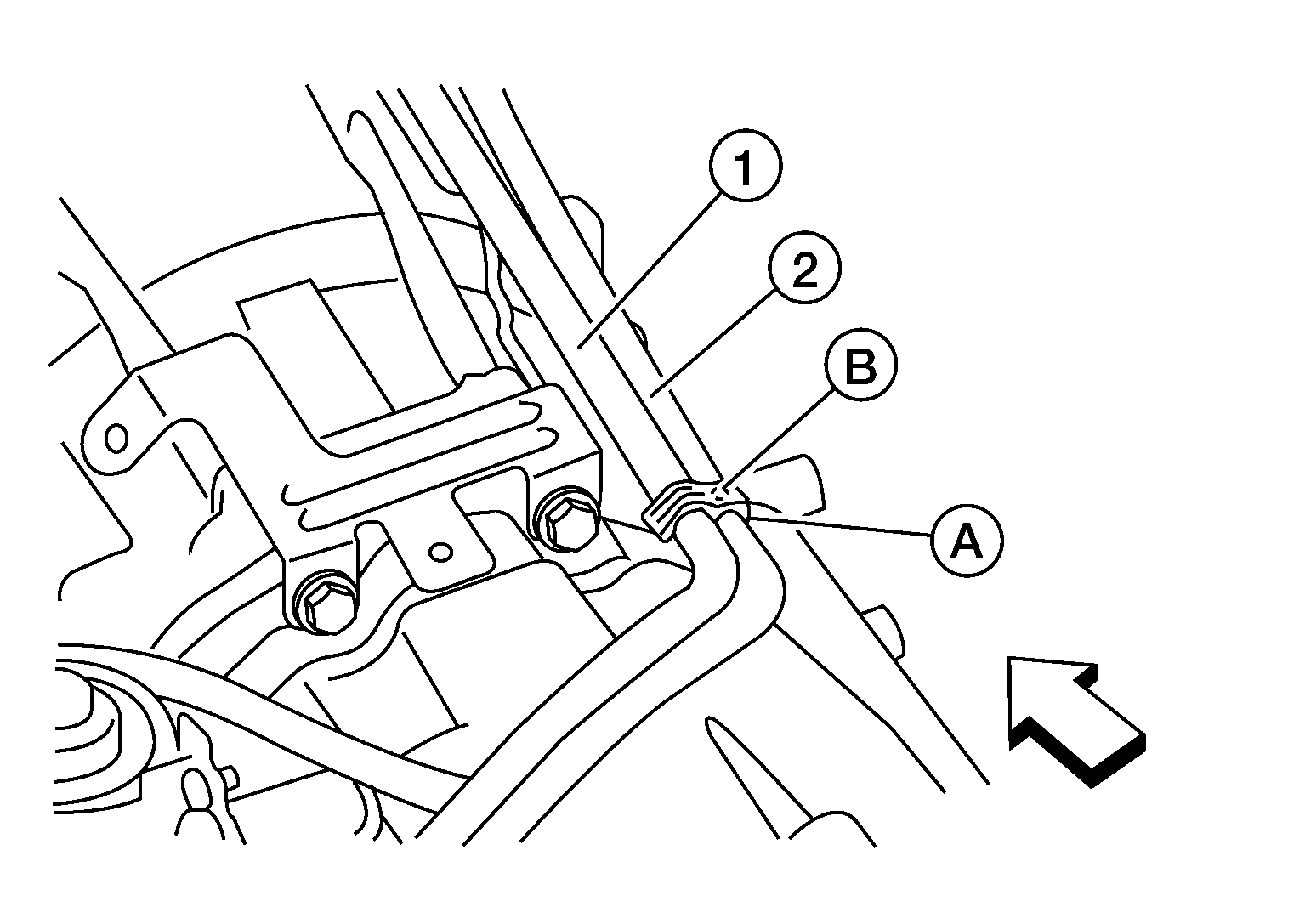

Install clip (B) on actuator/transfer motor air breather hose (1) and transfer air breather hose (2) with the paint mark (A) matched.
- <==: Front

  Fig 3: Identifying Paint Mark On Actuator/Transfer Motor Air Breather Hose And Transfer Air Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.
Install actuator/transfer motor air breather hose (1) and transfer air breather hose (2) on clip (B) and clip (C) with the paint mark (A) and (D) facing upward.
- <==: Front

  Fig 4: Identifying Paint Marks On Actuator/Transfer Motor Air Breather And Transfer Air Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the actuator air breather hose into the actuator (case connector) until the hose end reaches the base of the tube. Set actuator air breather hose with paint mark facing leftward.

Fig 5: Identifying Paint Mark On Actuator Air Breather Hose
Courtesy of NISSAN NORTH AMERICA, INC.
Install clip (B) on transfer motor air breather hose (2) and transfer air breather hose (1) with the paint mark (A) matched.
- <==: Front

  Fig 6: Identifying Paint Mark And Clip On Transfer Motor Air Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the transfer air breather hose into the breather tube (transfer, metal connector) until the hose end reaches the base of the tube. Set transfer air breather hose with paint mark facing upwards.

Fig 7: Installing Transfer Air Breather Hose Into Breather Tube
Courtesy of NISSAN NORTH AMERICA, INC.
Install the transfer motor air breather hose into the transfer motor (case connector) until the hose end reaches the end of the curved section. Set transfer motor air breather hose with paint mark facing leftward.

Fig 8: Identifying Paint Mark On Transfer Motor Air Breather Hose
Courtesy of NISSAN NORTH AMERICA, INC.
