Model 2F1310: Notes

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

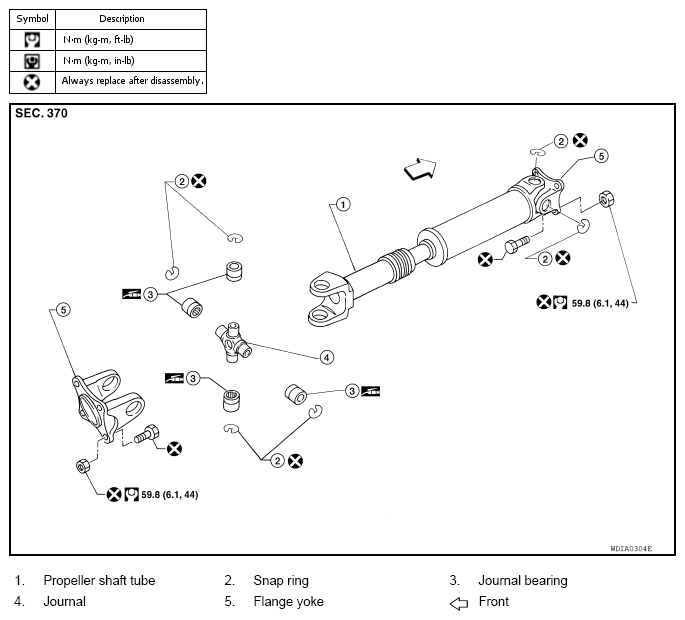

Fig 1: Exploded View Of Propeller Shaft With Torque Specifications (Model 2F1310)

Courtesy of NISSAN NORTH AMERICA, INC.
