Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cup holder insert.
  2. Release latch and remove rear center console assembly.

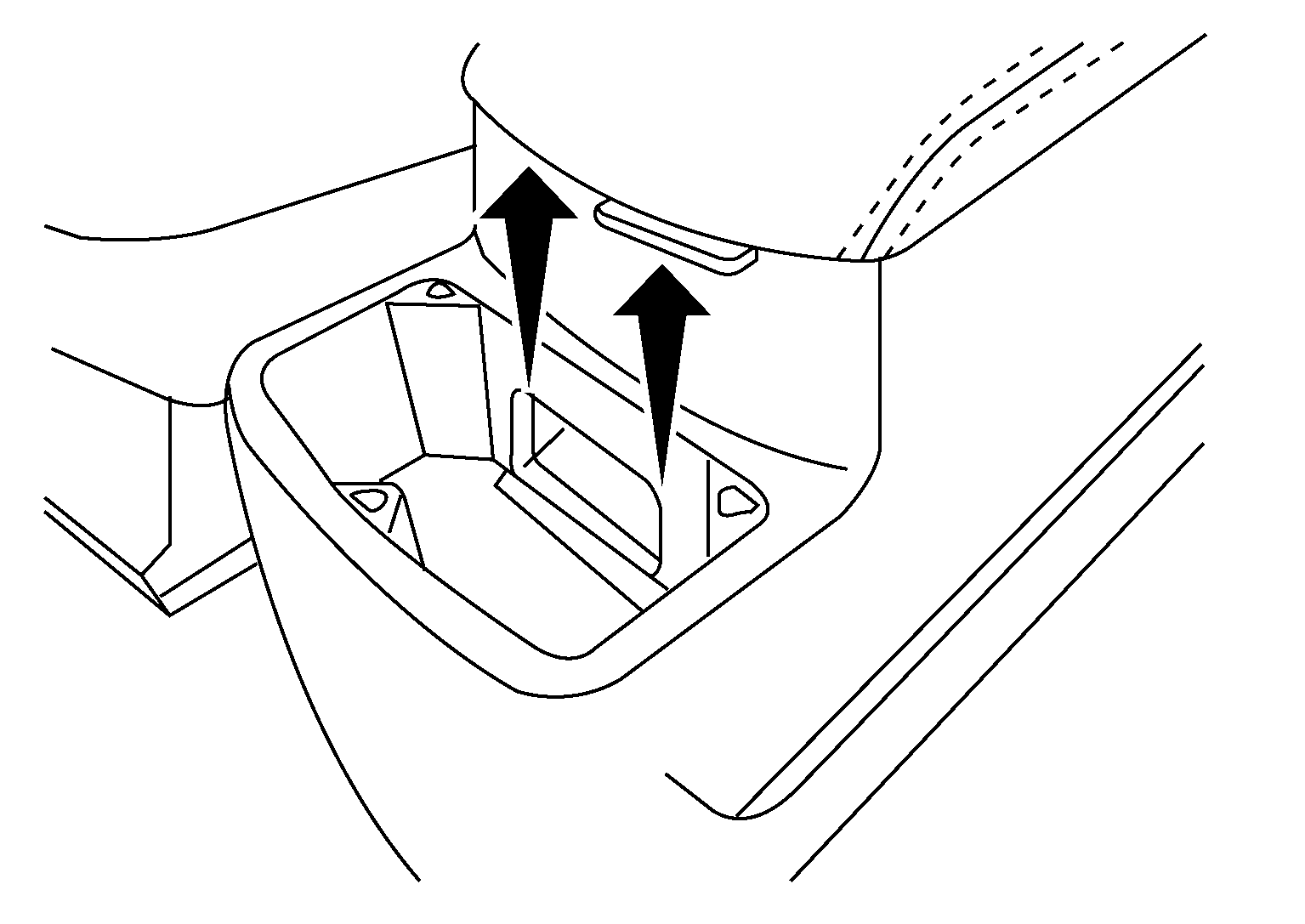

    Fig 1: Removing Rear Center Console Assembly
    G05381484Courtesy of NISSAN NORTH AMERICA, INC.
