Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A/T finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the front center console upper screws.
  3. Remove shift selector assembly. Refer to "A/T SHIFT SELECTOR REMOVAL AND INSTALLATION ".
  4. Remove instrument lower panel RH and glove box assembly. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove center console lower cover (LH/RH), then remove front center console lower screws.
  6. Open the console lid assembly and remove console bin mat, then remove the rear inside screws.
  7. Move front seats forward.
  8. Remove lower front center console screws at the rear.
  9. Release front center console from floor and tilt to disconnect harness connectors.
  10. Carefully remove front center console assembly through rear door opening.

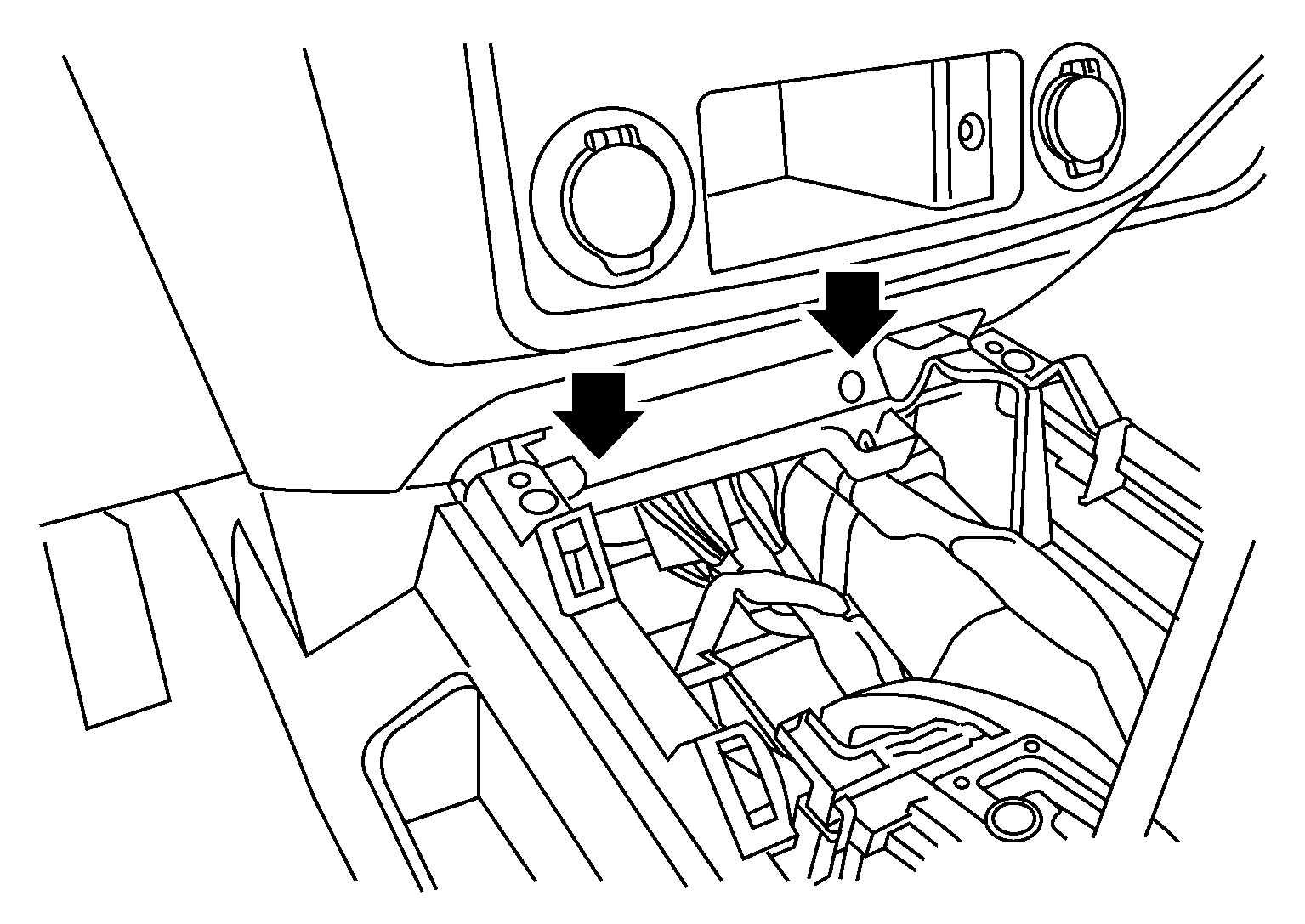

    Fig 1: Locating Front Center Console Assembly Upper Screws
    G05381483Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Always use an assistant to steady the front center console assembly during removal from vehicle interior.
