Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Release the clips and remove cluster lid C lower.
  3. Remove the upper and lower cluster lid C screws.
  4. Release the clips, then pull cluster lid C rearward to release from instrument panel and pad assembly.
  5. Disconnect harness connectors.

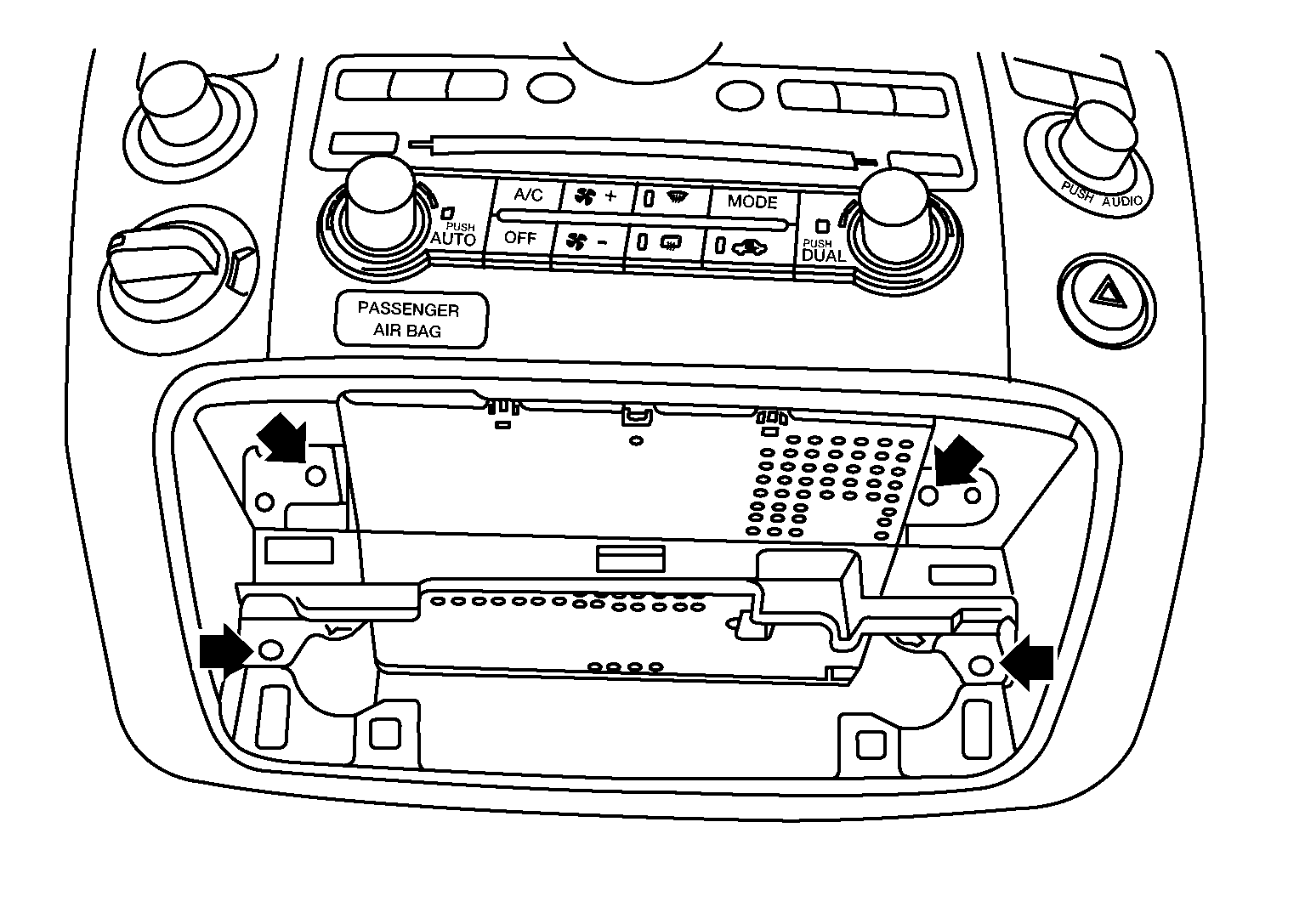

    Fig 1: Locating Upper And Lower Cluster Lid C Screws
    G05381477Courtesy of NISSAN NORTH AMERICA, INC.
