Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift selector handle (1).
    1. Push the shift selector handle cover downward and away from the shift selector handle (1).
    2. Rotate the shift selector handle (1) counterclockwise to remove.
  2. Pull up on the front console upper finisher (4) to release the metal clips and remove it from the front center console assembly.

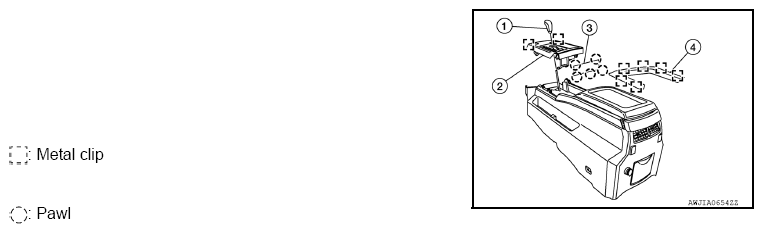

    Fig 1: Identifying A/T Finisher And Related Components
    G08697574Courtesy of NISSAN NORTH AMERICA, INC.
  3. Pull up on the storage compartment mask (3) to release the pawls and remove it from the front center console assembly.
  4. Remove the A/T finisher (2).
    1. Pull up on A/T finisher (2) to release the metal clips and access the A/T finisher switch harness connectors.
    2. Disconnect A/T finisher switch harness connectors and remove the A/T finisher (2) from the front center console assembly.
