Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove luggage room rear lower finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the tether anchor bolt and the tether anchor.

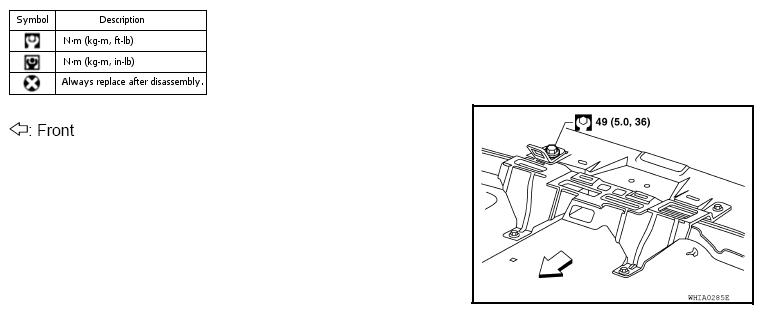

    Fig 1: Tether Anchor Bolt With Torque Specification
    G08697233Courtesy of NISSAN NORTH AMERICA, INC.
