Third Row Seat Belt Buckle: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place third row seatback (LH/RH) in the folded position.
  2. Remove luggage floor board assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Position the storage box aside as necessary to access the seat belt buckle nut (center and RH buckles) or bolt (LH buckle).
  4. Remove seat belt buckle nut or bolt as applicable.

    Seat belt buckle nut or bolt: 49 N.m (5.0 kg-m, 36 ft-lb)

  5. Remove the seat cushion side facing push pin and release elastic band from seat belt buckle. Repeat for opposite seat.
  6. Partially lift seatback upright, then remove seat belt buckle (2) from between hinge cover (1) and seat cushion side facing (3). Repeat for LH seat.

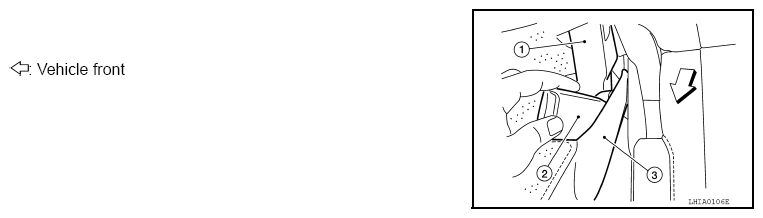

    Fig 1: Removing Seat Belt Buckle
    G08697232Courtesy of NISSAN NORTH AMERICA, INC.
