Wiring Diagram - Driver Side Without Automatic Drive Positioner
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

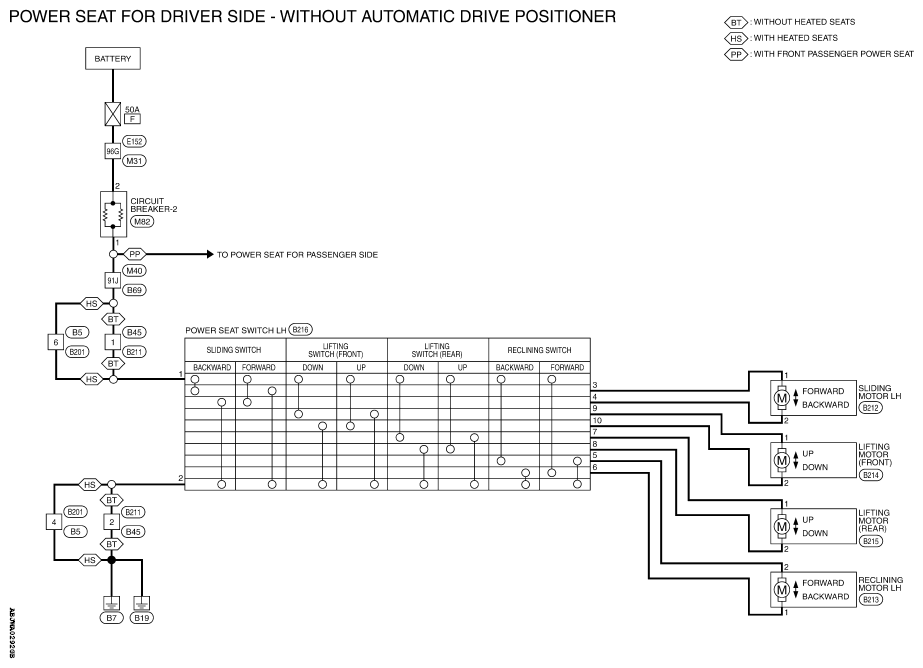

Fig 1: Power Seat For Driver Side - Without Automatic Drive Positioner - Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

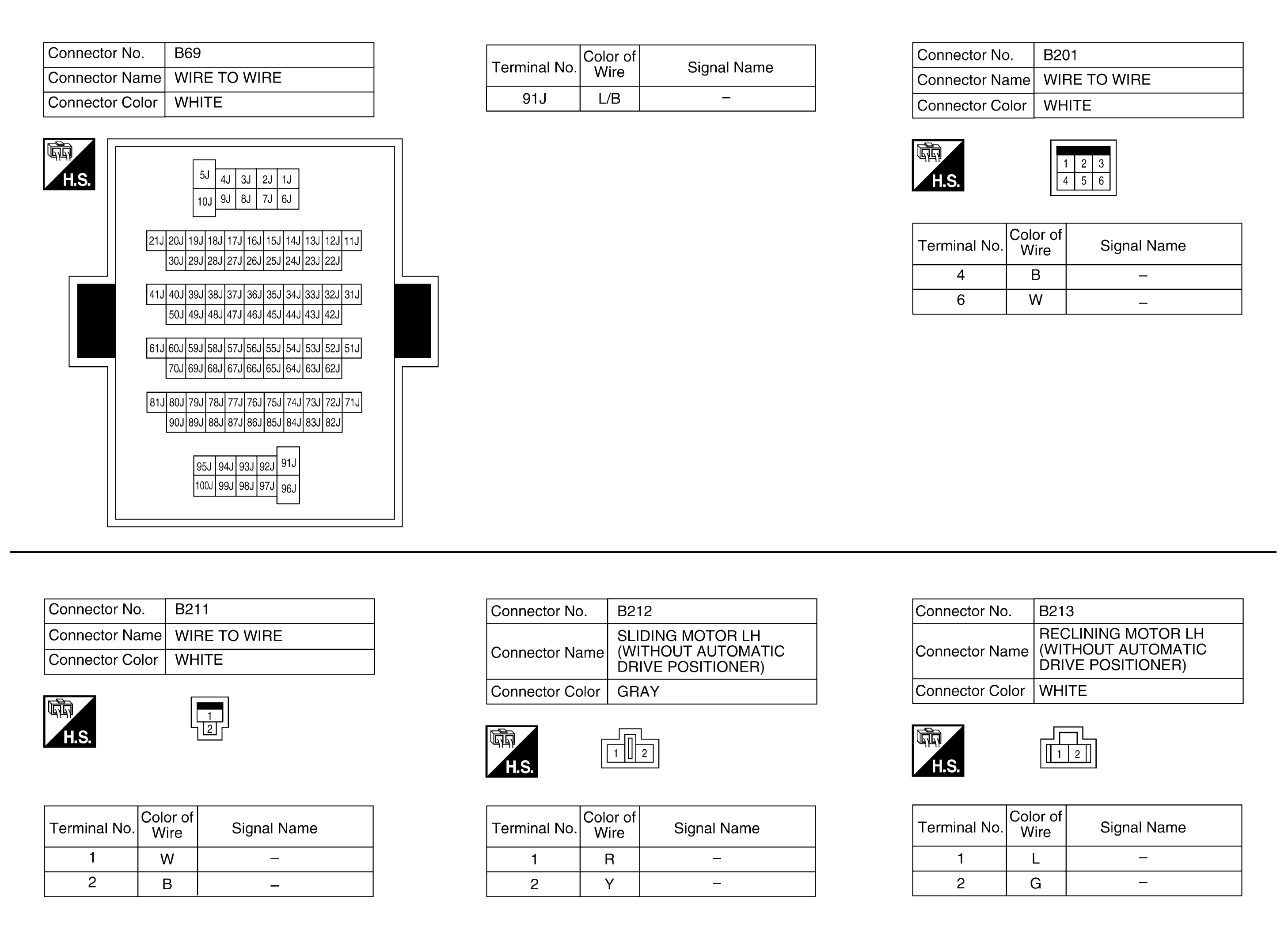

Fig 2: Power Seat For Driver Side - Without Automatic Drive Positioner Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

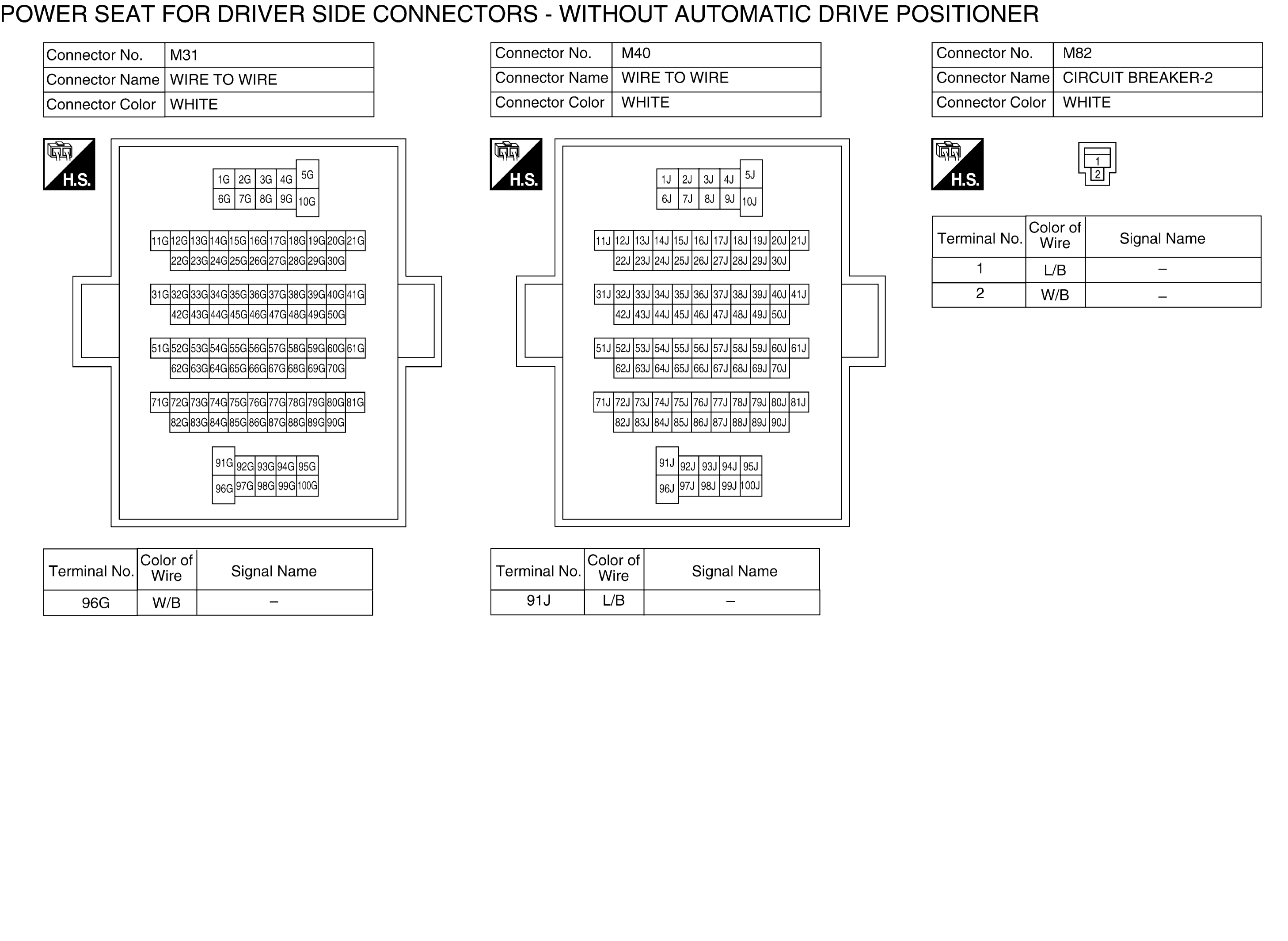

Fig 3: Power Seat For Driver Side - Without Automatic Drive Positioner Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

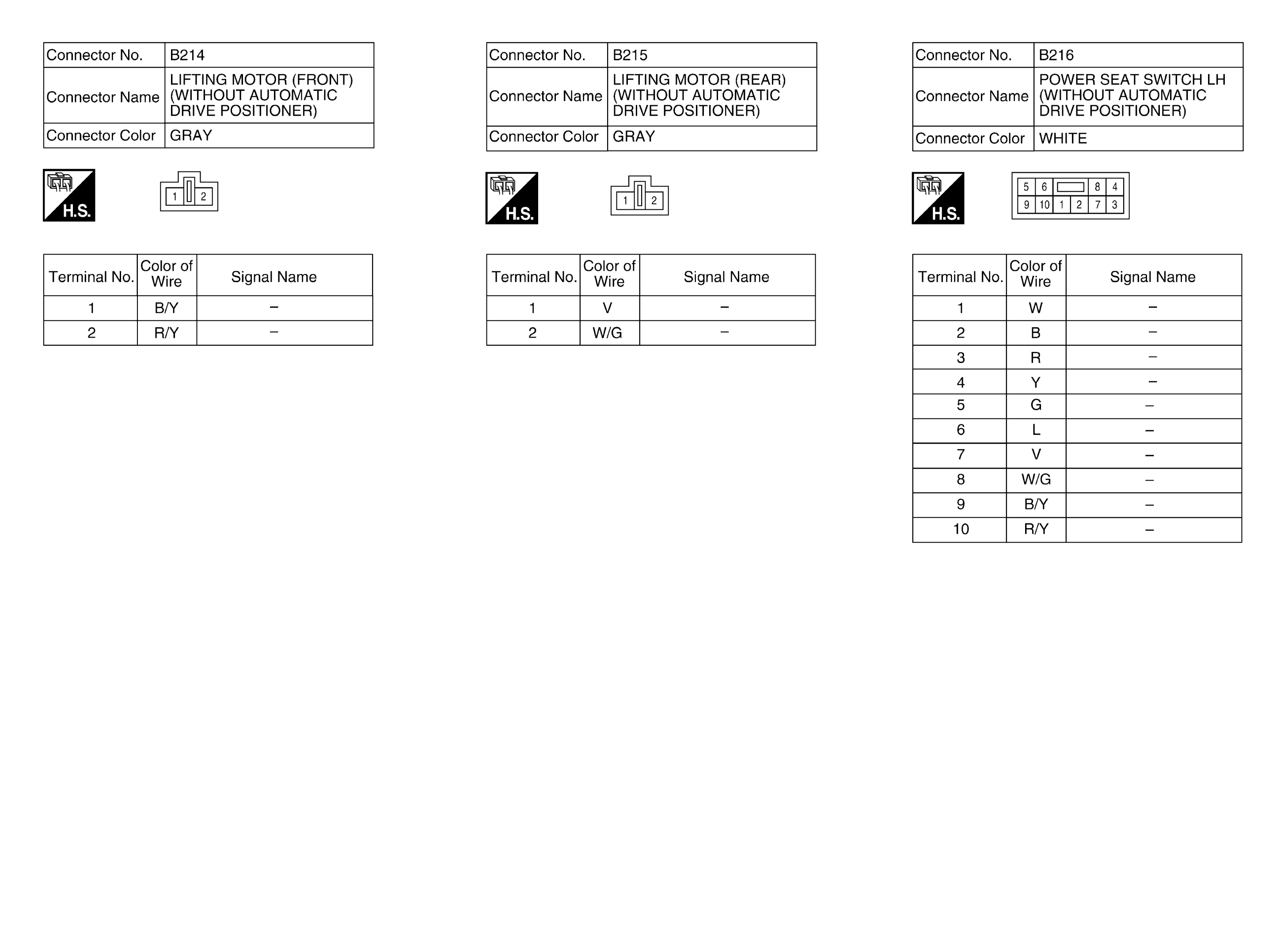

Fig 4: Power Seat For Driver Side - Without Automatic Drive Positioner Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

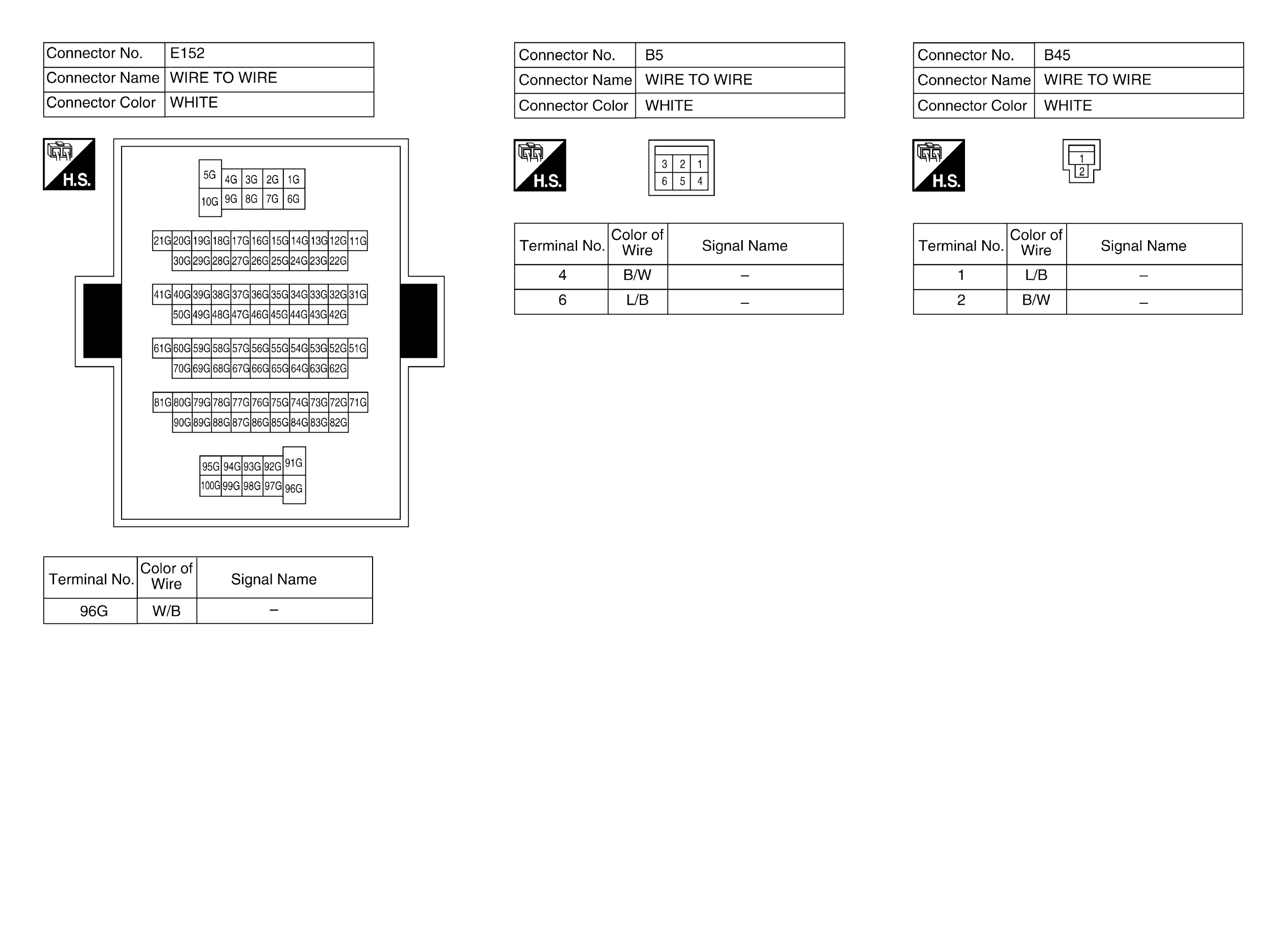

Fig 5: Power Seat For Driver Side - Without Automatic Drive Positioner Connector End View (4 Of 4)
