Seat Cushion Trim And Pad: Disassembly

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Front passenger seat is equipped with an Occupant Classification System sensor and control module. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect the Occupant Classification System calibration.
  • Always replace passenger seat cushion as an assembly.
  • When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.
  • During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do not add additional clips.
  • The Occupant Classification System control module can only be replaced as part of the seat cushion assembly.
  1. Release the trim at bottom of seat as shown below.

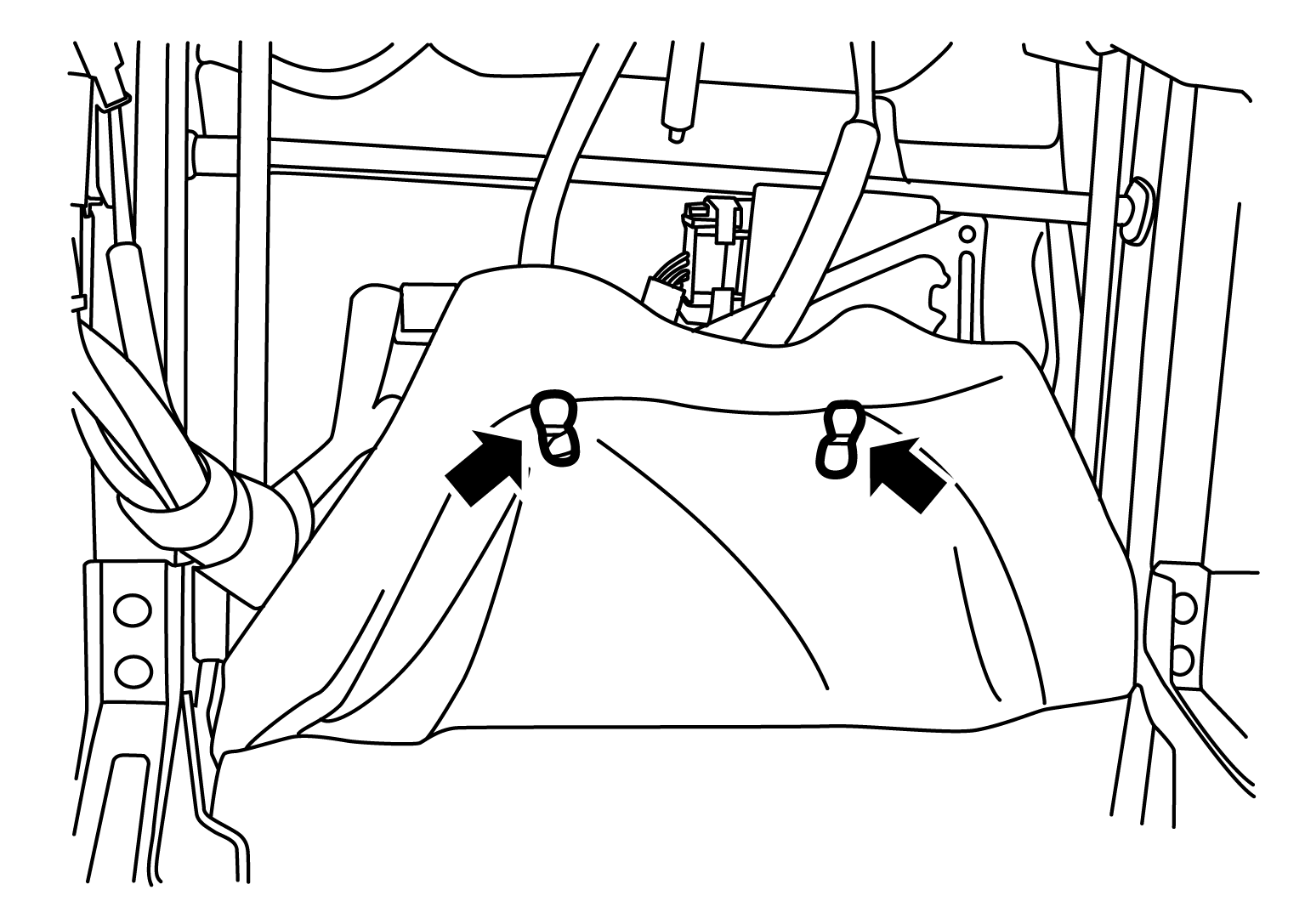

    Fig 1: Locating Trim At Bottom Of Seat
    G08123001Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the seat recline knob and seat slide and lifter switch knob (1), then the power seat switch finisher (2).

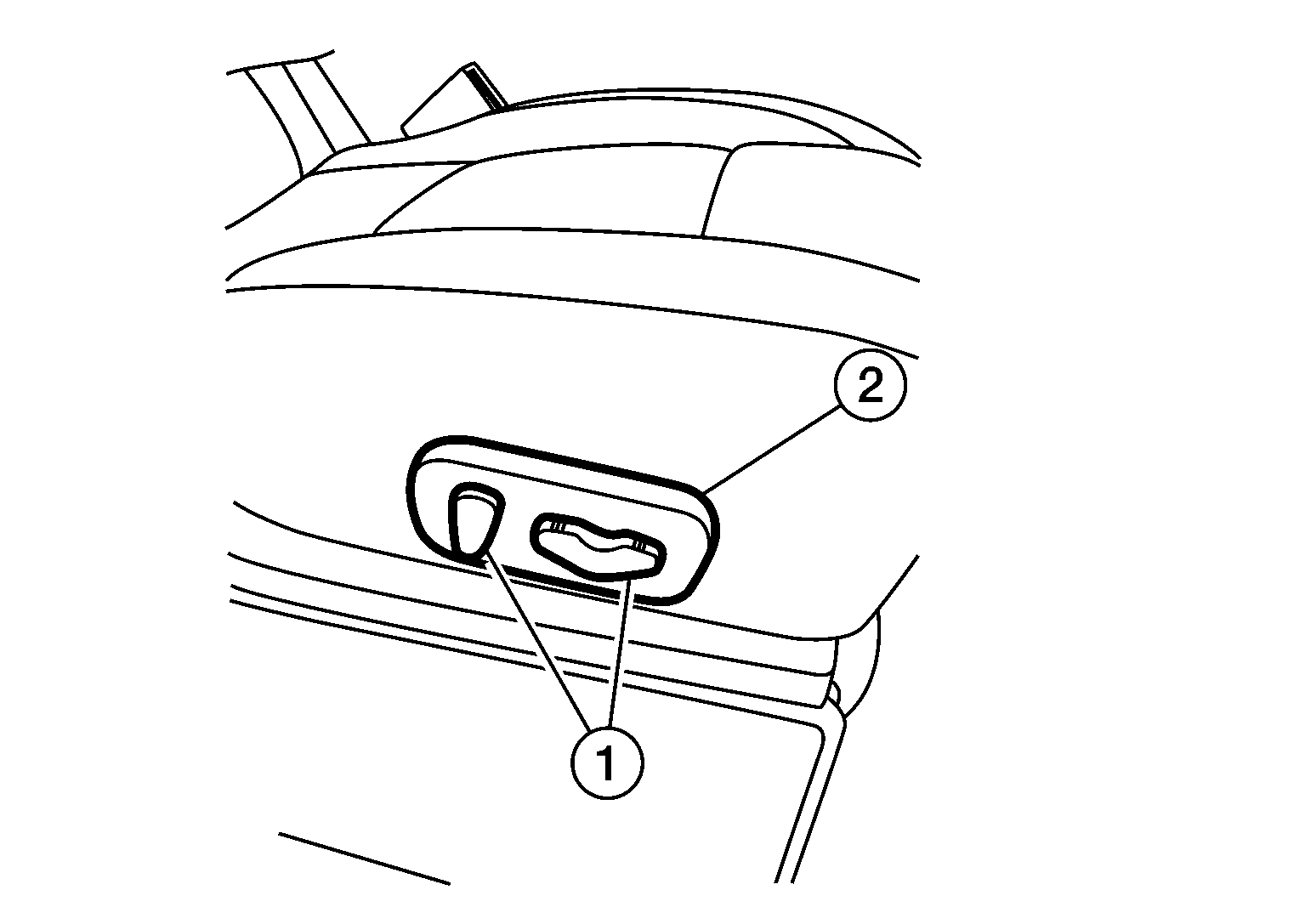

    Fig 2: Identifying Seat Recline Knob, Seat Slide And Lifter Switch Knob And Power Seat Switch Finisher
    G08694259Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the four seat cushion assembly bolts (A) from the seat frame assembly.

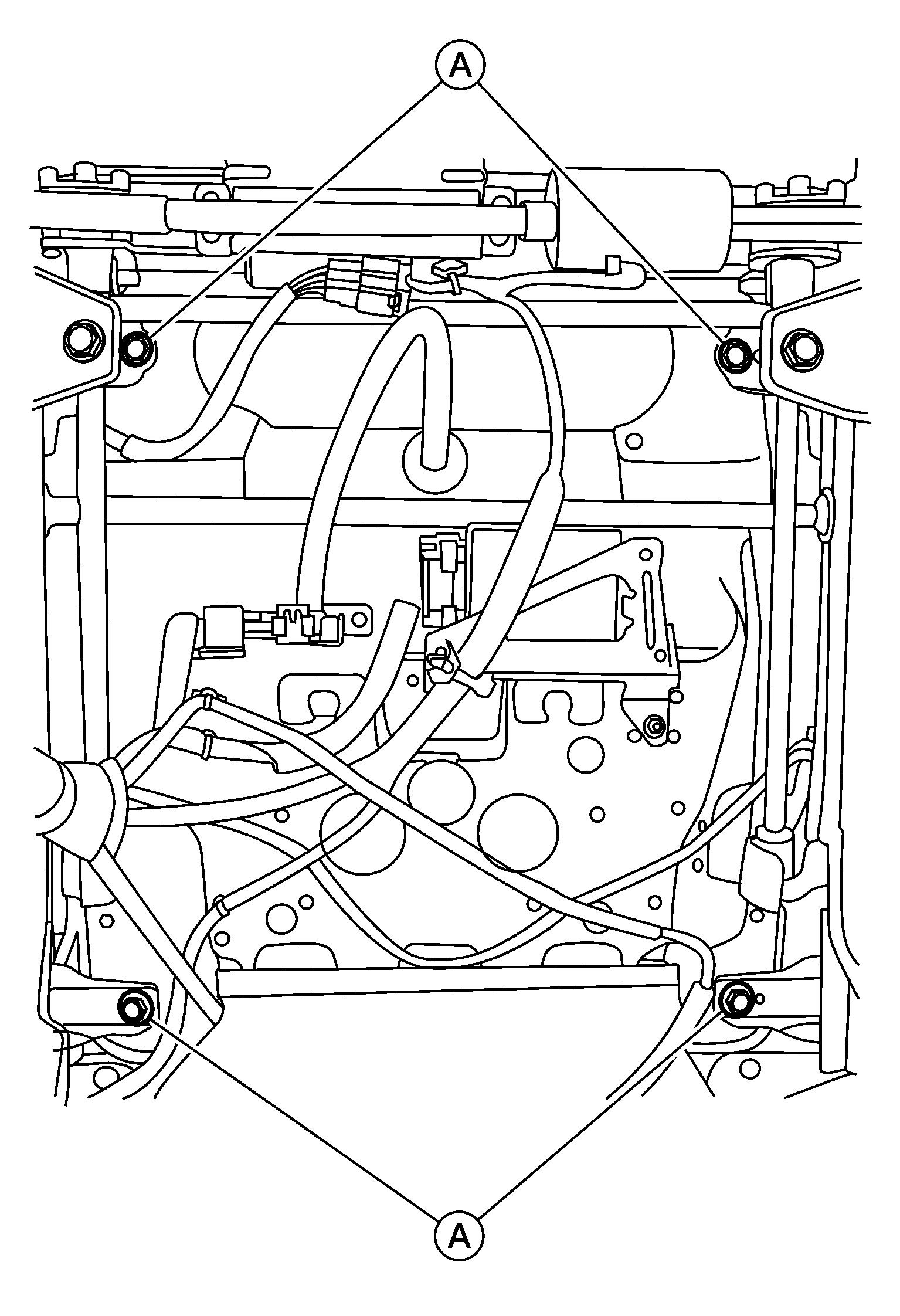

    Fig 3: Identifying Seat Cushion Assembly Bolts
    G08694260Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the seat cushion trim and seat cushion pad as an assembly from the seat cushion frame.
  5. Remove the hog rings to separate the seat cushion trim from the seat cushion pad.
