Passenger Seatback Board - Soft Seatback: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

The seatback board is attached to the seat frame with the following:
- Two top tabs (A)
- Four side tabs (B)
- Two bottom clips (C) (must be replaced)
Move seat to forward position.

Fig 1: Identifying Side Tabs Of Passenger Seatback Board
Courtesy of NISSAN NORTH AMERICA, INC.
Hold the seatback board as shown below and pull the top of the seatback board away from the seatback frame.

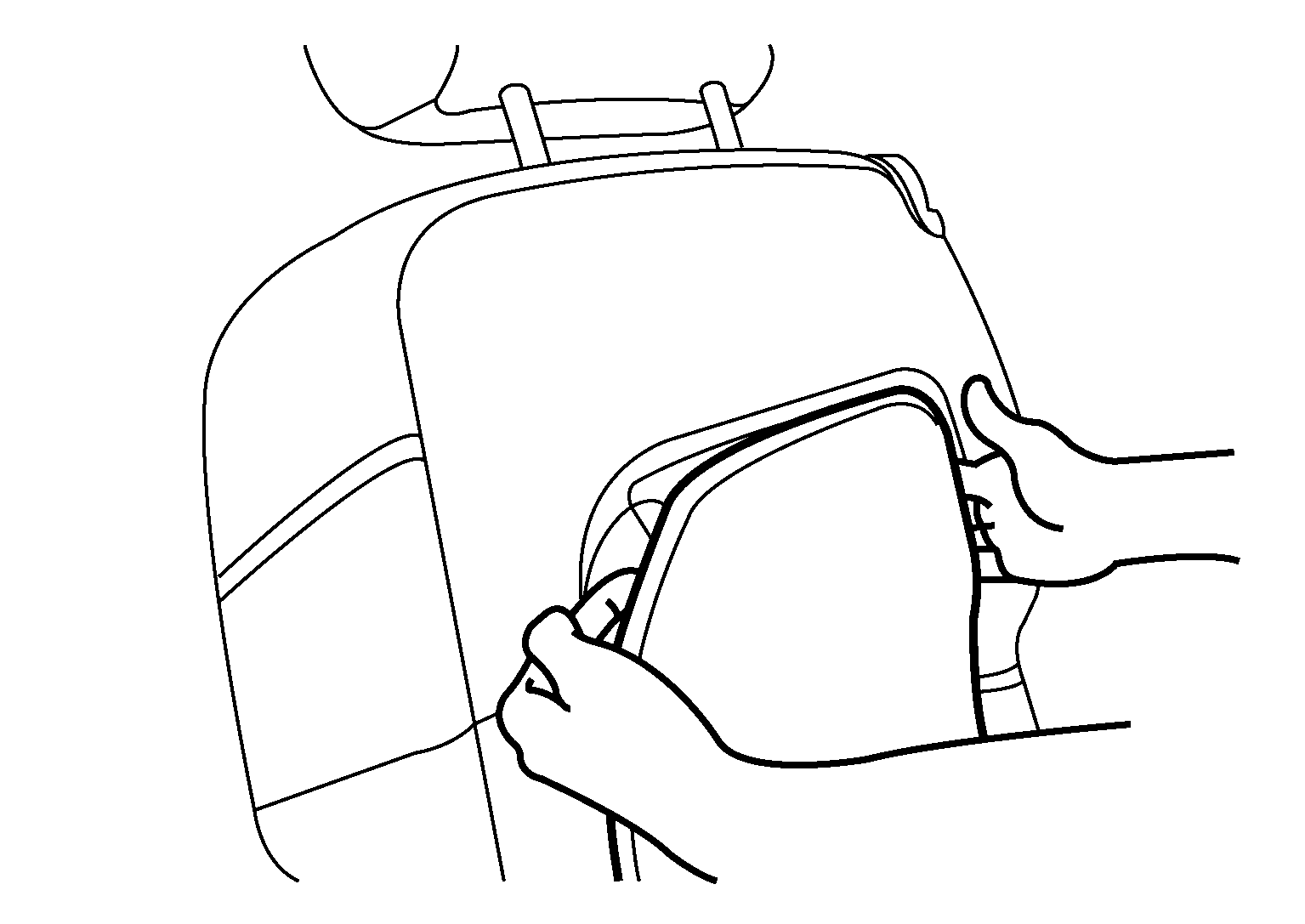

Fig 2: Pulling Top Of Seatback Board Away From Seatback Frame
Courtesy of NISSAN NORTH AMERICA, INC.
Pull the middle part of the seatback board to disengage the side tabs from the seatback frame.
Pull the lower part of the seatback board to disengage the bottom clips from the seatback frame.

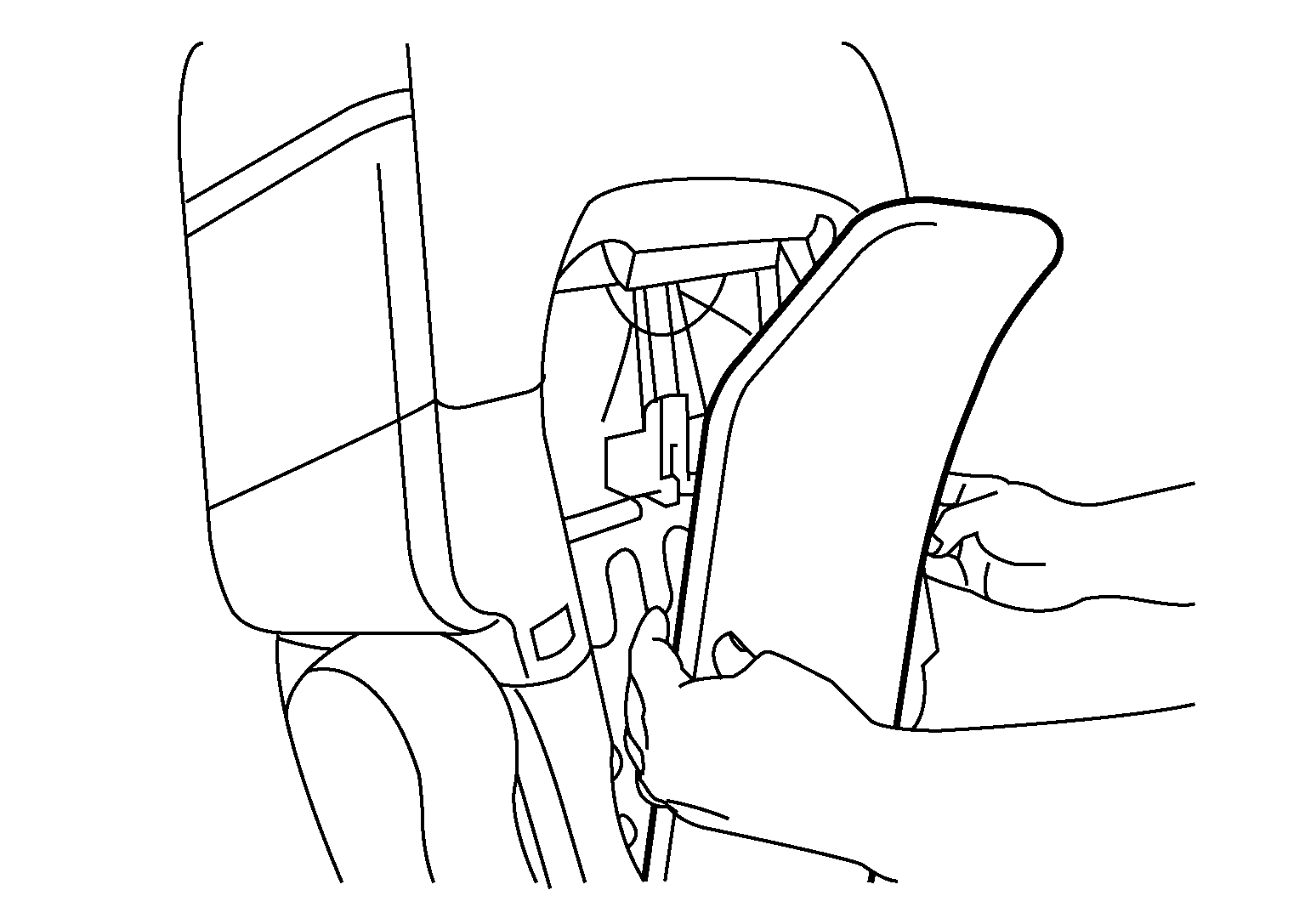

Fig 3: Disengaging Bottom Clips From Seatback Frame
Courtesy of NISSAN NORTH AMERICA, INC.
