Removal and Installation - Power Seat Cross Beam: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the two front seat nuts.
Fold the seat cushion up.

Fig 1: Front Seat Nuts With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connectors from the seat control unit.

Fig 2: Disconnecting Harness Connectors From Seat Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
Press the front release tab and remove the seat control unit.

Fig 3: Removing Seat Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
Unclip the wiring harness from the seat motor cover clips (A).

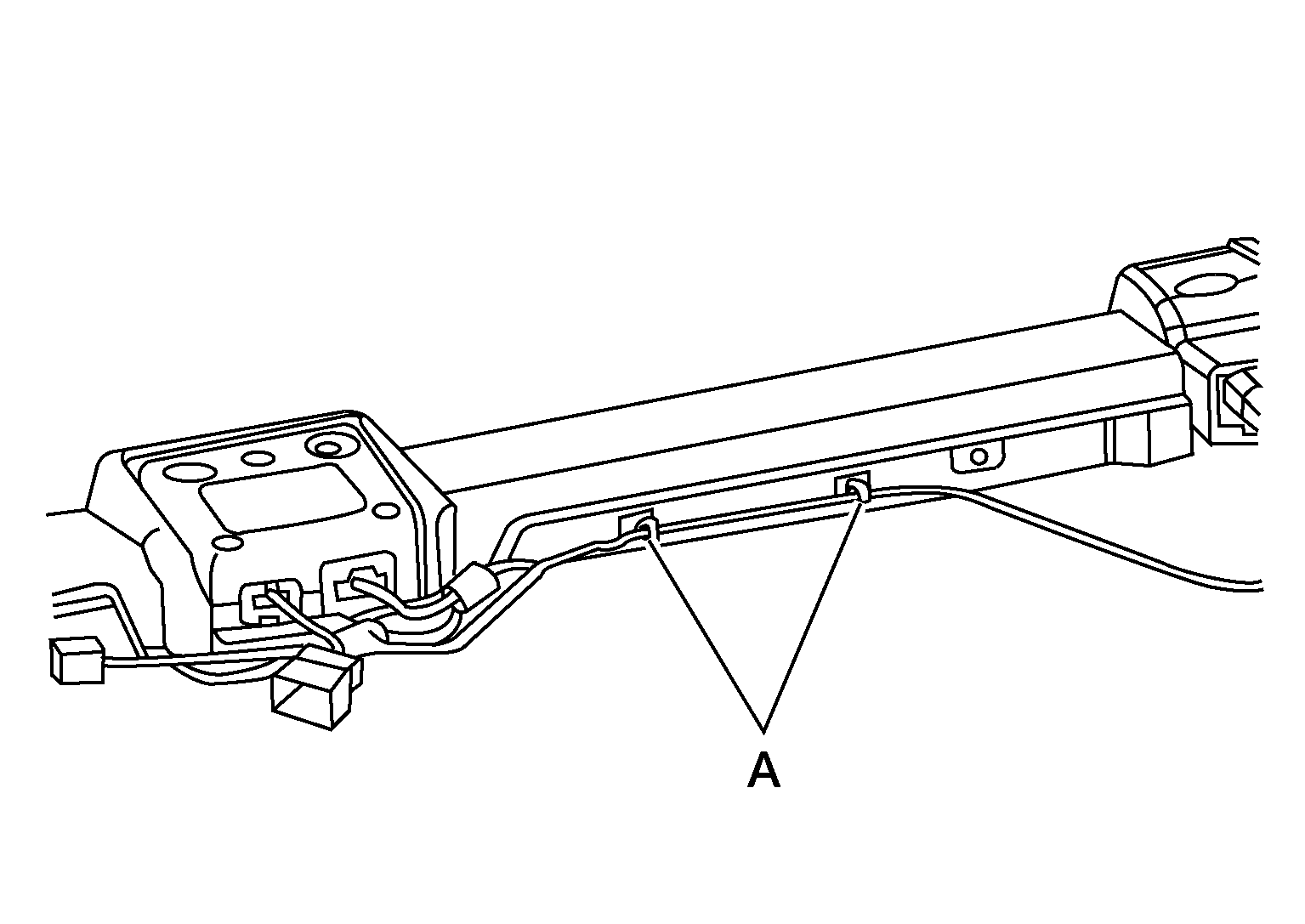

Fig 4: Identifying Seat Motor Cover Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the screws from the seat motor cover and the seat motor cover.

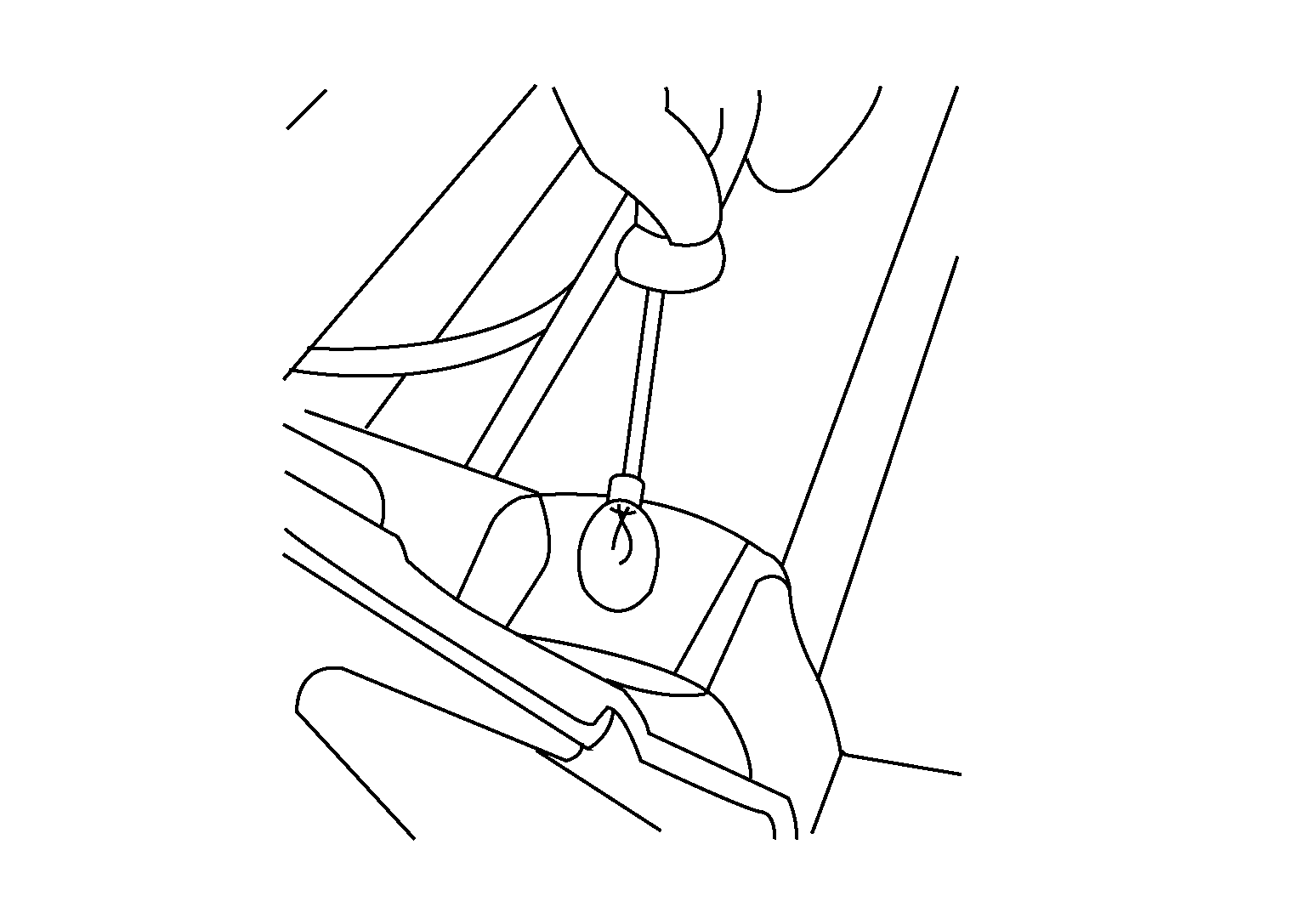

Fig 5: Removing Screws From Seat Motor Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Release the power seat cross beam clip and open the hinged strap.

Fig 6: Locating Power Seat Cross Beam Clip
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the power seat cross beam screws and the power seat cross beam.
NOTE: The power seat cable will be removed with the cross-beam.

Fig 7: Locating Power Seat Cross Beam Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the power seat cable from the power seat cross beam.

Fig 8: Removing Power Seat Cable From Seat Cross Beam
Courtesy of NISSAN NORTH AMERICA, INC.
