Removal and Installation - Power Seat Cross Beam: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Install the power seat cable into the seat motor and slide the conduit on the motor ferrule.

Fig 1: Identifying Power Seat Cable
Courtesy of NISSAN NORTH AMERICA, INC.
Install the power seat cable (A) into the seat motor.

Fig 2: Installing Power Seat Cable Into Seat Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Install the power seat cross beam RH side screws

Fig 3: Locating Power Seat Cross Beam Screws
Courtesy of NISSAN NORTH AMERICA, INC.

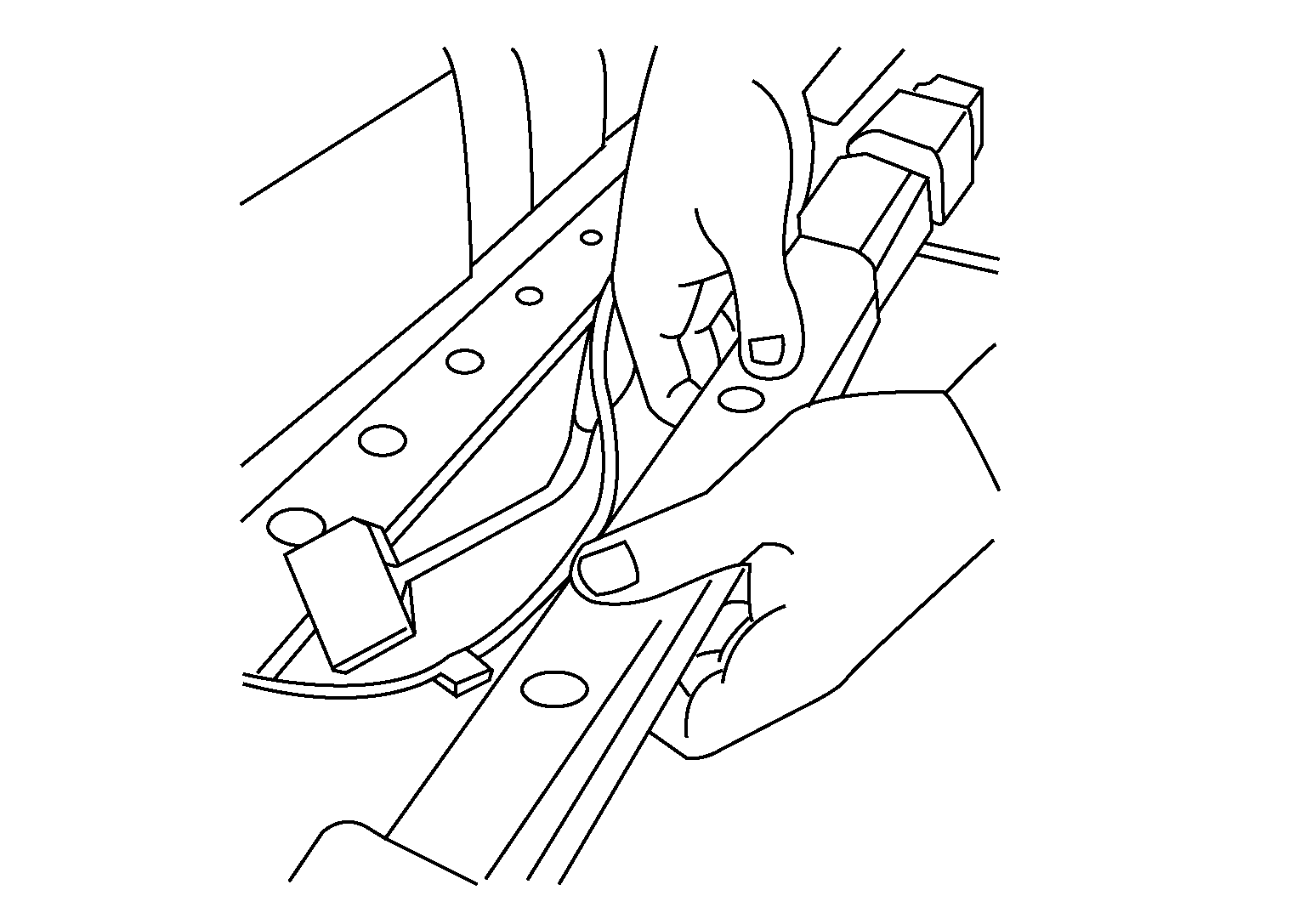

Starting at the RH side, snap the power seat cable into the power seat cross beam retainer clips.

Fig 4: Attaching Power Seat Cable Into Power Seat Cross Beam Retainer Clips
Courtesy of NISSAN NORTH AMERICA, INC.

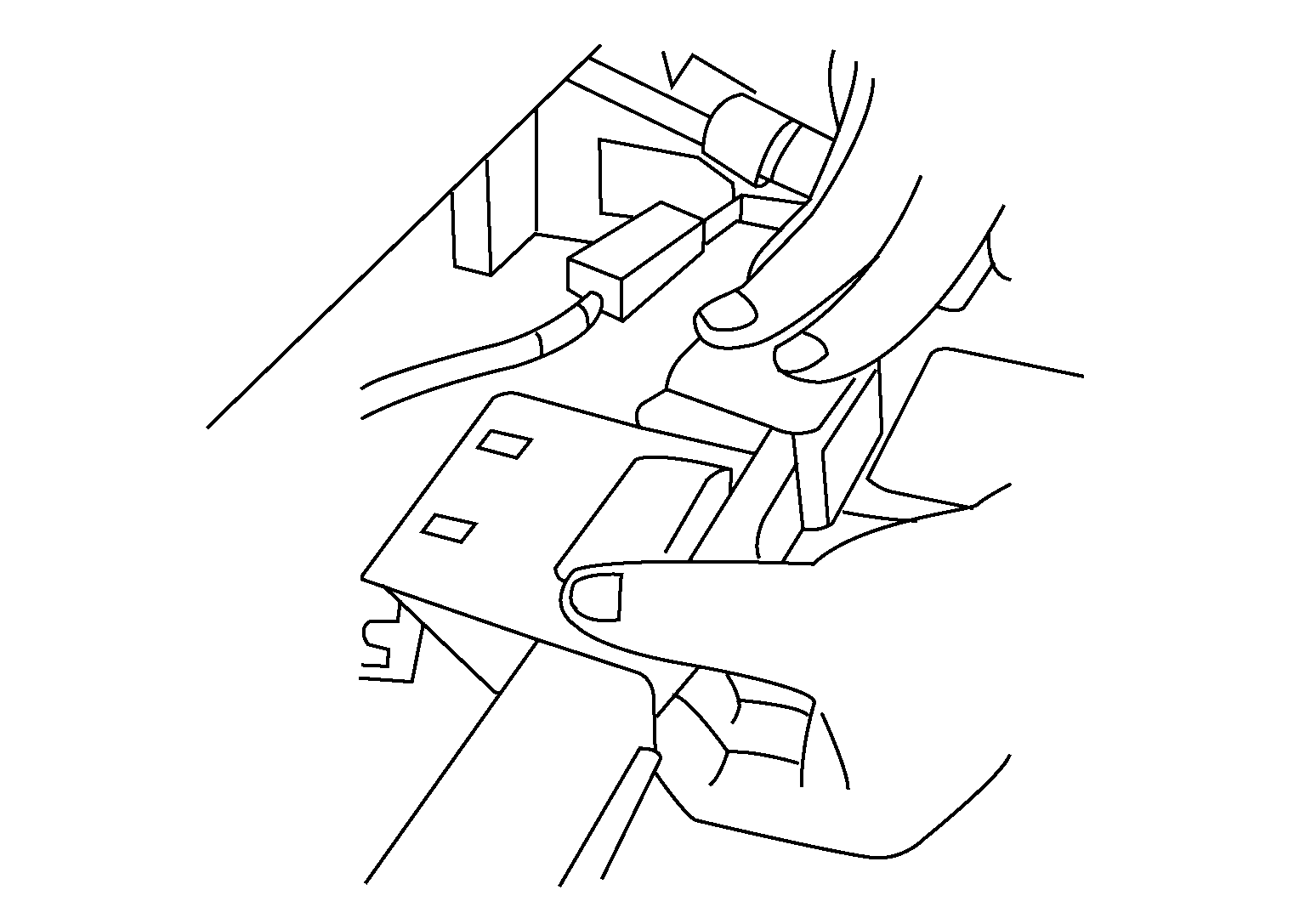

Snap the hinged strap retainer around the seat motor.

Fig 5: Attaching Hinged Strap Retainer Around Seat Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Replace the seat motor cover.

Fig 6: Removing Screws From Seat Motor Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Install the seat harness to the seat motor cover clips (A).

Fig 7: Identifying Seat Motor Cover Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Install the seat control unit and connect the seat control unit harness connectors.

Fig 8: Disconnecting Harness Connectors From Seat Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
Install the two front seat nuts.

Fig 9: Front Seat Nuts With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
