Removal and Installation - Power Seat Switch: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat assembly. Refer to "REMOVAL AND INSTALLATION - FRONT SEAT ASSEMBLY ".
Place the front seat assembly, back side down, on a work bench.
Release the trim at bottom of seat as shown below.

Fig 1: Locating Trim At Bottom Of Seat
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the seat recline knob and seat slide and lifter switch knob (1), then the power seat switch finisher (2).

Fig 2: Identifying Seat Recline Knob, Seat Slide And Lifter Switch Knob And Power Seat Switch Finisher
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the four seat cushion assembly bolts (A) from the seat frame assembly.

Fig 3: Identifying Seat Cushion Assembly Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

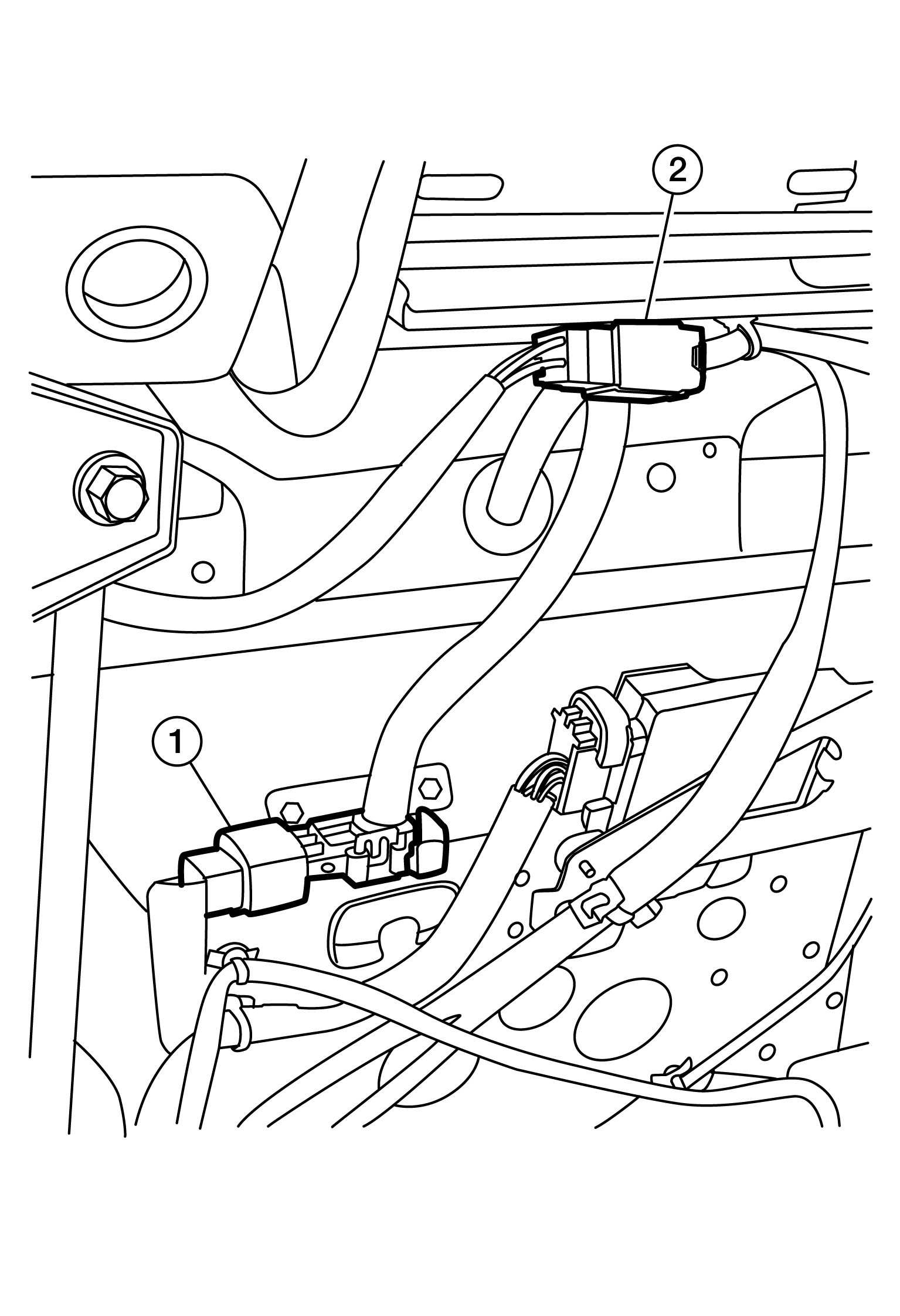

Disconnect the harness connectors for the occupant classification system (1) and the power seat switch (2).

Fig 4: Identifying Harness Connector For Occupant Classification System And Power Seat Switch
Courtesy of NISSAN NORTH AMERICA, INC.

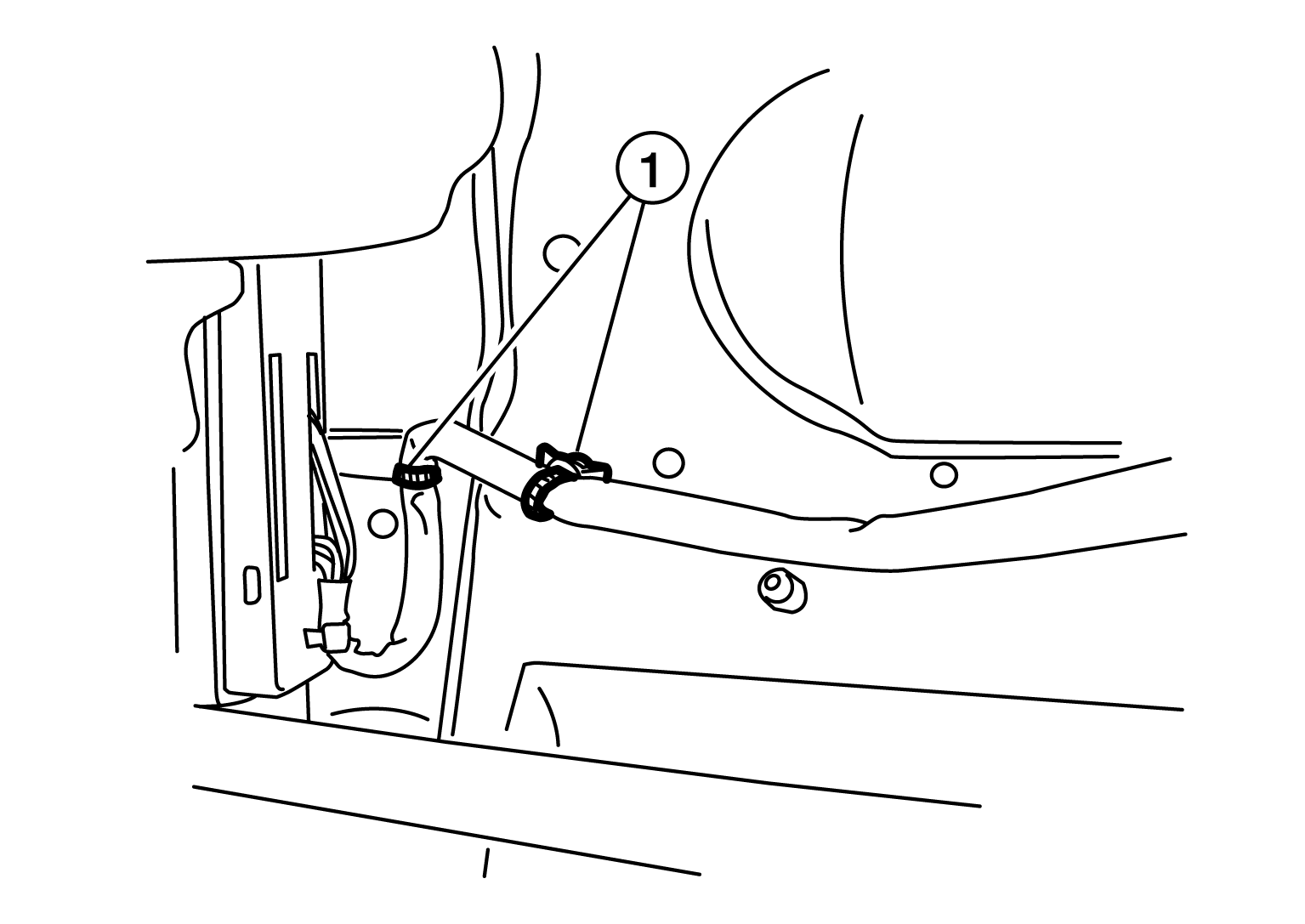

Release the two power seat switch harness clips (1) from the seat frame assembly.

Fig 5: Identifying Power Seat Switch Harness Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Release the seat cushion trim J-clip retainers on same side as power seat switch.
Remove the seat cushion outer finisher.

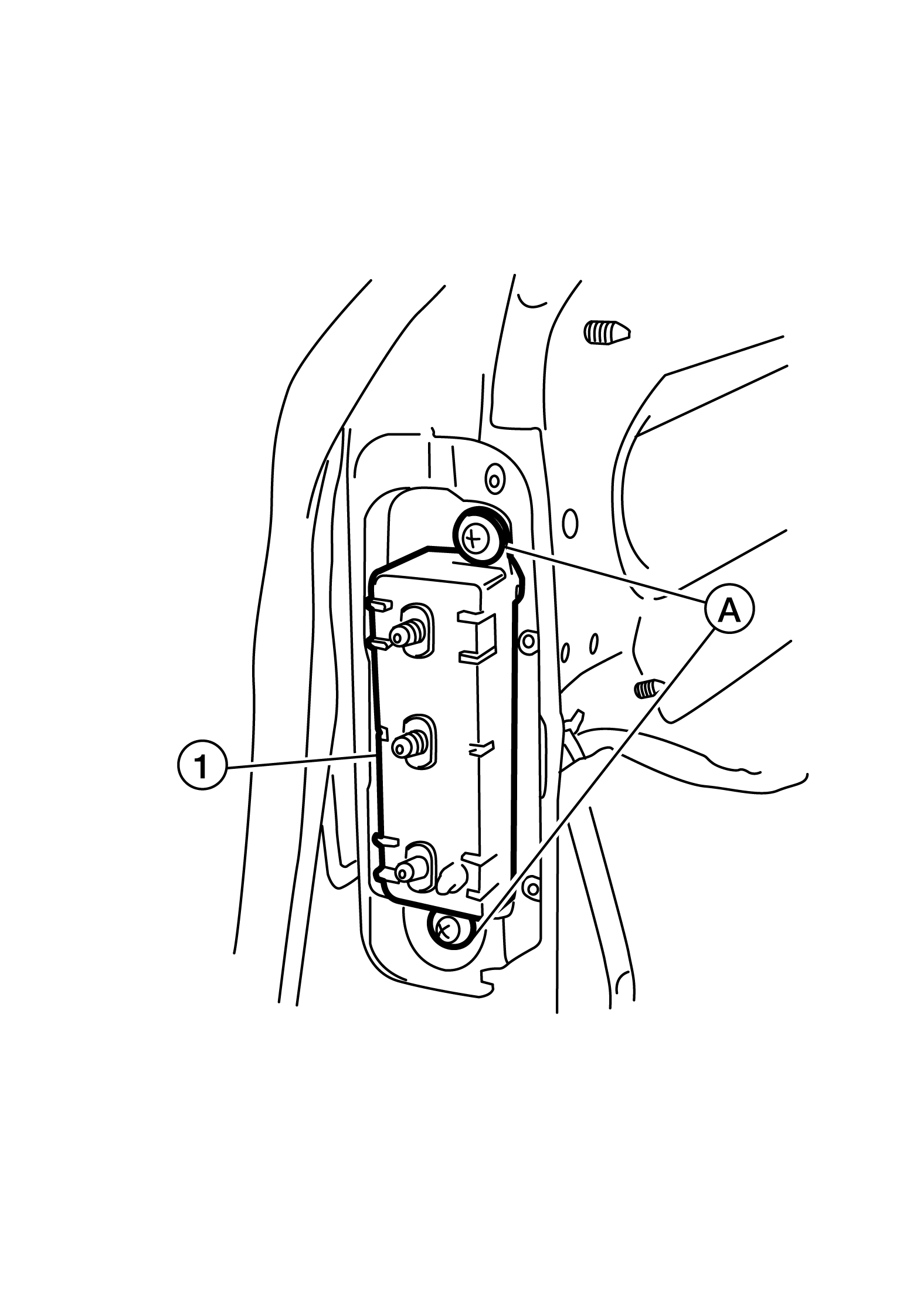

Remove the two screws (A) and the power seat switch (1).

Fig 6: Identifying Power Seat Switch And Mounting Screws
Courtesy of NISSAN NORTH AMERICA, INC.
