Inspection Flow

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

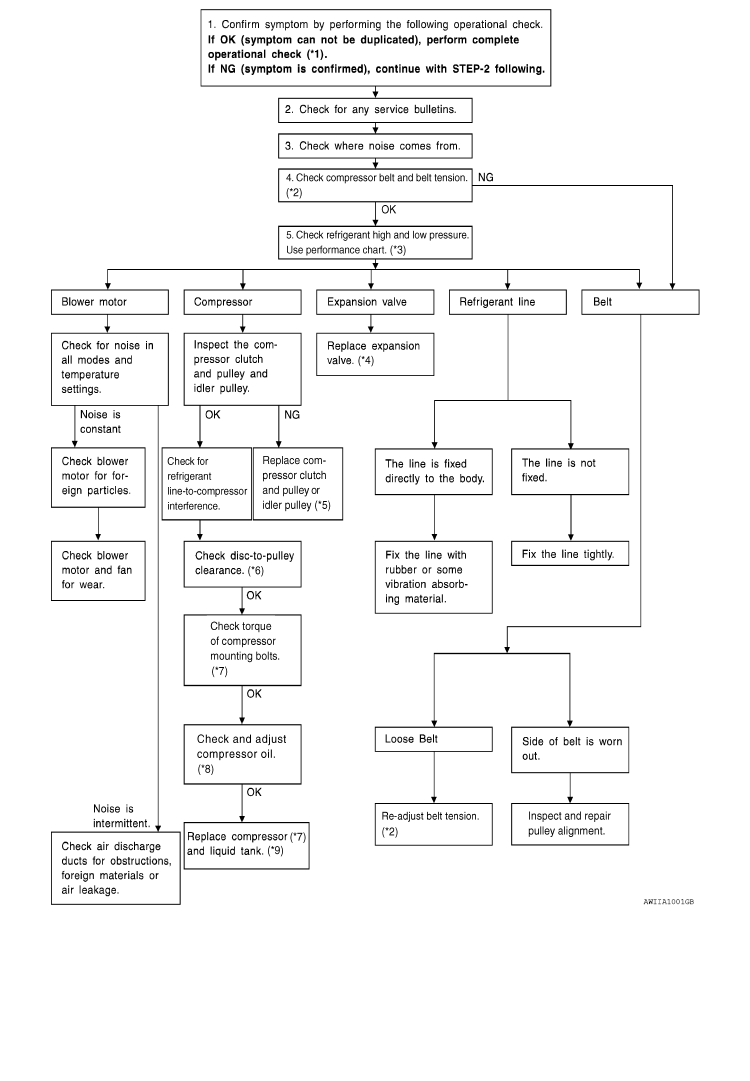

Fig 1: Noise Inspection Flow Chart
G08697532Courtesy of NISSAN NORTH AMERICA, INC.

Noise Inspection Flow Chart Footnotes

  1. Refer to Operational Check (Front)  or Operational Check (Rear)
  2. Refer to CHECKING DRIVE BELTS
  3. Refer to Performance Chart
  4. Refer to REMOVAL AND INSTALLATION - FRONT EXPANSION VALVE
  5. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH
  6. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH
  7. Refer to REMOVAL AND INSTALLATION
  8. Refer to MAINTENANCE OF OIL QUANTITY IN COMPRESSOR
  9. Refer to REMOVAL AND INSTALLATION
